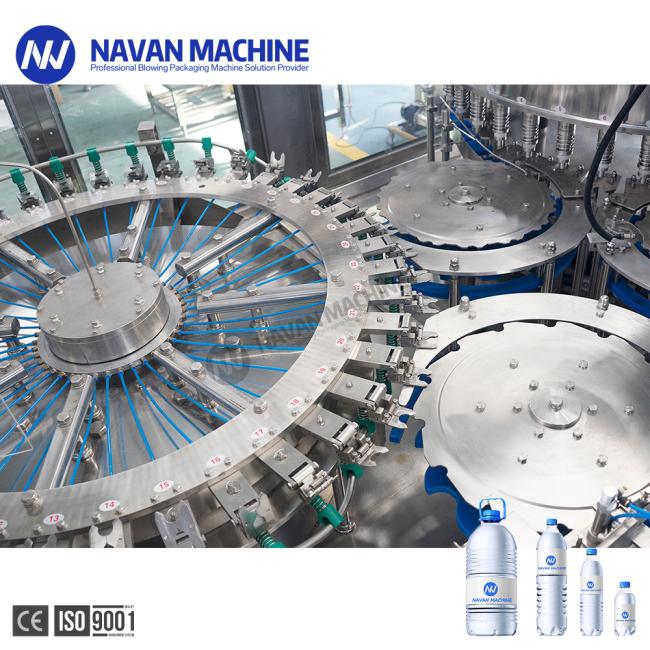

Automatic Small Scale PET Plastic Bottle Water Filling Machine For Drinking Water
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
20-45 Working Days After Receiving Your Deposit Payment
Brand:
NAVAN MACHINE
Product Description
Automatic Small Scale PET Plastic Bottle Water Filling Machine For Drinking Water
Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.
Product Paramenters:
| Model | CGF8-8-4 |
| Application | Spring water / mineral water / pure water / non-gas wine drink and so on |
| No. of Rinsing/Filling/Capping | 8-8-4 |
| Production Capacity(500ml) | 2500-3000BPH |
| Filling precision | ≤±5mm(liquid level) |
| User Ambient Conditions | Temperature:10~40℃; Humidity: No dew |
| Suitable bottle specification |
Volume=100-2500ml Diameter φ=50-115mm Bottle height H=150 ~350mm |
| Bottle type | Plastic bottle / PET Bottle |
| Bottle neck/Cap Style | Plastic Screw Cap φ=20-50mm |
| Machine material | Food stage SS304 OR SS316 |
| Air source pressure | 0.5~0.6Mpa |
| Filling way/principle | Gravity filling method |
| Control system | SIMENS PLC+ TOUCH SCREEN |
| Features | No Bottle No Filling No Bottle No Capping |
| Main Power | 1.9kw |
| Power Supply | Voltage:220V~480V,3phase; Frequency:50HZ/60HZ or your requirement |
| Overall dimensions (mm) | 1900*1420*2000 |
| Weight (kg) | 1500 |
| All machines could be customized , we could design and produce machines according to your request. | |
Characteristic:
1 - Enhanced food safety
2 - More customisation and design freedom
3 - Improved hygiene and efficiency
4 - Full process control with fewer operators
2 - More customisation and design freedom
3 - Improved hygiene and efficiency
4 - Full process control with fewer operators
5 - Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
6 - Automatic dummy bottles: Safer, easier cleaning procedures
7 - Automatic bottle changeover improves uptime
6 - Automatic dummy bottles: Safer, easier cleaning procedures
7 - Automatic bottle changeover improves uptime
Rinsing parts
Into bottle way is air conveyor direct connection with bottle dial.
Filling Parts
Filling volume adjustable in fine rank, same liquid level after filling.Efficient spray nozzle rinse thoroughly and save water for flushing.
Capping parts
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping.
NAVAN Machine.
Navan Industrial has invested its best resources in technical research, to design and realize innovative in bottle blowing, filling, capping , labeling and packing systems which enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years .At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development.Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response.
