Cattle Chicken Farm Animal Feed Storage Silos Hopper Bottom
PRODUCT DESCRIPTION
Animal Farming Livestock Feeding Equipment Feed Silo Of Automatic Feeding System
Animal farming livestock feeding equipment feed silo is widely used in modern farms. It can feed quantitatively and automatically according to different stages of aniaml's growth, so as to save feed, labor and improve labor productivity. Prevent personnel from entering the animal house, cut off the transmission route of the disease and ensure biological safety.
| Automatic Feeding System Feed Silo | Specification |
| Feed Silo | Hot galvanized steel |
|
Weighing system |
Alloy steel / stainless steel |
| Drive engine | Horizontal power box / vertical power box |
| Corner |
Shell: Nylon / aluminum alloy / stainless steel, inner wheel: Cast Steel |
| Chain feeding | Reinforced chain |
| Auger feeding | Auger imported from SA/auger made in China |
| Dispenser | 8L/6L |
| Joint | Paddle type / wire type |
| Customizable | |
ANIMAL farmING feed silo specification
Different sizes silo are available for matching different scales animal farming needs.
| Tonnage (T) | Volume (m³) | Diameter(mm) | Height(mm) | Layer | Leg | Weight (kg) |
| 1.7 | 2.7 | Φ1530 | 3420 | 1 | 4 | 238 |
| 2.7 | 4.1 | Φ1530 | 4236 | 2 | 4 | 282 |
| 3.6 | 6.4 | Φ2140 | 4325 | 1 | 4 | 370 |
| 5.4 | 9.3 | Φ2140 | 5141 | 2 | 4 | 434 |
| 7.3 | 12.2 | Φ2140 | 5957 | 3 | 4 | 495 |
| 11.5 | 15.8 | Φ2750 | 5336 | 2 | 6 | 637 |
| 13.8 | 20.6 | Φ2750 | 6152 | 3 | 6 | 700 |
| 15.5 | 23.11 | Φ3200 | 5809 | 2 | 6 | 777 |
| 17.1 | 25.5 | Φ2750 | 6968 | 4 | 6 | 921 |
| 22.5 | 29.63 | Φ3200 | 6622 | 3 | 6 | 950 |
| 24.05 | 36.15 | Φ3200 | 7435 | 3 | 6 | 1090 |
| 27 | 40.6 | Φ3669 | 7216 | 3 | 8 | 1221 |
| 32 | 49.1 | Φ3669 | 8032 | 4 | 8 | 1360 |
| Customizable | ||||||

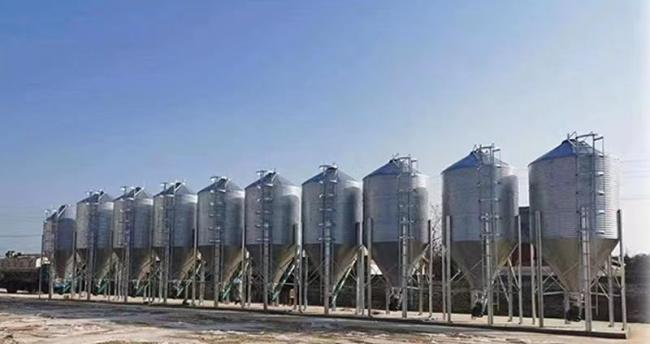

Project case
Farrowing House Automatic Feeding System
Fattening House Automatic Feeding System
Company Information
Purple Horn company is specializing in animal farming equipment production and selling. We are working on fulfilling the individual plant requirements of our customers every day. 130 employees in 8 departments from our factory and office take care that things run smoothly.
● Production site covers 11000 square meters
● Modern production equipment over 110 sets
● Production output 1000 tons/month
● Undertake large, medium and super large farm projects
Packing View
Purple Horn Animal Farming Service
We provide professional one-stop purchasing scheme of all different kinds of animal farm equipment, from penning equipment, feeding system, drinking system, farm accessory, etc.
Our service is available 24 hours to customers during the week as well as on weekends. This timeliness is very important for our clients because it is related with live animals.
Our modern stable construction technology systems from our in-house production take into account the special aspects of all production cycles so that your animals can develop magnificently.
