Aluminum Alloy Overhead Line Fittings Support Soft Conductors Twin Bundle Conductor
Aluminum Alloy Support Soft Conductors Twin Bundle Conductors Overhead Line Fittings

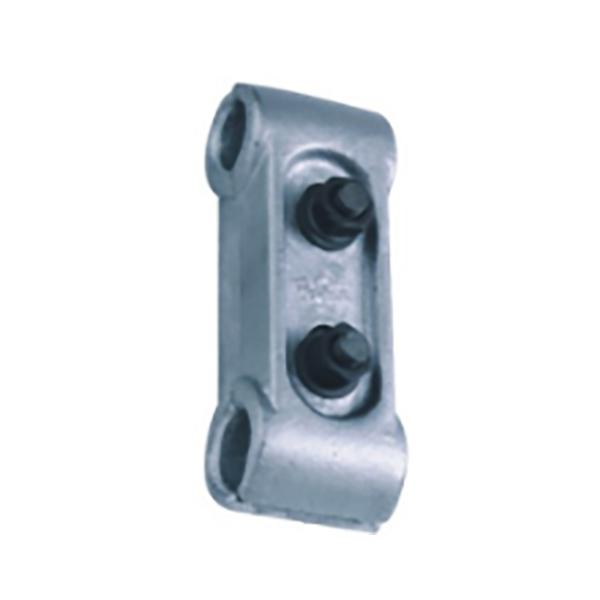

Overhead Line Fittings
It is widely used to support soft conductors in the substation and maintain the role of soft conductor spacing.
The body is made of aluminum alloy and the other parts are hot-dip galvanized steel;
Technical data sheet
|
Catalog No. |
(mm) Suitable Conductor dia. |

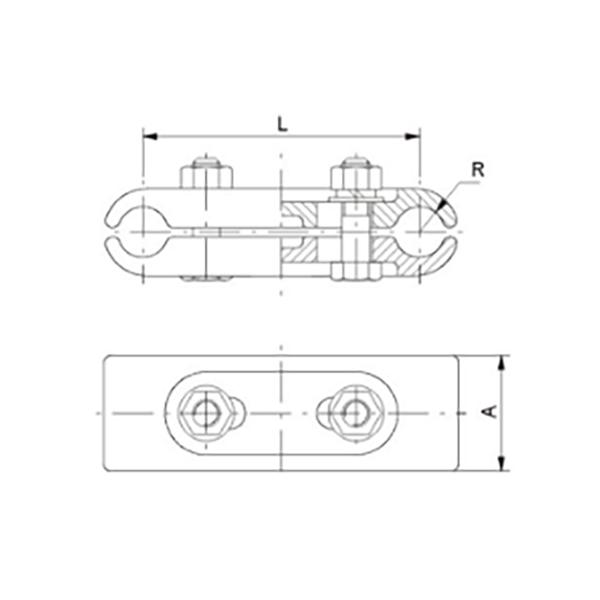

(mm)Dimensions | ||
| A | R | L | ||
| MRJ-4/120 | Φ18.1-22.0 | 50 | 11 | 120 |
| MRJ-5/120 | Φ23.0-29.0 | 60 | 14 | 120 |
| MRJ-6/120 | Φ29.1-35.0 | 70 | 17 | 120 |
| MRJ-4/200 | Φ18.1-22.0 | 50 | 11 | 200 |
| MRJ-5/200 | Φ23.0-29.0 | 60 | 14 | 200 |
| MRJ-6/200 | Φ29.1-35.0 | 70 | 17 | 200 |
| MRJ-4/400 | Φ18.1-22.0 | 50 | 11 | 400 |
| MRJ-5/400 | Φ23.0-29.0 | 60 | 14 | 400 |
| MRJ-6/400 | Φ29.1-35.0 | 70 | 17 | 400 |
| MRJ-9/120 | Φ45.0-49.0 | 60 | 24 | 120 |
| MRJ-9/200 | Φ45.0-49.0 | 60 | 24 | 200 |
| MRJ-9/400 | Φ45.0-49.0 | 60 | 24 | 400 |
| MRJ-10/200 | Φ50.0-55.0 | 70 | 26 | 200 |
| MRJ-10/400 | Φ50.0-55.0 | 70 | 26 | 400 |
Advantage:
1, LJ Brand Since 1985, a professional power fittings solution brand
2, Belongs to Power China, one of the FORTUNE GLOBAL 500
3, Our customers from over 30 countries
About us

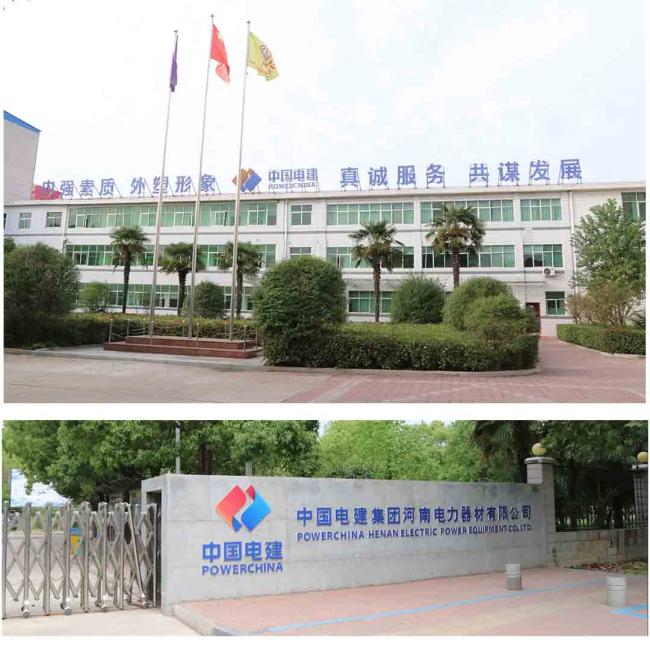

POWERCHINA Henan Electric Power Equipment Co., Ltd. is a subsidiary company of Power Construction Cooperation of China (POWERCHINA), one of the FORTUNE GLOBAL 500.
Professional customer service, product development, technical Support and after Sale Service.
POWERCHINA Henan Electric Power Equipment Co., Ltd, covering an area of 84000 square meters, was established in 1958.
POWERCHINA Henan Electric Power Equipment Co., Ltd has a total of more than 426 employees, including more than 128. engineers and technicians.
