Indoor Outdoor Aerial Cable Fitting Aluminum Pre Insulated Sleeve
Pre-Insulated Connecting Sleeve For Indoor And Outdoor Cables Aerial Cable Fitting
Aerial Cable Fitting

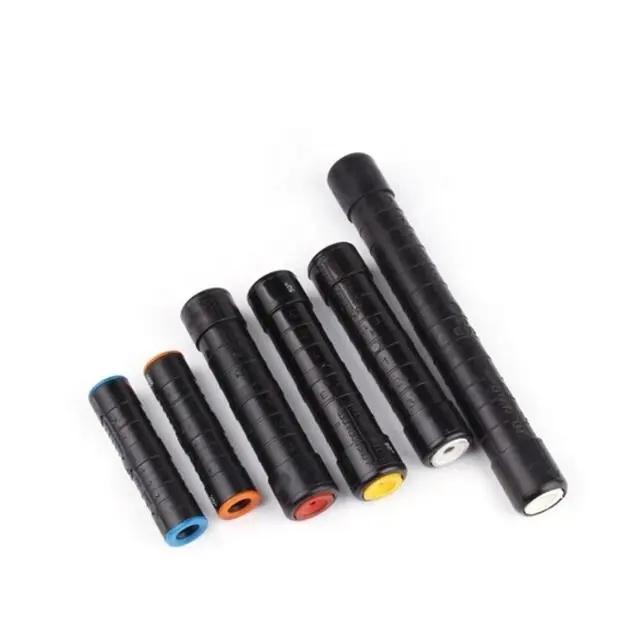

Pre-insulated sleeve is designed to connect the insulated cable (include ABC cable) in aerial distribution network. It is in accordance with NFC33-021.
• The sleeve is with some tension;
• And its cap can prevent the water into the barrel .It is colored differently to distinguish the cable sizes. Marked with type ,cable size ,die size ,inner cable length and number of crimping
• Material:Aluminum alloy
| Model | Cable Size (mm2) | Plastic Sleeve Diameter (mm) | Length (mm) | |
| A | B | C | L | |
| MJPT 16/16 | 16 | 16 | 20 | 98.5 |
| MJPT 25/25 | 25 | 25 | 20 | 98.5 |
| MJPT 35/35 | 35 | 35 | 20 | 98.5 |
| MJPT 50/50 | 50 | 50 | 20 | 98.5 |
| MJPT 70/70 | 70 | 70 | 20 | 98.5 |
| MJPT 95/95 | 95 | 95 | 20 | 98.5 |
| Model | Cable Size (mm2) | Plastic Sleeve Diameter (mm) | Length (mm) | |
| A | B | C | L | |
| MJPB 6/16 | 6 | 16 | 16 | 73.5 |
| MJPB 10/16 | 10 | 16 | 16 | 73.5 |
| MJPB 16/16 | 16 | 16 | 16 | 73.5 |
| MJPB 16/25 | 16 | 25 | 16 | 73.5 |
| MJPB 25/25 | 25 | 25 | 16 | 73.5 |
| Model | Cable Size (mm2) | Plastic Sleeve Diameter (mm) | Length (mm) | |
| A | B | C | L | |
| MJPTN 54.6/54.6 | 54.6 | 54.6 | 20 | 172.5 |
| MJPTN 54.6/70 | 54.6 | 70 | 20 | 172.5 |
| MJPTN 70/70 | 70 | 70 | 20 | 172.5 |
| MJPTN 95/95D | 95 | 95 | 20 | 172.5 |
Advantage:
1, LJ Brand Since 1985, a professional power fittings solution brand
2, Belongs to Power China, one of the FORTUNE GLOBAL 500
3, Our customers from over 30 countries
About us

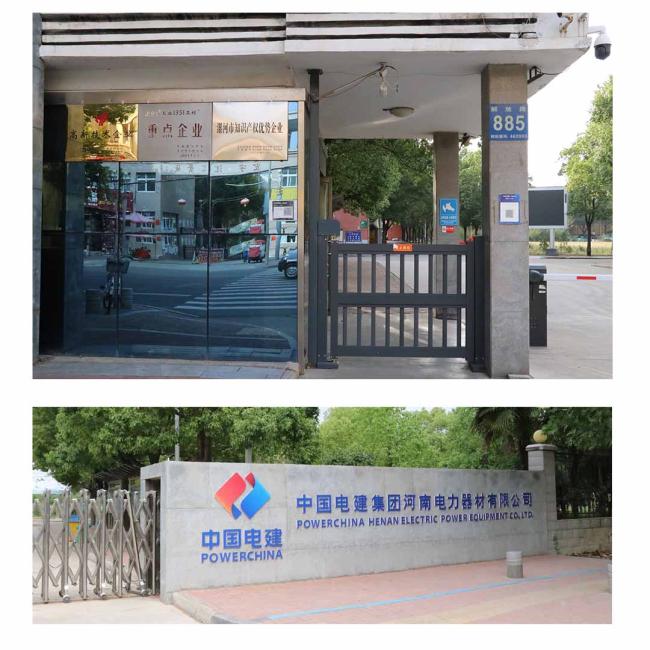

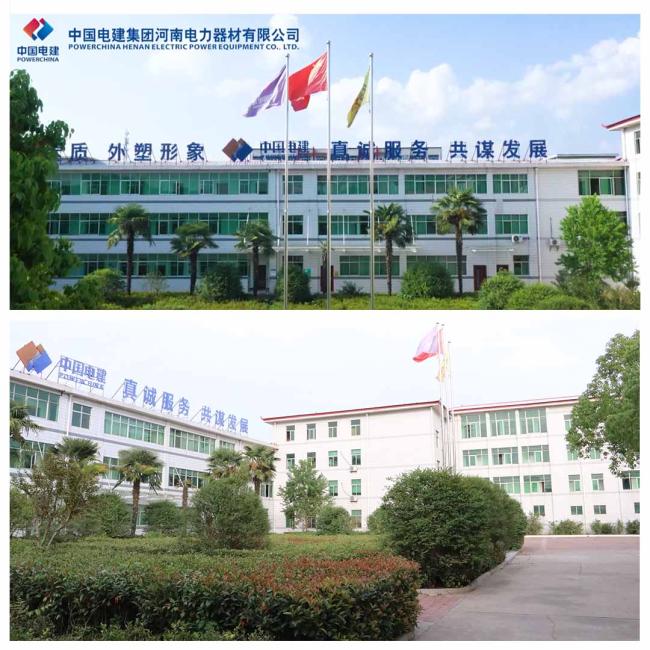

POWERCHINA Henan Electric Power Equipment Co., Ltd. is a subsidiary company of Power Construction Cooperation of China (POWERCHINA), one of the FORTUNE GLOBAL 500.
Professional customer service, product development, technical Support and after Sale Service.
POWERCHINA Henan Electric Power Equipment Co., Ltd, covering an area of 84000 square meters, was established in 1958.
POWERCHINA Henan Electric Power Equipment Co., Ltd has a total of more than 426 employees, including more than 128. engineers and technicians.
