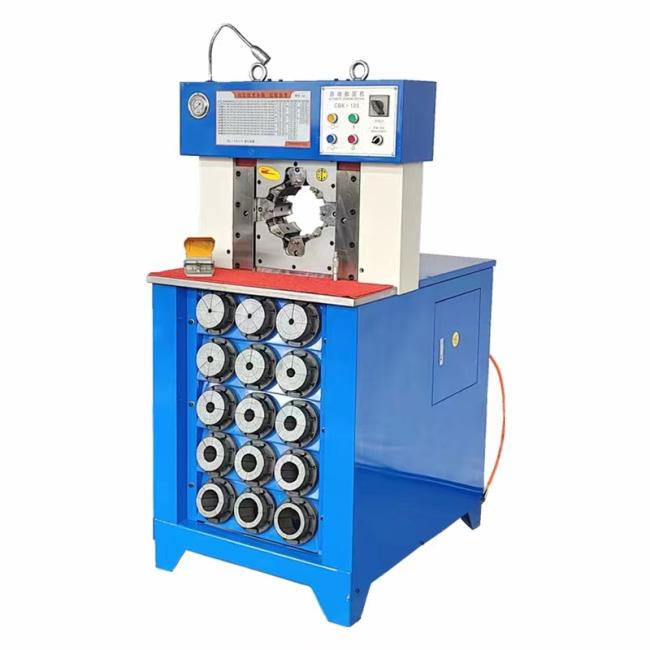

Car AC Hose Crimping Machine Heavy Duty Automotive Ac Crimping Tool
DESCRIPTION
FY-CBK-120 is the new type 2022.
It is capable of crimping hydraulic hose up to 3 inch and 2 inch 6SP stainless steel braided hoses. With super thin crimping head and vertical movement, it is the ideal choice for elbow fittings.
ADVANTAGES
► Advanced control system, high stability and productivity
► Quick die installing, make crimping more easily and save time
► Double use foot pedal, free both of the hand for carrying big or heavy work piece
TECHNICAL DATA
| Model | FY-CBK-120 AC Hose Crimping Machine |
| Crimping Range | 6-76(mm) |
| Crimping Force | 1500(T) |
| Hose Size | 1/4-3(inch) |
| Max. Opening | 158(mm) |
| Die Sets | 15 |
|
The Max Open Tolerance
|
+53mm
|
| System Pressure | 31.5(Mpa) |
| Accuracy | 0.01(mm) |
|
Output Volume Of Pump
|
10L/16L |
| Standard Voltage | 380(V) |
| Motor Power | 5.5(KW) |
| Length | 1000(mm) |
| Width | 800(mm) |
| Height | 1630(mm) |
| Weight |
1250(KG) |
