ZC-520T GPON ONT CATV ONU 1GE 3FE 1POTS WIFI WDM AGC For FTTx Solutions
Zikun CATV ONU ZC-520T GPON ONT with 1GE+3FE+1CATV+1VOIP+WiFi
ZC-520T is a fast, convenient, flexible, secure and highly integrated GPON broadband connection device. It provide 3FE +1 GE interface, 1CATV interface,1 VOIP interface , and 1 WiFi interface, it’s very suitable for home and small business users and can meet the requirements of FTTH high speed data transfer.
Tips: Accept OEM/ODM service;
Compatible with other mainstream brand OLT;
Can Access the onu through http/telnet from LAN&WAN-side
Features
- Integrated GPON port, conform with ITU-T G.984 standard;
- Services effectively, provide 10/100/1000M RJ45 network interface, update existing networks smoothly;
- The Dynamic Bandwidth Allocation (DBA) mechanism enables all users to share the bandwidth reasonably, guarantee the QoS;
- Support IGMP multicast, make use of the bandwidth effectively;
- Support multicast VLAN;
- Support OMCI management protocol, including configuration, alarm, performance monitor, fault isolation and security management etc, support remote management through OLT;
- Support FEC and DBA;
- Support IEEE802.1Q VLAN protocol;
- Support IEEE802.1p protocol;
- Support remote loopback and network status diagnosis;
- Support cyber storm control.
Specifications
| Model | ZC-520T |
| User interface | 3*10/100M RJ45,1*10/100/1000M RJ45,1*CATV,1*VOIP, 1*WiFi |
| PON |
Transmission speed :upstream 1.25Gbps /downstream 2.5Gbps Network coverage radius: 20km Optical receive sensitivity: ≥-28dBm Luminous power: <0dBm Security: ONU authentication mechanism |
| WiFi | IEEE 802.11b/g/n WIFI((300Mbps) |
| Protocol |
Compliant with IEEE 802.3ah YD/T 1475-2006 IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1b/g/n IEEE 802.1w, RSTP IEEE 802.3ad (LACP) Ethernet–II, Ethernet-SNAP |
| VLAN |
Port-based VLAN GVRP IEEE 802.1Q VLAN |
| QoS |
Backpressure flow control(half-duplex) IEEE 802.3x flow control(full-duplex) Prevent head of line WR, SP queue scheduling algorithm Port rate limit |
| Security |
IEEE 802.1x, access control based on port; support local and remote RADIUS CHAP,EAP certification Storm control, port protection |
| Management |
Support various management modes such as Web, TELNET Support debug function |
| Environment |
Operating temperature: 0℃～60℃; Operating humidity: 10%～85% (no-condensation) |
|
Storage temperature: -40℃～80℃; Storage humidity: 5%～95% (no-condensation) |
|
| Power supply |
Input AC 110～240V Output DC 12V/1A |
|
PowerConsumption |
12W |

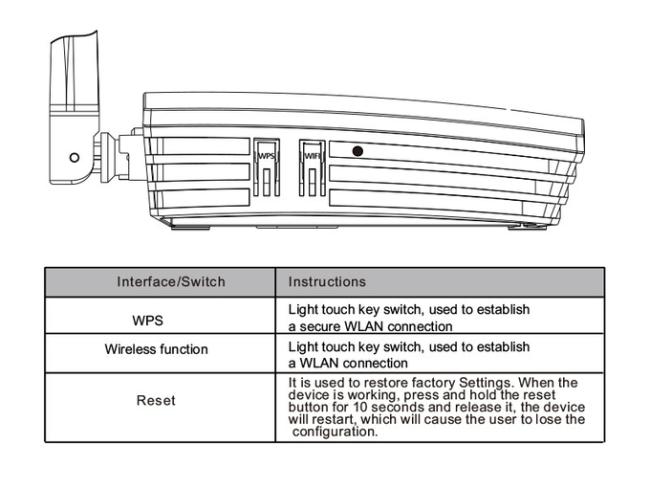

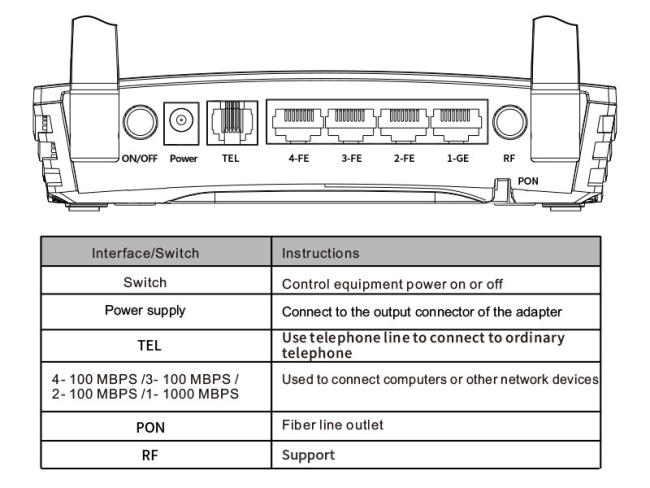

Product interface and LED definitions
