240-700 TPH Throughput Roller Screening Machine Sieve Aggregates With Different Particle Sizes
240-700 TPH Throughput Roller Screening Machine Sieve Aggregates With Different Particle Sizes
Product Description
This equipment is called Roller Screening Machine, and the model is XCDRS1010. It is an essential equipment in the mine transportation and screening system. The Roller Screening Machine can improve the working efficiency of the crusher and reduce the electric energy consumption and metal wear of the crusher. It has strong adaptability to ores, especially for ores with high water content, and is not easy to cause material blockage.
This Roller Screening Machine has a width of 1000mm, with 10 toothed rollers, and the tooth shape is "plum shape". Its material throughput is between 240-700 tons per hour, which is suitable for the ore screening site of small and medium-sized mines.
Technical Reference Data
| Model | Roll surface width (mm) | Number of axes | Throughput (t/h) | Feed side length (mm) | Roll shaft clearance (mm) | Screening efficiency (%) | Installed power | Flap drive push rod (optional for for electro hydraulic users) | |||
| Power (kw) | Number | Model | Thrust (kgf) | Power (w) | |||||||
| XCDRS1008 | 1000 | 8 | 200-550 | ≤500 | 25-100 | 80 | 2-4 | 8 | DT or DTY | 300 | 370 |
| XCDRS1010 | 10 | 240-700 | 85 | 3-3.5 | 10 | ||||||
| XCDRS1012 | 12 | 300-850 | 90 | 12 | |||||||
| XCDRS1408 | 1400 | 8 | 420-1000 | ≤700 | 35-120 | 80 | 8 | DT or DTY | 500 | 750 | |
| XCDRS1410 | 10 | 520-1280 | 85 | 3-7.5 | 10 | ||||||
| XCDRS1412 | 12 | 650-1500 | 90 | 12 | |||||||
Note: The production capacity in the table is based on the minerals whose feed size is smaller than the feed side length, and the loose density is 1.6t/m ³ (Stone density is 2.7t/m ³). Based on continuous and uniform feeding of medium hardness rock.

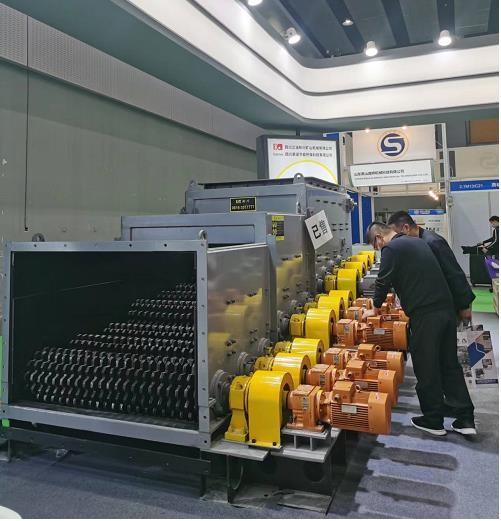

Equipment Display
