Anti Blocking Coal Screening Machines 200 To 550 TPH Medium Bearing Capacity
Coal Screening Roller Screening Machine Medium Bearing Capacity 200-550 TPH Output
Equipment Description
The Roller Screening Machine is a screening equipment with high screening efficiency and good screening effect, and its application range is very wide. It can replace the vibrating screen and improve the working efficiency of the whole crushing production line.
This Roller Screening Machine is mainly composed of frame, lining plate, reduction motor, roller shaft assembly (eight shafts and several teeth), bearing, cleaning device, anti-blocking signal, etc. The Roller Screening Machine has stable performance and good working performance.
The drive mode of this Roller Screening Machine can be divided into unilateral drive and bilateral drive, and can also be split type. Customers can choose according to their own needs.
Technical Reference Data
| Model | Roll surface width (mm) | Number of axes | Throughput (t/h) | Feed side length (mm) | Roll shaft clearance (mm) | Screening efficiency (%) | Installed power | Flap drive push rod (optional for for electro hydraulic users) | |||
| Power (kw) | Number | Model | Thrust (kgf) | Power (w) | |||||||

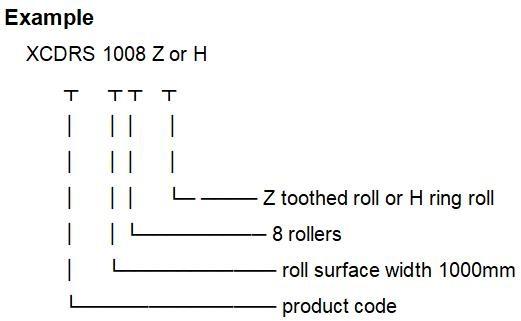

| XCDRS1008 | 1000 | 8 | 200-550 | ≤500 | 25-100 | 80 | 2-4 | 8 | DT or DTY | 300 | 370 |
| XCDRS1010 | 10 | 240-700 | 85 | 3-3.5 | 10 | ||||||
| XCDRS1012 | 12 | 300-850 | 90 | 12 | |||||||
| XCDRS1408 | 1400 | 8 | 420-1000 | ≤700 | 35-120 | 80 | 8 | DT or DTY | 500 | 750 | |
| XCDRS1410 | 10 | 520-1280 | 85 | 3-7.5 | 10 | ||||||
| XCDRS1412 | 12 | 650-1500 | 90 | 12 | |||||||

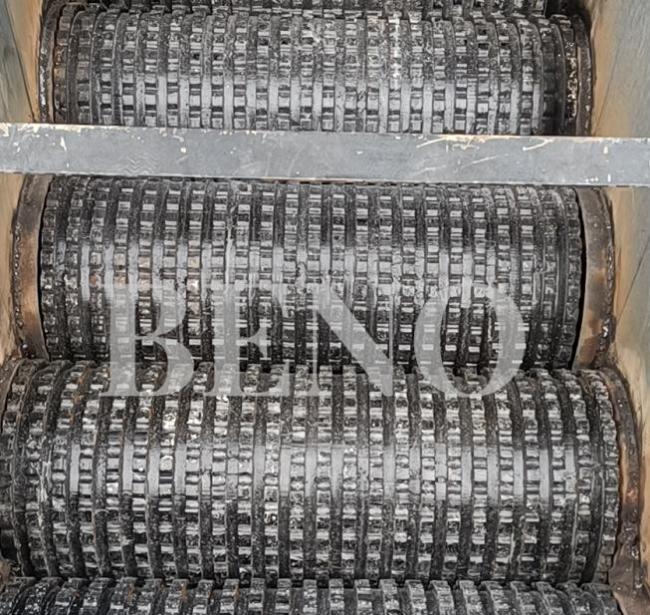

Picture Display
