420-1000 TPH Throughput Roller Screening Machine Vibration Free Operation

Product Description

The Roller Screening Machine uses a single motor to drive a single shaft to drive the material to move forward along the roll face, and the material falls on the roll surface with an inclination design (feeding section) and is quickly dispersed and layered.

According to the needs of customers, we will adjust the roller shaft clearance of this Roller Screening Machine before leaving the factory, so that when the Roller Screening Machine is in operation, materials with the required grain size can be retained to enter the next link, and objects smaller than the clearance value will fall onto the lower leather belt with the rotation of the roller shaft and be transported out.

Equipment Characteristics

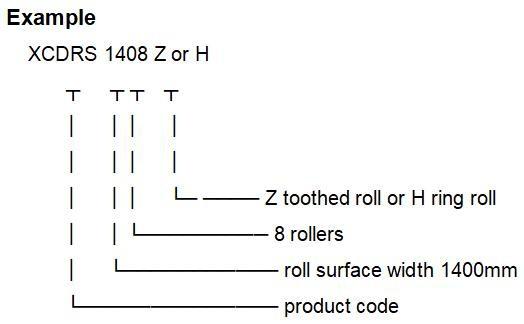

1. This Roller Screening Machine has 8 roll shafts, the roll surface width is 1400 mm, and the output is 420-1000 tons per hour.

2. This Roller Screening Machine has 8 motors, each with a power of 3-5.5 kW.

3. The feed side length of this Roller Screening Machine is less than 700 mm, and the adjustable range of roller shaft clearance is 35-120 mm.

4. The screening efficiency of this Roller Screening Machine can reach 80%.

Technical Reference Data

Picture Display
