Customized Double Roller Crusher 200TPH 300 TPH Roll Mill Crusher
200-300 TPH Double Roller Crusher Customized Low Energy Consumption
Product Description
The Double Roller Crusher is a modification of the original limestone roller mill. The wear parts are still composed of double rods, and the crushing is done by using the special tooth profile developed. The size and quantity of the tooth pieces can be selected according to the feeding particle size, and the gap between the two rollers can also be adjusted according to the finished material specifications you need. Due to the material properties of wear parts, Double Roller Crusher is only suitable for soft rock crushing.
There are many models of this series of products, and they are frequently used in coal, chemical, cement, sand and gravel aggregate industries.
Technical Reference Data
| Model | Diameter of roller (mm) | Length of roller (mm) | Maximum side length of feeding material (mm) | Grain size of discharging material(mm) | Production capacity (t/h) | Power (kw) | Soft connection weight (t) | Direct connection weight (t) |
| XCMD500 | 500 | 1000 | ≤100 | ≤30-60 | 50-120 | 37*2 | 9.5 | 8.2 |
| 1500 | 100-180 | 45*2 | 11.8 | 10.5 | ||||
| 2000 | 150-220 | 90*2 | 14.5 | 12.8 | ||||
| 2500 | 200-300 | 110*2 | 18 | 16.3 | ||||
| XCMD650 | 650 | 1000 | ≤120 | ≤30-60 | 50-130 | 45*2 | 12.3 | 10.5 |
| 1500 | 100-255 | 55*2 | 18.5 | 16 | ||||
| 2000 | 200-350 | 75*2 | 23 | 21 | ||||
| 2500 | 350-450 | 90*2 | 28 | 25 | ||||
| XCMD750 | 750 | 1000 | ≤140 | ≤40-70 | 150-250 | 55*2 | 23 | 21 |
| 1500 | 200-350 | 75*2 | 26.5 | 24.5 | ||||
| 2000 | 250-450 | 90*2 | 30 | 27.2 | ||||
| 2500 | 350-550 | 110*2 | 33.8 | 30.8 | ||||
| XCMD850 | 850 | 1000 | ≤160 | ≤40-70 | 150-300 | 75*2 | 26 | 23.5 |
| 1500 | 200-400 | 90*2 | 31.5 | 28.5 | ||||
| 2000 | 300-500 | 110*2 | 36 | 33 | ||||
| 2500 | 350-650 | 132*2 | 39 | 36 | ||||
| XCMD1000 | 1000 | 1000 | ≤220 | ≤40-80 | 250-450 | 90*2 | 46.8 | 41 |
| 1500 | 350-550 | 110*2 | 52 | 46.2 | ||||
| 2000 | 500-700 | 132*2 | 58 | 52.5 | ||||
| 2500 | 650-800 | 160*2 | 65 | 60 | ||||
| XCMD1200 | 1200 | 1500 | ≤250 | ≤40-90 | 650-900 | 160*2 | 81 | 73 |
| 2000 | 750-1100 | 185*2 | 93 | 85 | ||||
| 2500 | 900-1500 | 220*2 | 106 | 98 |

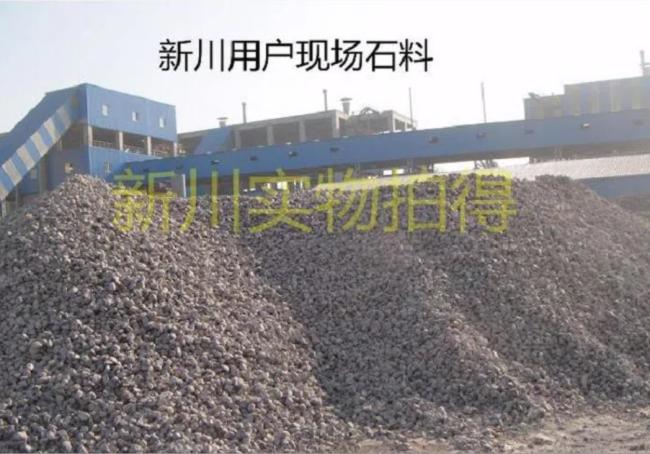

Finished Stockpile
