70 TPH Industrial Apron Conveyors High Impact Material Applicability

Price Negotiable

Price: USD 79,863.01-94,032.26 one set

MOQ: 1 set

Delivery Time: 35 days

Brand: BENO

Product Description

70-200 TPH Output Apron Plate Feeder Strong Material Applicability

Equipment Description

The Apron Plate Feeder drives the coupling shaft to rotate through the driving device (motor), and the sprocket with teeth engages to drive the chain to move, so as to drive the material forward and complete the purpose of conveying and feeding.

Apron Plate Feeder is an auxiliary equipment for transportation machinery. It is used for continuous and uniform feeding from the silo to the primary crusher in the crushing and grading workshop of large concentrators and in the cement, building materials and other departments. It can also be used for short-distance transportation of materials with large particle size and specific gravity.

Technical Reference Data

Model	Chain plate width (mm)	plate chain length (mm)	Maximum feed side length (mm)	Production capacity (t/h)	Chain speed (r/min)	Power (kw)	Weight (t)
XCBW8005	800	5000	≤400	50-150	0.05-0.2	7.5	13.8
XCBW1006	1000	6000	≤450	70-200	0.05-0.2	11	17.5
XCBW1008		8000				15	20
XCBW1010		10000				15	22.8
XCBW1013		13000				18.5	26.5
XCBW1206	1200	6000	≤650	120-280	0.05-0.2	18.5	21
XCBW1208		8000				18.5	23.8
XCBW1210		10000				22	25.6
XCBW1212		12000				22	28.5
XCBW1506	1500	6000	≤800	200-600	0.05-0.2	22	26.5
XCBW1508		8000				22	29.5
XCBW1513		13000				30	36.8
XCBW1608	1600	8000	≤850	220-680	0.05-0.2	37	31.3
XCBW1810	1800	10000	≤850	280-820	0.05-0.2	37	38.6
XCBW2008	2000	8000	≤1000	330-980	0.05-0.2	45	42.8

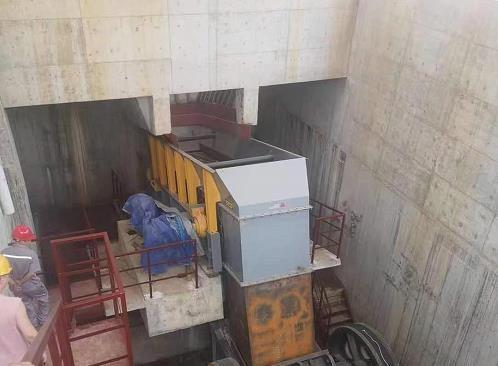

Installation Site
