18 To 30TPH Limestone Cone Crusher Machine Low Rotating Speed
Price:
USD 37,808.22-44,516.13 one set
MOQ:
1 set
Delivery Time:
30 days
Brand:
BENO
Product Description
Limestone Crushing Cone Crusher 18-30 TPH yield Low Speed Operation
Equipment Description

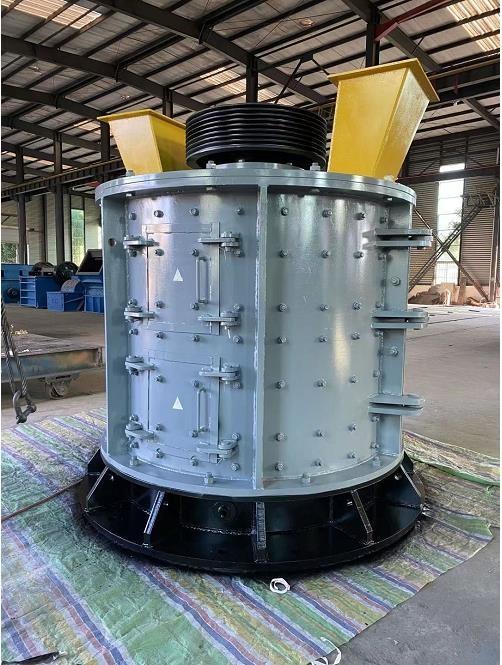

This equipment is a new type of stone making equipment produced by our company based on the improvement of the original low-speed vertical shaft cement crusher technology, called mechanical Cone Crusher, which is often used in the three-stage crushing of limestone.
The mechanical Cone Crusher is mainly composed of the main body, main shaft, drum assembly, driving gears, dynamic/static crushing plate, reducer, motor and other components.
The feeding side length of this Cone Crusher is less than 100mm. Take limestone as an example, the feeding particle size of this equipment is less than 50mm and the discharging particle size is less than 30mm. The output is 35-60 tons per hour, the rotating speed is low, and the crushing effect is better. The weight of this model of Cone Crusher is 9.2 tons.
Technical Reference Data
| Model | Maximum feed side length (mm) | Average feed size (mm) | Discharge port adjustment range (mm) | Production capacity (t/h) | Power (kw) | Rotating speed (r/min) | Weight (t) | ||||
| Clinker | Limestone | Clinker | Limestone | Clinker | Limestone | Clinker | Limestone | ||||
| XCLA-1200 | ＜100 | ≤50 | ≤40 | ≤5 | ≤30 | 10-15 | 18-30 | 11 | 15-18.5 | 8-25 | 6.5 |
| XCLA-1600 | ＜100 | ≤50 | ≤50 | ≤5 | ≤30 | 15-25 | 35-60 | 15 | 18.5-22 | 8-25 | 9.2 |
| XCLA-1800 | ＜110 | ≤50 | ≤60 | ≤5 | ≤30 | 25-35 | 65-100 | 18.5 | 22-30 | 8-25 | 12.6 |
| XCLA-2400 | ＜125 | ≤50 | ≤70 | ≤5-8 | ≤30 | 40-50 | 120-175 | 30-37 | 37-45 | 4-18 | 19.8 |
| XCLA-3200 | ＜150 | ≤50 | ≤80 | ≤5-10 | ≤30 | 58-90 | 150-200 | 45-55 | 55-75 | 3-18 | 26.5 |
