Electro Chemistry Medium Large Sodium Hypochlorite Generator Skid Mounted
Medium Large Sodium Hypochlorite Generator
How it works
The Chlory® Electro-Chemistry technology to design a fully integrated and skid mounted sodium hypochlorite generator to produce 0.8% strength sodium hypochlorite solution in range: 556lb (250kg) – 4500lb (2,000kg) NaOCl/day by brine electrolysis process.
Electro-Chemistry Electrode Reaction
Anode: 2Cl–2e- → Cl2 cathode: 2H2O + 2e- → H2 + OH- Total Reaction: 2NaOH + Cl2 → NaCl + NaClO + H2O
How it installs
Chlory® Skid-Mounted machine provide minimal operator attention for a quick Plug-Play running to produce NaCLO and dosing on site. Installation Steps: (1)Connect to the water supply pipeline; (2)Connect the chlorination pipeline; (3)Install hydrogen exhaust pipe; (4)Switch on the power supply.

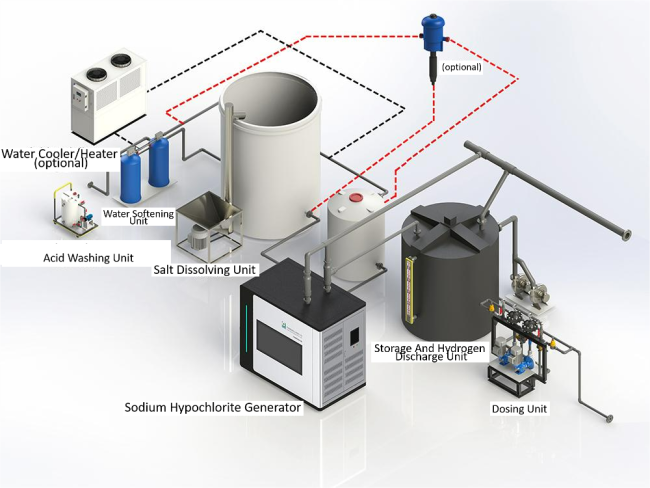

1.Water Softener 2.Water Chiller (Optional) 3.Salt Saturator 4.Pumps 5.Electrolyzer 6.Rectifier 7.PLC Contraol Panel 8.Remote Online control 9.Storage Tank 10.Air blower 11.Dosing Pump 12.Acid Washing Package
Specifications
| GBS-1K-NACLO | GBS-5K-NACLO | GBS-10K-NACLO | GBS-20K-NACLO | GBS-50K-NACLO | GBS-80K-NACLO | |
| Chlorine Capacity | 1.0kg/hr | 5.0kg/hr | 10.0kg/hr | 20.0kg/hr | 50.0kg/hr | 80.0kg/hr |
| Water treatment Capacity(At 1ppm dosing)20MLD | 20MLD | 100MLD | 200MLD | 400MLD | 1000MLD | 1600MLD |
| Salt Consumption | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 |
| Power Consumption | 4.0kw/kg Cl2 | 4.0kw/kg Cl2 | 4.0kw/kg Cl2 | 4.0kw/kg Cl2 | 4.0kw/kg Cl2 | 4.0kw/kg Cl2 |
| Concentration of HYPO | 8000ppm | 8000ppm | 8000ppm | 8000ppm | 8000ppm | 8000ppm |
| Production Flow Rate | 125L/hr | 625L/hr | 1250L/hr | 2500L/hr | 6250L/hr | 10000L/hr |
ABOUT US
Established for 20 years save more than 10000 customers
The total amount of chlorine produced per day is 120,000
Chlory was established in 2001. It has a history of 20 years and is committed to the production of products in the field of water disinfection; it specializes in Electro Chlorination Technology, including: electrolytic hypochlorous acid neutral-anolyte generator, electrolytic sodium hypochlorite generators, chlorine dioxide generators, electrochemical water treatment systems and other related water treatment technology company that deals with R&D, production and service of processing equipment.
The electrolytic sodium hypochlorite generator produced by the company started its project in 2009 and was launched in 2014; “Safe, stable and environmentally friendly” products are the source of our technological innovation.Continuously improve product technology from the perspective of users; obtain national patents every year. Different types of integration can meet the needs of different users. Participated in the preparation of “GB28233-2020 (Hygienic Requirements for Sodium Hypochlorite Generator)”.
