Impedance BGA PCBA Circuit Board Production For Air Cooler

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 5-10 days for delivery

Brand: JIETENG

Product Description

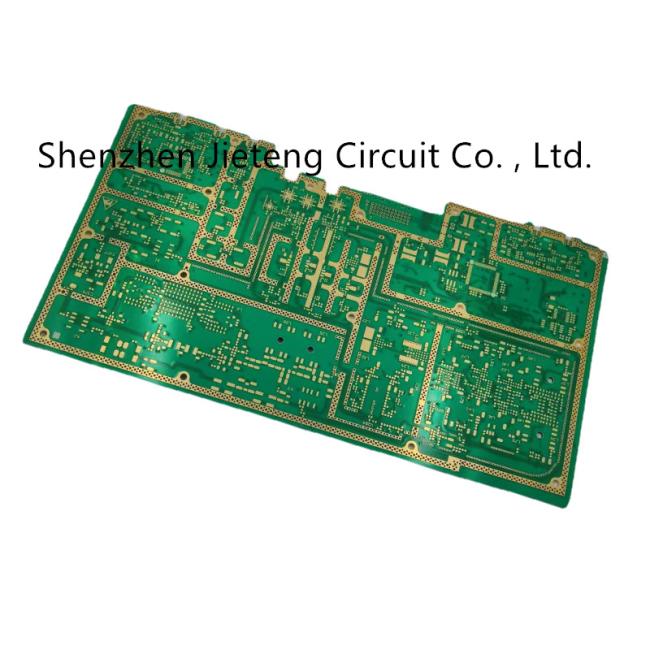

PCBA circuit board, Mobile Power PCB board home appliances Bluetooth audio circuit BGA impedance circuit board

Essential details

Model Number:: 1103R04024A

Place of Origin:: Guangdong, China

Brand Name:: JIETENG

Base Material:: FR4, CEM1, CEM3, PI, etc

Copper Thickness:: 18-140um

Board Thickness:: 0.3-7.0mm

Min. Hole Size:: 0.1-0.2mm

Min. Line Width:: 3/3mil

Min. Line Spacing:: 3/2.5mil

Surface Finishing:: LF-HASL, OSP, ENIG, etc.

Board Size:: 508mm*640mm,610mm*1400mm

Product name:: Multilayer PCB

Layer:: 1-56 Layers

Application:: Electronics Device

Solder mask:: Green. Red. Blue. White. Black.Yellow

Certificate:: ISO9001/ISO14001/ISO13485/TF16949

MOQ:: 1pcs

Special Request:: Impedance Control+BGA

Item	Standard(mass production)	Advanced(Sampling)
Layers	1-28Layer	30-100Layer
Final Board Thickness	0.3-3.2mm	0.15-7.0mm
Max. Panel Size	508*640mm	610*1400mm
Material	CEM-3, FR-4, (High CTI, Halogen Free, high frequency), Metal base, Ceramic, Glass base.	CEM-3, FR-4, (High CTI, Halogen Free, high frequency), Metal base, Ceramic, Glass base.
Material Supplier	KB, SY, NY, ITEQ, TUC	Rogers, Arlon, Taconic, Nelco...
Surface Finish	LF-HASL, OSP, ENIG, Immersion Silver, Immersion Tin	LF-HASL, OSP, ENIG, Immersion Silver, Immersion Tin
Impedance Control	±10% ohm	±10% ohm
Min. Line Width/Space	3/3mil	3/2.5mil
Max. Aspect Ratio	10: 1	30:1
Copper Thickness	18um, 35um, 70um, 105um, 140um	140um(inner layer)-280um(outer layer)
Min. Finshed Hole Size	0.2mm	0.1mm
Soler Mask	Green, white, black, grey, blue(dark-blue, light-blue), pink, organge, Purple, red, yellow	Green, white, black, grey, blue(dark-blue, light-blue), pink, organge, Purple, red, yellow

DIP HDI Green Circuit Board PCB Design HASL Lead Free

24 Layer Customized Printed Circuit Boards , 1oz Double Sided Pcb Assembly

FR4 CEM1 CEM3 Hight TG Usb Flash Drive Circuit Board For Electronics

FR4 Prototype PCB Assembly , Components Sourcing Custom Pcb Circuit Board

Custom Rogers PCB Fr4 Circuit Board PCB For Communication Base Station High Frequency Board

6 Layer Impedance Plate Automobile Smt Printed Circuit Board Halogen Free

Thick Copper PCBA Printed Circuit Board Assembly ENIPIG Finish

FR4 94V0 Single Sided Pcb Board Flex Printed Circuit PCBA

Nelco Immersion Ag Electric Control Prototype PCB Assembly Board Production

10 Layer ENIG Finish SMT PCB Board Manufacturing Service

2 Layer SMT PCB Board with Green Solder Mask Color and Assembly Service

6 Layer Rigid-Flex SMT PCB Circuit Board Signal Board Mixed Voltage Board
