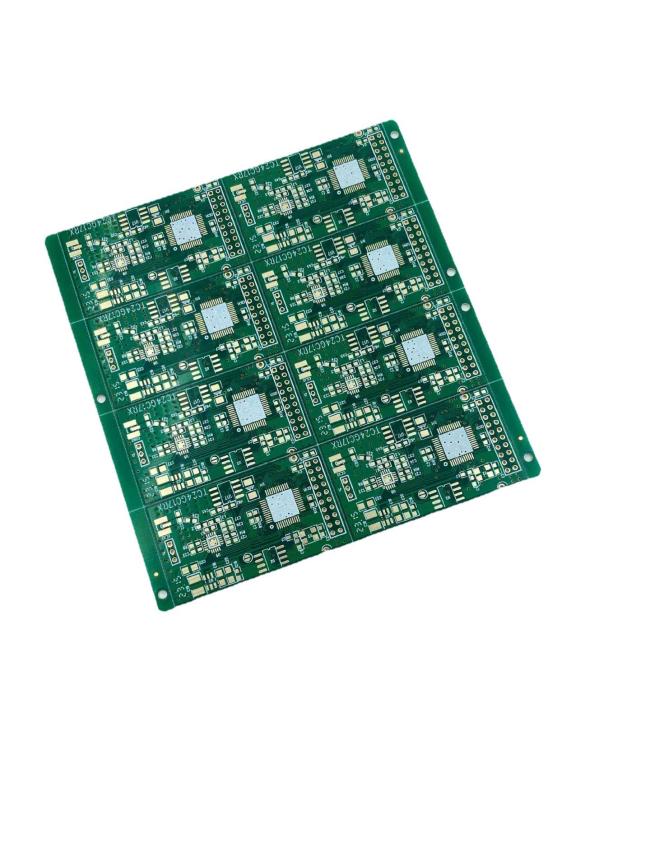

Immersion Gold Multilayer Printed Circuit Board , 6 Layers PCB 0.15mm Holes
Immersion gold multilayer printed circuit board 6 layers PCB 0.15mm holes
The immersion gold multilayer printed circuit board is a PCB with immersion gold as the surface finish. Immersion gold surfaces help protect copper traces and pads on the PCB surface from corrosion and other forms of degradation.
A 6-layer PCB is a multi-layer PCB consisting of six layers of substrate material and copper traces. Multilayer PCBs are used in applications that require more complex circuitry, and they can increase functionality and reduce size compared to single or two-layer PCBs.
A 0.15mm hole in a PCB refers to the diameter of the smallest drilled hole that can be made in a PCB. PCBs with 0.15 mm holes are considered small holes, are challenging to manufacture and require specialized equipment and techniques.
Overall, the immersion gold multilayer printed circuit board with six layers and 0.15mm holes is a high-performance PCB suitable for a wide range of applications, including high-speed digital and radio frequency circuits, where strict impedance control and signal integrity.
| PCB Layer | 6L | PCB material | FR4 |
| Copper thickness | 1/1/1/1OZ | PCB thickness | 1.0MM |
| Min. hole size | 0.15mm | Min.PCB track/gap: | 3/3mil |
| PCB solder mask | Green | PCB silkscreen | White |
| PCB surface finished | Immersion Gold | PCB outline | Routing/V-CUT |
| Application | communications | ||
| Special requirement: | small line space and gap:3/3mil/min. via hole size 0.15mm/impedance control//resin filled and plated over | ||
