Fencing Raised Expanded Metal Diamond Mesh Carbon Steel 3.14lbs Grating Grid Product
Expanded metals grating is made of carbon steel, aluminum for lightweight applications and stainless steel for wet environments. Expanded metals grating is produced by cutting and stretching metal sheets in a single operation to form a non-slip surface with a large opening that forms a safe footing for walking and standing. It can be used as a filter in construction and petroleum industry, and galvanized steel flat steel plate is usually used as a filter for air and grease.
Fencing Raised Expanded Metal Diamond Mesh Carbon Steel 3.14lbs Grating Grid Feature
- Walking surface is anti skid,providing safe foothold.
- The open design allows effective sprinkler coverage for fire protection,prevent dirt grease or snow accumulation.
- Expanded solutions grating costs less than bar type or sheet metal grating and easy to install in applications.
- Easy to clean and install with strong bearing capacity
- High strength,corrosion resistance etc.
- Ventilation light transmission
Fencing Raised Expanded Metal Diamond Mesh Carbon Steel 3.14lbs Grating Grid Specification
Carbon steel expanded metal grating provides a reliable anti slip surface,that is suitable for industrial facilities and other areas requiring walkway safety gratings. Expanded graiting is the most economical industrial walking surface you can install in your plant.
| Style | Min LBS per 100sqft | SWD | LWD | SWO | LWO | Strand width(inches) | Finished strand thickness(inches) | Approx % open area |
| 3.0lbs | 301 | 1.33" | 5.33" | 0.945" | 3.74" | 0.256 | 0.187 | 60 |
| 4.0lbs | 394 | 1.33" | 5.33" | 0.945" | 3.74" | 0.319 | 0.197 | 55 |
| 5.0lbs | 498 | 1.33" | 5.33" | 0.945" | 3.74" | 0.35 | 0.226 | 50 |
| 6.25lbs | 628 | 1.33" | 5.33" | 0.945" | 3.74" | 0.339 | 0.295 | 50 |

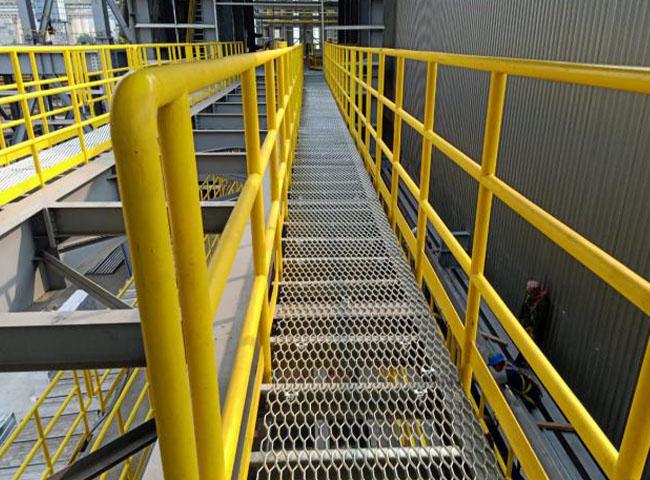

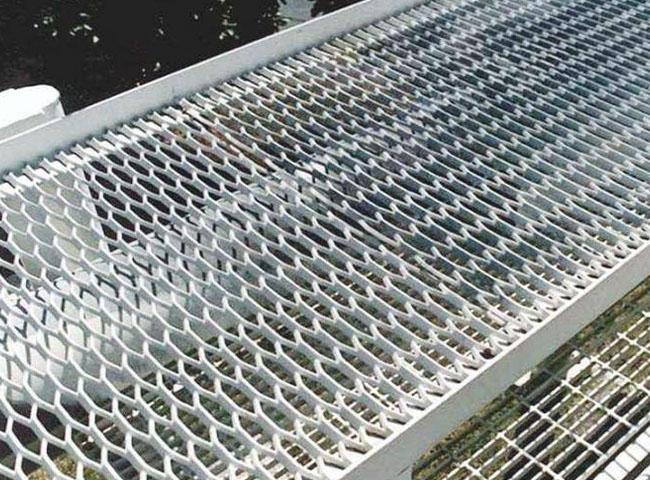

Fencing Raised Expanded Metal Diamond Mesh Carbon Steel 3.14lbs Grating Grid Application
Expanded metal grating is a strong and economical product used in a variety of industry.commercial,architectural and drainage applications.
Expanded metal mesh can be widely used in including the protection of machinery equipment,handicraft manufacturing,shelves.heavy machinery,work platforms.walkway ships.
