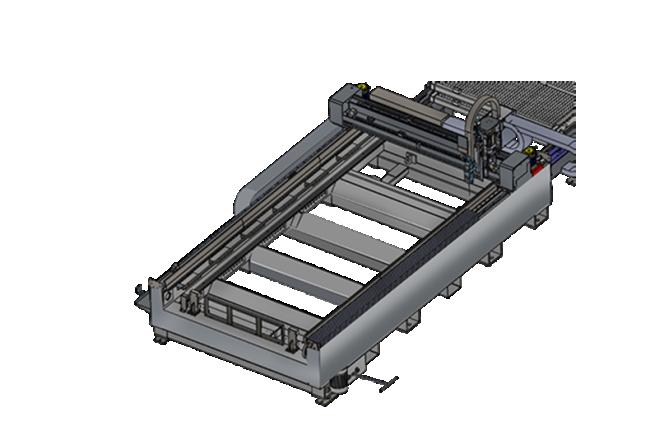

Thermal annealing steel bed, long service life

Large format and heavy machine body adopts frame structure welded by high quality steel to get excellent dynamic and static response characteristics. After welding, annealing, secondary aging treatment, precision processed by large gantry milling

machine, it can ensure the good shock resistance, high rigidity and stability for the machine body.

Unique “L” shaped beam

Unique “L” design of the beam, which has better deformation resistance at horizontal section and vertical orientation and higher

rigidity. It also has the advantages of less weight, better dynamic performance.

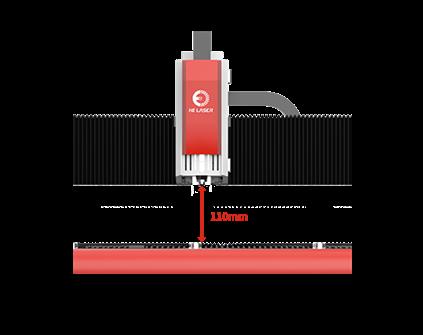

Big height of passing the beam

The max height which can pass the beam is 110mm, can cut the profiles with U and L shapes.

Efficient communication performance

Front operator interface and electrical cabinet can reduce circuit interference.

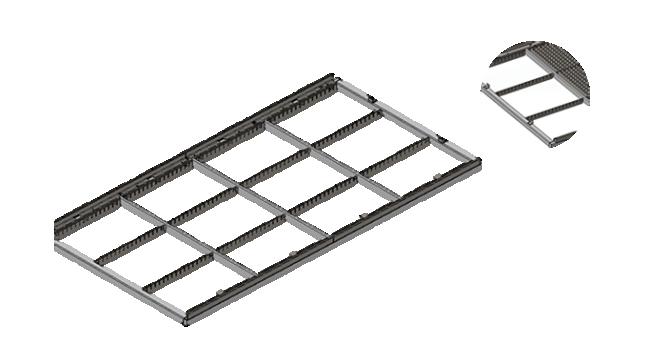

Modular assemble platform

Assemble frames can prevent thermal deformation effectively. It is convenient to replace the supports to longer the life of

platform.

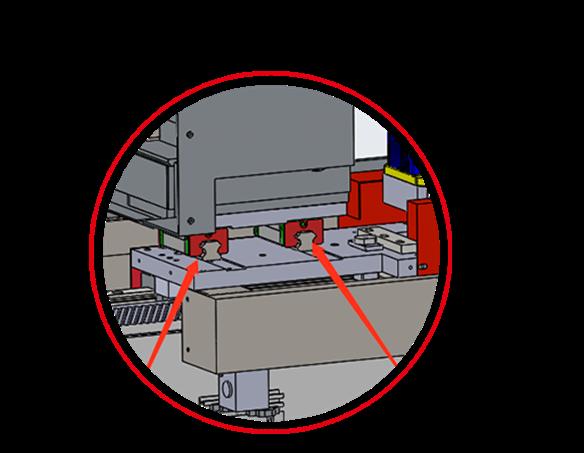

Compensation structure for beam expansion

Can modify the precision deviation caused by environment, temperature change and working condition intelligently.
