Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls
Price:
46-105 dollars per SQM
MOQ:
50 sqm
Delivery Time:
20-35 Working Days
Brand:
Flyon
Product Description
Electric Motorized Divider Curtain with Customizable Size and High Breathability for Sports Halls
Professional sports dividing curtains designed for efficient space management in multi-purpose sports halls and facilities.
Single Curtain System Specifications
| Product Name | Divider Curtain | Total Hanging Weight | ≤ 2.5 kg/m |
|---|---|---|---|
| Maximum Height | 12m | Hanging Spacing | ≤ 3m |
| Maximum Width | 36m | Maximum Bearing Capacity (per lifting point) | ≤ 80kg |
| Maximum Area | 300m² | Maximum Hanging Weight | ≤ 750kg |
Color Choices


Model Options

Installation Safety Requirements
- A safety gap of at least 50cm should be maintained between this partition curtain system and adjacent partition curtains or walls.
- A safety distance of at least 15cm must be left on the side without the engine running.
- There should be at least 5cm clearance between the bottom of the partition curtain and the ground.
Electric and Control System
The middle reel utilizes a high-performance drum motor (220V, 450W, 120N/M) with internal meshing planetary gear reducer, upper and lower brake limiters, push-button limit switches, automatic reset and thermal overload protection systems for stable and reliable operation.
Product Advantages
- Double curtains made of high-quality PVC for superior sound absorption
- Partial mesh design allows natural light transmission
- Complete system includes all required materials, parts, and aluminum truss load-bearing structure
- Environmentally friendly, tear-resistant, high-strength, and fire-resistant materials
- Simple operation with multiple configuration options available

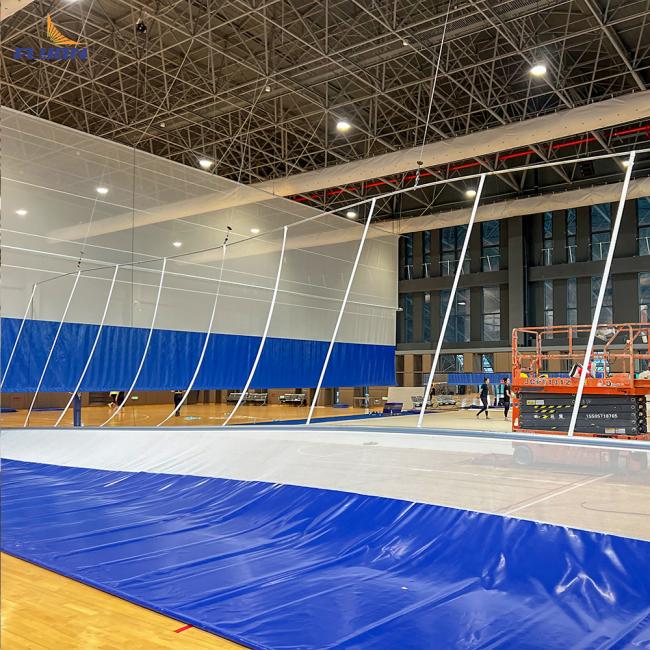

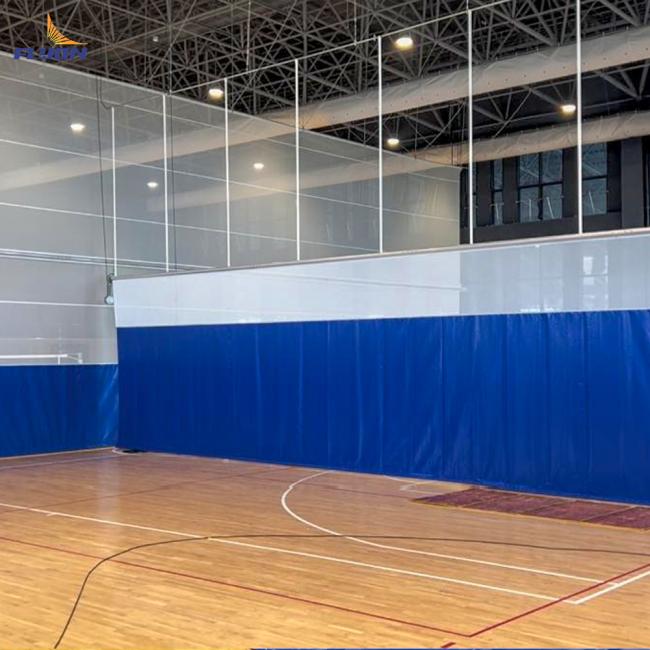

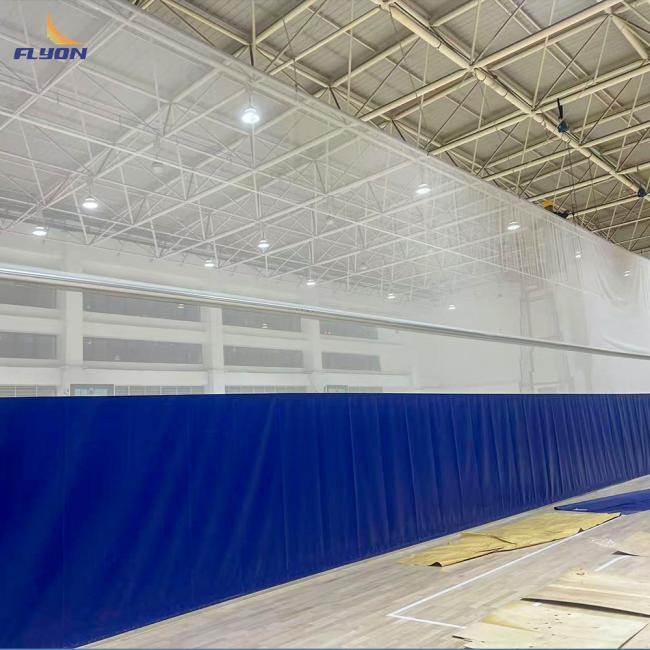

Project Presentation
