LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
30 days
Brand:
BAUDOUIN
Product Description
264kW 330KVA BOBIG BAUDOUIN Diesel Generator (Model: 6M16G350/5)
Our 264kW 330KVA BOBIG BAUDOUIN diesel generator (Model: 6M16G350/5) is designed to provide reliable power for a wide range of applications. Backed by the renowned BAUDOUIN brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 264kW (330KVA) with stable and efficient prime power output. Frequency: 50Hz standard operation suitable for most electrical equipment.
Engine Excellence
Powered by the 6M16G350/5 BAUDOUIN engine with high torque, fuel efficiency, and low emissions. Engine Speed: 1500 RPM for smooth and consistent power supply.
Technical Specifications
General Information
| Parameter | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 330 | 363 |
| Power Rating (kW) | 264 | 290 |
| Frequency (Hz) | 50 | |
| Engine Model | 6M16G350/5 | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (According to customer requirements) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Engine Details
| Engine Model & Manufacturer | 6M16G350/5 (BAUDOUIN) |
| N° of Cylinders / Valves | 6/24 |
| Cylinders Arrangement | In line |
| Bore x Stroke (mm) | 126 x 130 |
| Displacement (L) | 9.726 |
| Thermodynamic Cycle | Diesel 4 stroke |
| Firing Order | 1-5-3-6-2-4 |
| Mean Piston Speed (m/s) | 6.5 |
| BMEP @ ESP (Bar) | 26.32 |
| Cooling System | Liquid (water + 50% antifreeze) |
| Injection System | Direct |
| Fuel System | Mechanical Pump |
| Aspiration | Turbocharged and Aftercooled |
| Compression Ratio | 17:1 |
| Flywheel Housing | SAE 1 |
| Flywheel | 14" |
| Rotation Viewed from Flywheel | Counter Clockwise |
| Allowed Static Bending Moment | 10800 |
| N° of Teeth on Flywheel Ring Gear | 136 |
| Inertia of Flywheel (kg•m²) | 1.84 |
| Inertia of Crankshaft (kg•m²) | 0.39 |
| Emission Standard | N/A |
| Overall Dimensions with Radiator (mm) | 1982 x 1082 x 1310 |
| Engine Dry Weight without Radiator (kg) | 880 |
| Engine Dry Weight with Radiator (kg) | 1021 |
| Engine Wet Weight with Radiator (kg) | 1092 |
Alternator Specifications
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-314D |
| Rated Power | 264kW/330kVA |
| Rated Voltage (V) | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
Dimensions and Weight
| Model | BBDA363 (Open type) | BBDA363S (Silent type) |
|---|---|---|
| Length (mm) | 2850 | 4200 |
| Width (mm) | 1050 | 1600 |
| Height (mm) | 1645 | 2250 |
| Tank Capacity (L) | 607 | 607 |
Applications
- Industrial Use: Backup power source for factories ensuring continuous production during power outages
- Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
- Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or material quality issues.
Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.
Company Information
We are an electrical machinery manufacturer with a total factory area of 10,000 square meters, including 1,000sqm standard construction area. With 160 employees (20 technicians), we produce gasoline generators, diesel generators 5-2000kVA, gas generators, pumps, and more. Our company has obtained ISO9000 Quality System Certification.

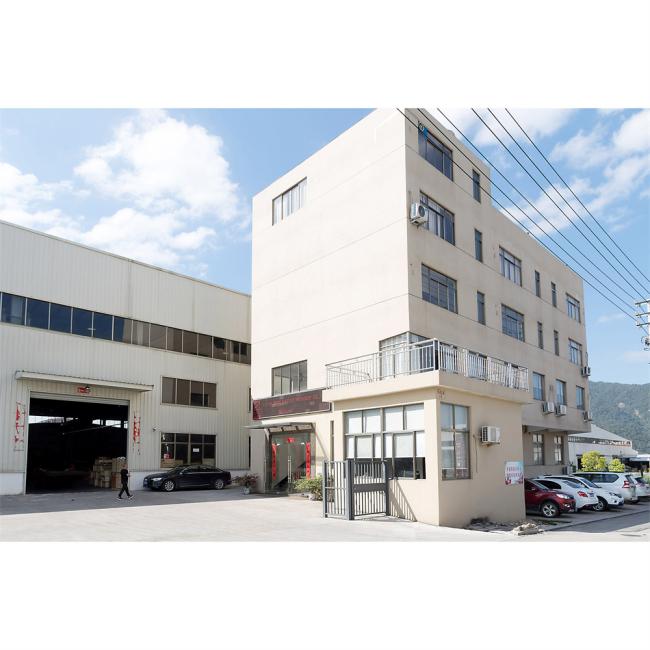

Factory

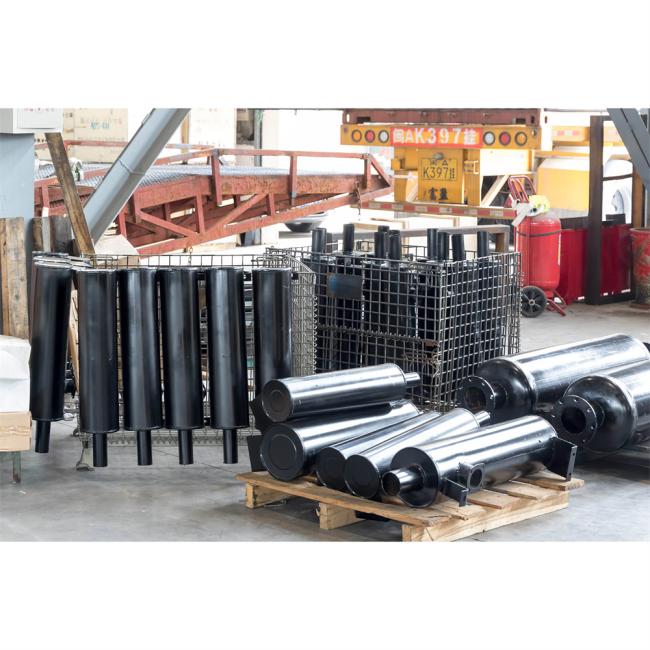

Workshop

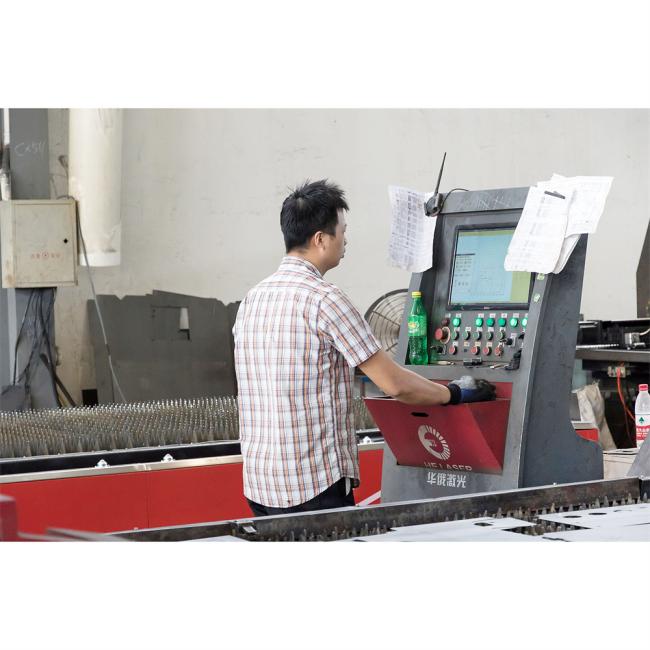

Equipment

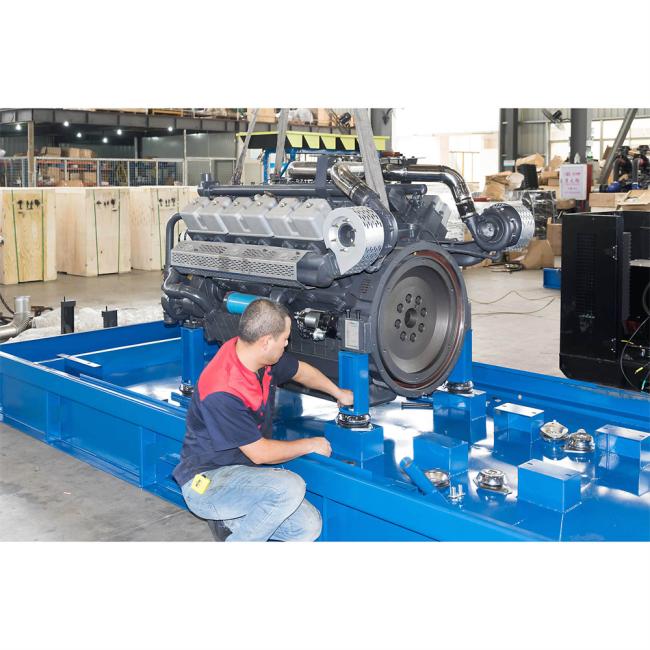

Production
Testing

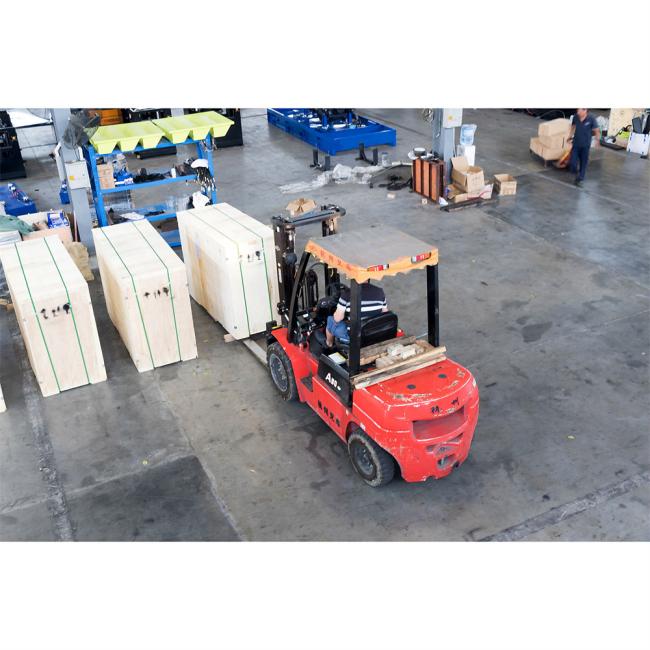

Package
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery, or 100% L/C. Delivery: 10-15 working days after receiving deposit.
Which port do you often use when export?
Fuzhou port, Fujian province or as customer request.
Is there any spare parts you can provide along with generators?
We provide regular engine's air filter, water filter, fuel filter, oil filter for self-maintenance.
Can you offer parts to us if we need?
Yes, we can offer parts at any time, not limited to warranty period. Parts usually shipped within 3-5 days.
Can voltage, frequency, tank capacity, phase and color be customized?
Yes, all specifications can be customized according to your requirements.
What is your distribution policy?
We welcome distributors worldwide and can issue authority certificates and sign agreements accordingly.
