Yanmar Intelligent Power Genset 45kW 56KVA Silent diesel Generators Set Power Plant Alternator Water Cooled Portable Diesel Generator
Our 45kW 56KVA BOBIG Yanmar diesel generator (Model: 4TNV106T-GGE) is designed to provide reliable power for a wide range of applications. Backed by the renowned Yanmar brand, it offers high-quality performance and long-term durability.
- Rated Power: 45kW (56KVA) - meets power needs for industrial, commercial, and residential applications
- Frequency: 50Hz standard frequency suitable for most electrical equipment
- Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
- Engine Model: 4TNV106T-GGE Yanmar engine
- Engine Speed: 1500 RPM for smooth, consistent power supply
- Features: High torque, fuel efficiency, and low emissions
| General Information | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 56 | 62 |
| Power Rating (kW) | 45 | 50 |
| Frequency (Hz) | 50 | |
| Engine Model | 4TNV106T-GGE | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (customizable) | |
| Fuel Tank Capacity Operating Time | ≥ 8h @ 75% load | |
| Model Type | BYN62 (Open) | BYN62S (Silent) |
|---|---|---|
| Length (mm) | 2000 | 2500 |
| Width (mm) | 710 | 930 |
| Height (mm) | 1320 | 1200 |
| Tank Capacity (L) | 104 | 104 |
| Engine Model & Manufacturer | 4TNV106T-GGE (YANMAR) |
| Engine Type | 4 cycle, Inline, Water-cooled Diesel |
| No. of Cylinders - Bore×Stroke (mm) | 4-φ106×125 |
| Combustion System | Direct Injection |
| Compression Ratio | 18 |
| Displacement (liter) | 4.412 |
| Rated Output (kW/PS) | 56(76.1)/66.9(91) |
| Continuous Rating (kW/PS) | 50.9(69.2)/60.9(82.8) |
| Specific Fuel Consumption (g/kW-h) | 220.4(162) at rated output |
| Alternator Brand | BOBIG |
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Alternator Model | BW-224E |
| Alternator Rated Power | 45kw/56kva |
| Rated Voltage (V) | 230v/400v |
| Rated Frequency | 50hz |
| Connecting Type | 3 Phase and 4 Wire |
| Protection Grade | IP23 |
| Insulation Class | H class |
- Ambient Temperature: +5°C to +40°C operating range
- Altitude: Suitable for use up to 1000m (custom solutions available for other conditions)
Our generator complies with multiple international and national standards, including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, guaranteeing quality, safety, and reliability.
- Industrial Use: Backup power source for factories ensuring continuous production during outages
- Commercial Buildings: Power for office buildings, shopping malls, and hotels to maintain essential services
- Residential Areas: Reliable power for communities with unstable power grids
BOBIG products include a one-year or 1000-hour warranty (whichever comes first). We provide free replacement of easy-damageable spare parts caused by production or material quality issues. Our professional after-sales service team is available 24/7 for technical support, maintenance, and repairs.
- Brand Reputation: Yanmar is a trusted brand with a long history of quality products
- Quality Assurance: Manufactured to international standards with rigorous quality inspections
- Customization Options: Tailored solutions based on your specific requirements

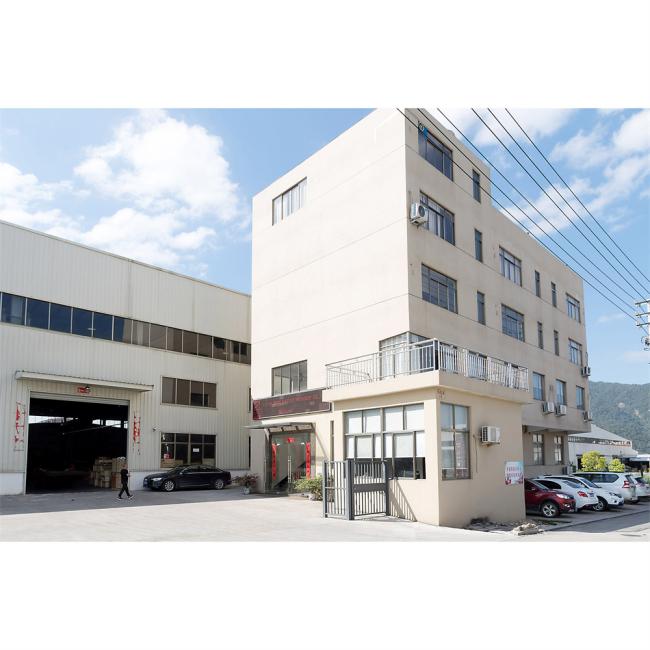

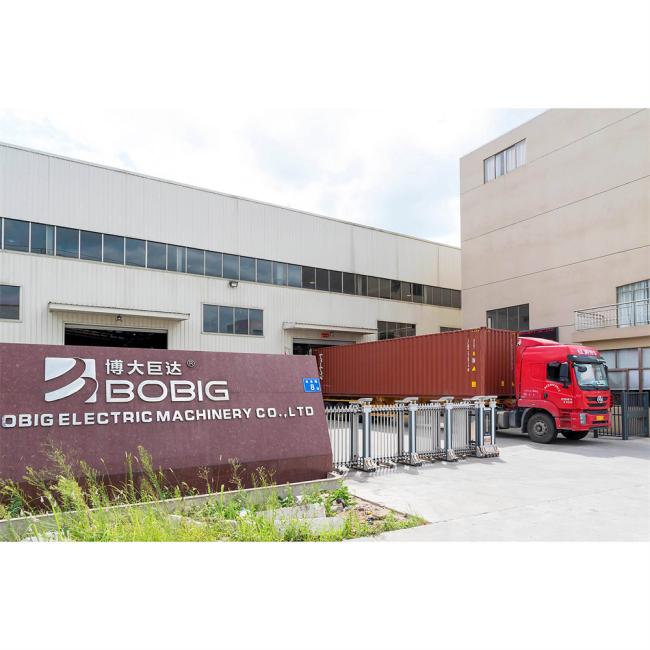

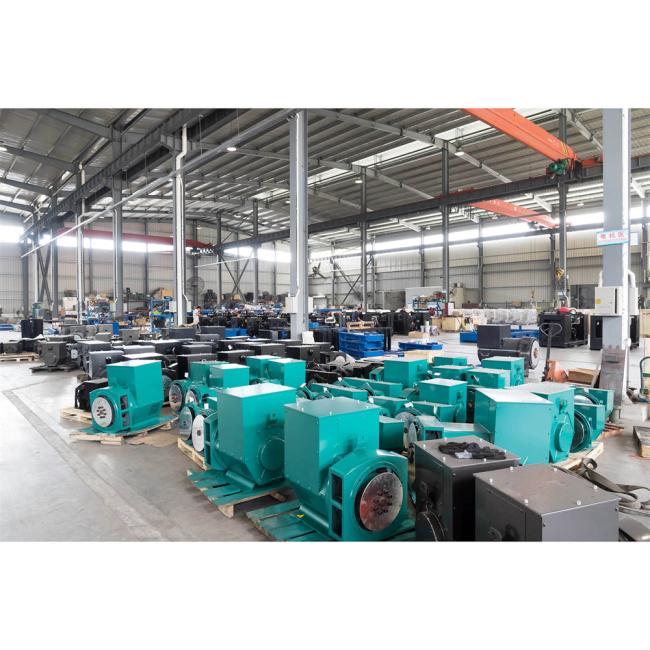

We are an electrical machinery manufacturer integrating technological research, production, and sales. With a total factory area of 10,000 square meters and 160 employees (including 20 technicians), we produce gasoline generators, diesel generators (5-2000kva), gas generators, pumps, and more. Our company holds ISO9000 Quality System Certification and maintains advanced testing equipment to ensure product quality.
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery, or 100% L/C, trade assurance, PayPal, Western Union. Delivery: 10-15 working days after deposit receipt.
Fuzhou port, Fujian province or as customer request.
We provide regular engine air filter, water filter, fuel filter, and oil filter for customer self-maintenance.
Yes, we can provide parts at any time (not limited to warranty period), usually shipped within 3-5 days.
Yes, all specifications can be customized according to your requirements.
We welcome distributors worldwide and can issue authority certificates and sign agreements accordingly.
