Customizable Doosan Low Noise Silent Diesel Generator Set 360kW 450KVA Construction, Household Use, and Industrial Use
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
30 days
Brand:
Doosan
Product Description
Customizable Doosan Low Noise Silent Diesel Generator Set 360kW 450KVA
Designed for construction, household use, and industrial applications, this reliable power solution delivers exceptional performance and durability.
Product Overview

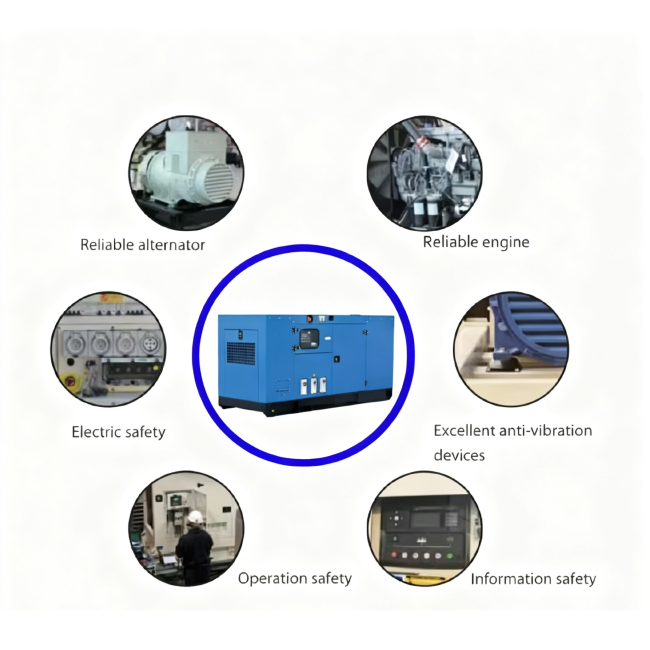

The 360kW 450KVA BOBIG Doosan diesel generator (Model: DP126CE) provides reliable power for diverse applications, backed by the renowned Doosan brand for quality performance and long-term durability.
Key Features
Power Performance
Rated at 360kW (450KVA), this generator meets power needs for industrial, commercial, and residential applications with stable, efficient prime power output.
Operating at 50Hz standard frequency, compatible with most electrical equipment.
Engine Excellence
Powered by the DP126CE Doosan engine featuring advanced technology, high torque, fuel efficiency, and low emissions.
Running at 1500 RPM for smooth, consistent power supply with minimized component wear.
Technical Specifications
General Information
| Parameter | Prime Power | Standby Power |
|---|---|---|
| Rated Power (kVA) | 450 | 495 |
| Power Rating (kW) | 360 | 396 |
| Frequency (Hz) | 50 | |
| Engine Model | DP126CE | |
| Engine Speed (RPM) | 1500 | |
| Phase | 3 | |
| PF | 0.8 | |
| Control System | Digital | |
| Rated Voltage (V) | 400/230 (Customizable) | |
| Fuel Tank Operating Time | ≥ 8h @ 75% load | |
Dimensions and Weight
| Model | BDO495 (Open) | BDO495S (Silent) |
|---|---|---|
| Length (mm) | 3100 | 4050 |
| Width (mm) | 1050 | 1510 |
| Height (mm) | 2150 | 2050 |
| Tank Capacity (L) | 828 | 828 |
Engine Details
| Engine Model & Manufacturer | DP126CE (DOOSAN) |
| Engine Type | 4-stroke, in-line 4 cylinder, water cooled, common rail direct injection |
| Bore x Stroke | 123 x 155 mm |
| Displacement | 11.051 liters |
| Compression Ratio | 16.5:1 |
| Rotation | Counter clockwise viewed from flywheel |
| Firing Order | 1-5-3-6-2-4 |
| Dry Weight | 1058 kg (engine only) |
| Dimension (LxWxH) | 1,411 x 1,133 x 1,323 mm |
Alternator Specifications
| Alternator Brand | BOBIG |
| Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD |
| Model | BW-354C |
| Rated Power | 360kW/450kVA |
| Rated Voltage | 230V/400V |
| Rated Frequency | 50Hz |
| Connecting Type | 3 Phase and 4 W |
| Number of Bearing | 1 |
| Protection Grade | IP23 |
| Altitude | ≤1000m |
| Exciter Type | Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper |
| Insulation Class | H class |
Environmental Adaptability
Operates effectively in ambient temperatures from +5°C to +40°C and at altitudes up to 1000m. Custom solutions available for different environmental conditions.
Compliance Standards
Complies with ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications, ensuring quality, safety, and reliability.
Customization & Options
We support customization and OEM services with design drawings. All units include standard DSE 6120 controller with optional engine, generator, and controller configurations.
Applications
- Industrial Use: Backup power for factories ensuring continuous production during outages
- Commercial Buildings: Power for offices, shopping malls, and hotels maintaining lighting, elevators, and security systems
- Residential Areas: Reliable power for communities with unstable power grids
Warranty & Service
BOBIG products include a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. Free replacement of easy-damageable spare parts due to production or material quality issues. Professional after-sales support available 24/7.
Why Choose BOBIG Doosan Generators
- Brand Reputation: Doosan is a trusted brand with long history of quality products
- Quality Assurance: Manufactured to international standards with rigorous inspections
- Customization Options: Tailored solutions based on specific requirements
