100KVA SDEC Engine Silent Open Water Cooled Generator Diesel Electrostatic Generator Price Portable Electric Diesel Generators Set 80kW
Product
Product Introduction

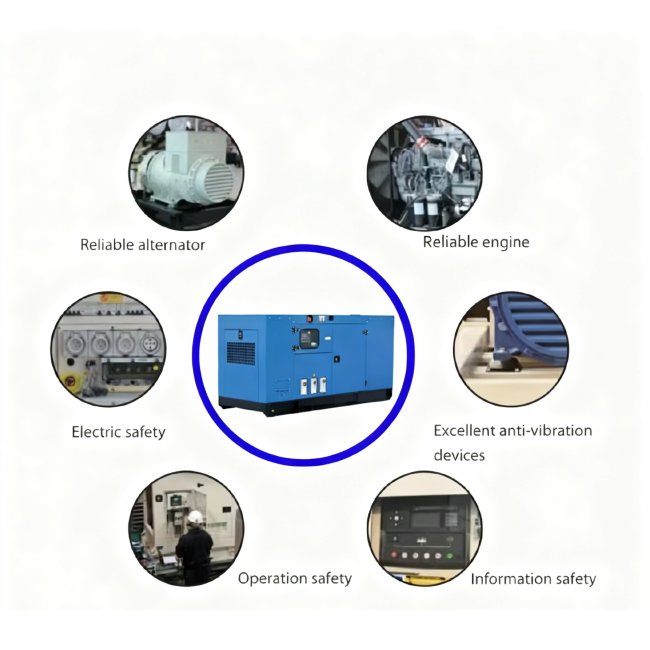

Key Features
Power Performance
Engine Excellence
Applicable Standards
Environmental Adaptability
| General information | Prime power | Standby power | |||||||
| Rated Power (kVA) | 100 | 110 | |||||||
| Power Rating (kW) | 80 | 88 | |||||||
| Frequency (Hz) | 50 | ||||||||
| Engine Model | SC4H140D2 | ||||||||
| Engine Speed (RPM) | 1500 | ||||||||
| Phase | 3 | ||||||||
| PF | 0.8 | ||||||||
| Control System | Digital | ||||||||
| Rated voltage (V) | 400/230 (According to customer requirements) |
||||||||
| Fuel tank capacity operating time | ≥ 8h @ 75% load | ||||||||
| PRP Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation | |||||||||
| ESP The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this ratin | |||||||||
| Engine model & manufacturer | SC4H140D2(SDEC) | |||||||||||||
| Engine Model | SC4H140D2 | |||||||||||||
| Engine Type | In-line, 4 strokes, water-cooled; 4 valves, Turbo charged | |||||||||||||
| Combustion type | Direct injection | |||||||||||||
| Cylinder Type | dry cylinder liner | |||||||||||||
| Number of cylinders | 4 | |||||||||||||
| Bore × stroke | 105 × 124 mm | |||||||||||||
| Displacement | 4.3 lit. | |||||||||||||
| Compression ratio | 16 : 1 | |||||||||||||
| Firing order | 1-3-4-2 | |||||||||||||
| fuel injection advance angle | 11°BTDC | |||||||||||||
| Dry weight | 460 kg | |||||||||||||
| Dimension | 1080x738x1078mm | |||||||||||||
| Rotation | CCW viewed from flywheel | |||||||||||||
| Fly wheel housing | SAE 3# | |||||||||||||
| Fly wheel | SAE 11.5#(number of teeth: 127) | |||||||||||||
| Injection pump | Beiyou in-line “AD” type | |||||||||||||
| Governor | Electric type | |||||||||||||
| Feed pump | Mechanical type | |||||||||||||
| Injection nozzle | Multi hole type | |||||||||||||
| Alternator | ||||||||||||||
| Alternator Brand | BOBIG | |||||||||||||
| Alternator Manufacturer | FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD | |||||||||||||
| Alternator Model | BW-274C | |||||||||||||
| Alternator Rated Power | 80kw/100kva | |||||||||||||
| Rated voltage (V) | 230v/400v | |||||||||||||
| Rated frequency | 50hz | |||||||||||||
| Connecting Type | 3 Phase and 4 W | |||||||||||||
| Number of Bearing | 1 | |||||||||||||
| Protection Grade | IP23 | |||||||||||||
| Altitude | ≤1000m | |||||||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper | |||||||||||||
| Insulation Class | H class | |||||||||||||
| Telephone Influence Factor (TIF) | ≤50 | |||||||||||||
| THF | ≤2% | |||||||||||||
| Voltage Regulation, Steady State | ≤±1% | |||||||||||||
| Transient State Voltage | ≤-15%~+20% | |||||||||||||
| Dimension and Weight | |||||||||
| Model | BSD110 Open type |
BSD110S Silent type |
|||||||
| Length (L) mm | 2000 | 2750 | |||||||
| Width (W) mm | 850 | 1100 | |||||||
| Height (H) mm | 1580 | 1430 | |||||||
| Tank capacity (L) | 184 | 184 | |||||||
Plywood case ,10~15 working days after receiving customers
Company Profile
We are an electrical machinery manufacturer collecting the technological research, production and sale together. With a total factory area of 10,000 square meters, including 1,000sqm standard construction area, we have 160 employees, among which 20 people are technicians.Our main products include gasoline generators, diesel generators 5-2000kva, gas generator,pump etc. Due to our advanced technique and devices,rich experience, reliable quality,considerate service and good team work,we have won a great reputation in the world market.
Adhering to the idea of "Quality, Creation, Service and Development", we keep the aim of updating technology, improving quality and providing better service all the time. We also have kinds of advanced equipment to test our products, such as CAD system, auto assembling & winding & inserting equipment, vacuum dipping system and digital testing equipment.We always control product quality strictly and our company has obtained ISO9000 Quality System Certification. We warmly welcome you to build sincere cooperation with us.

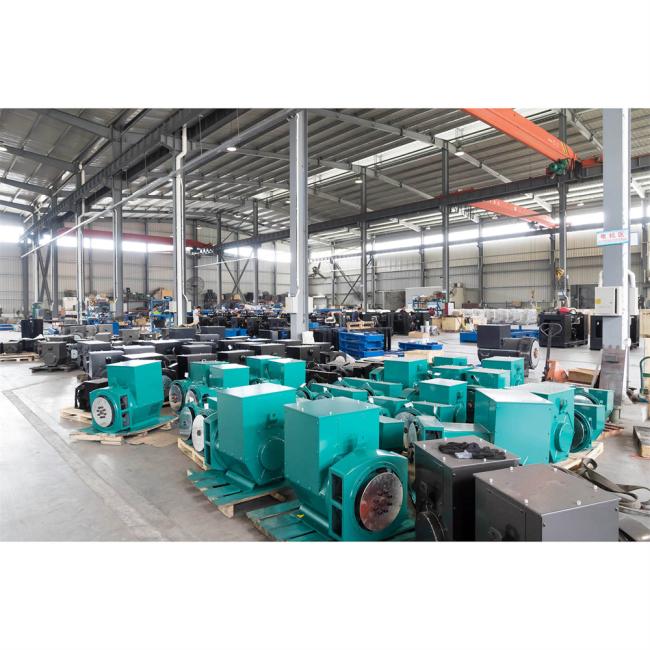

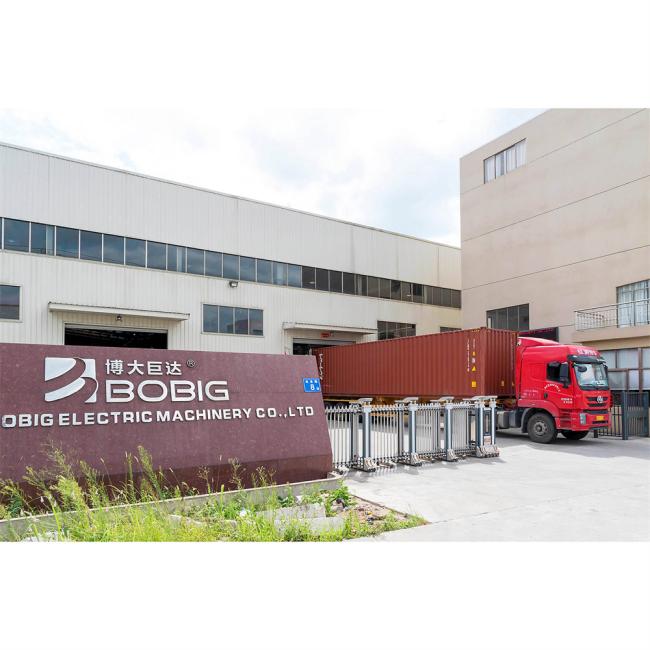

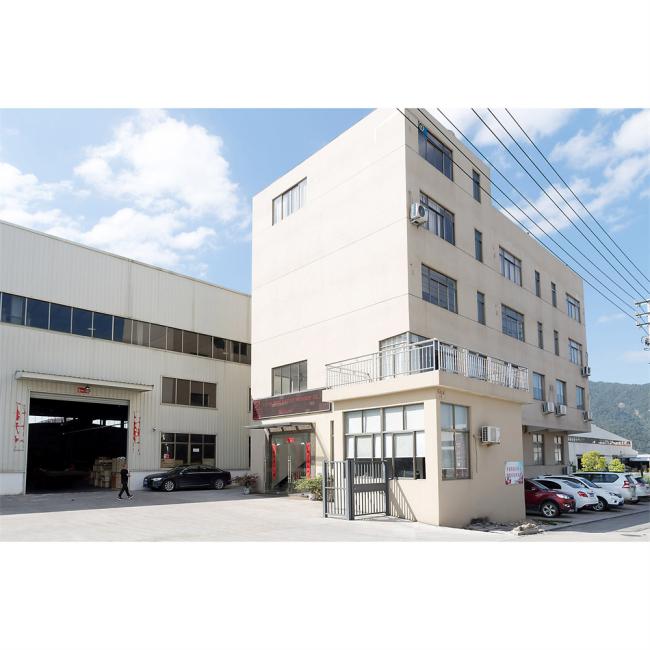

FACTORY:

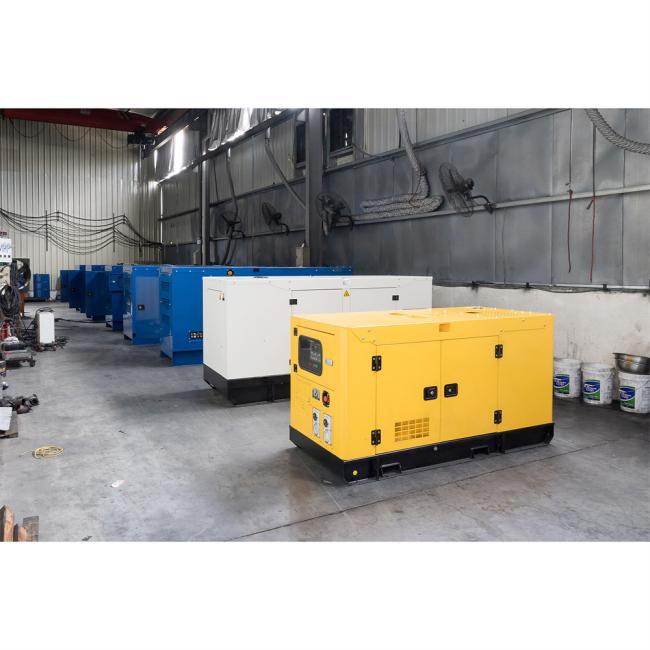

WORKSHOP:

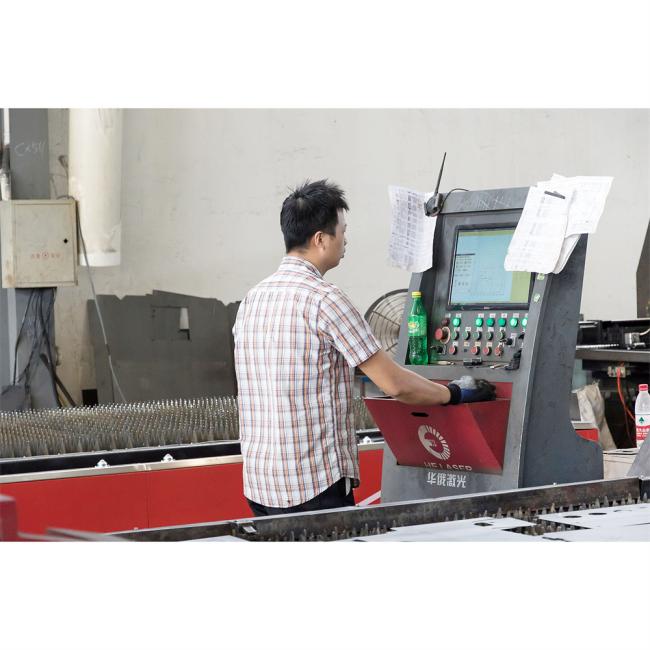

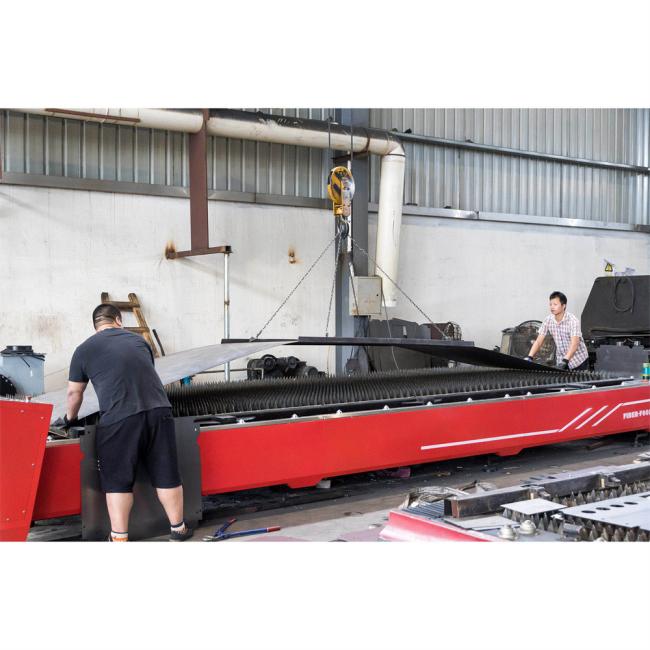

EQUIPMENT:

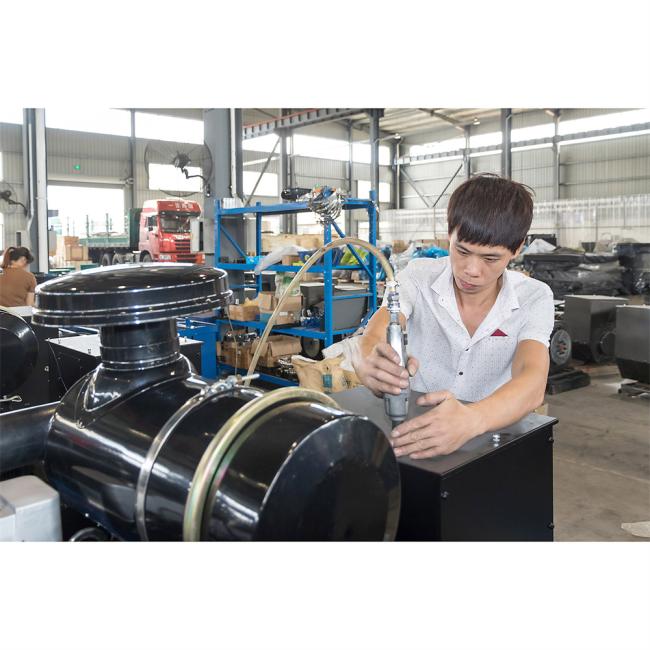

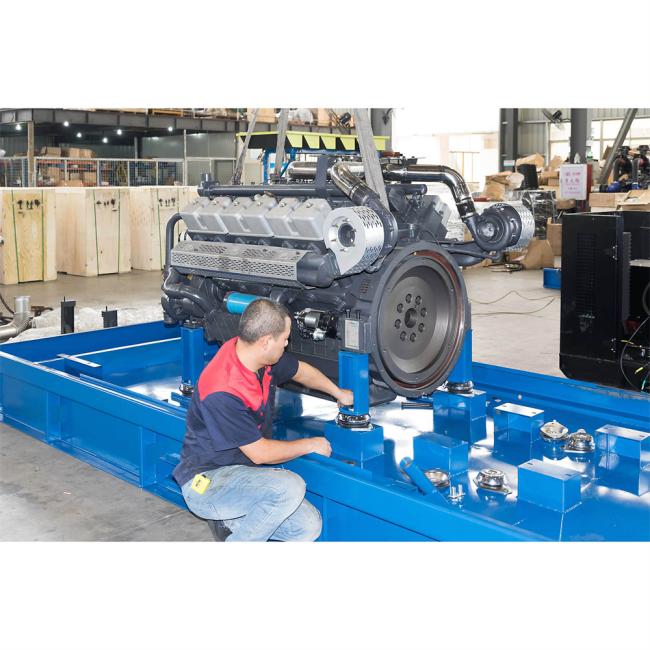

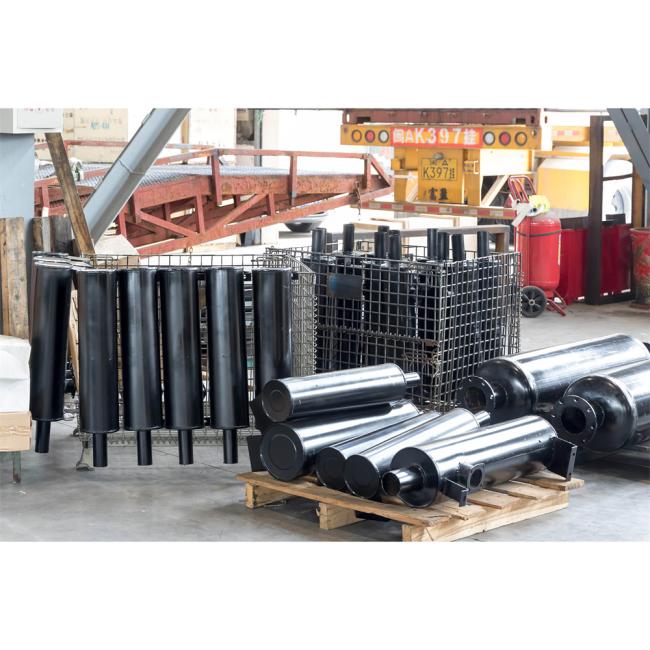

PRODUCTION:

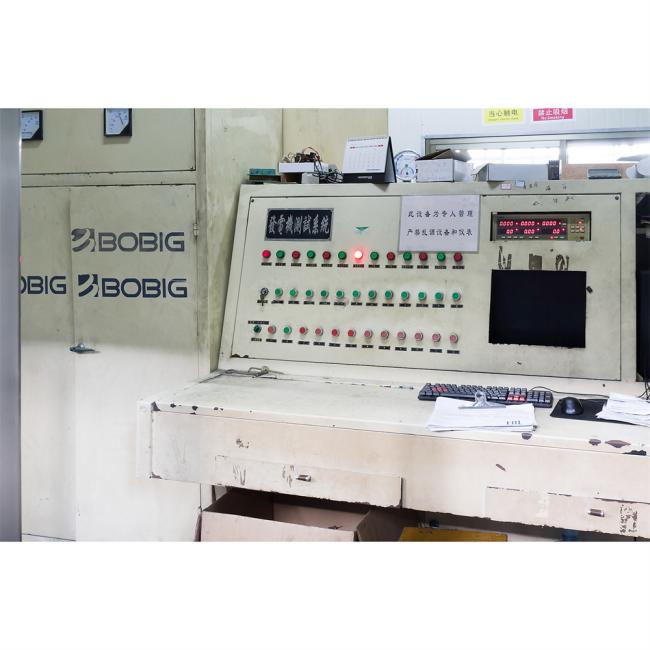

TESTING:

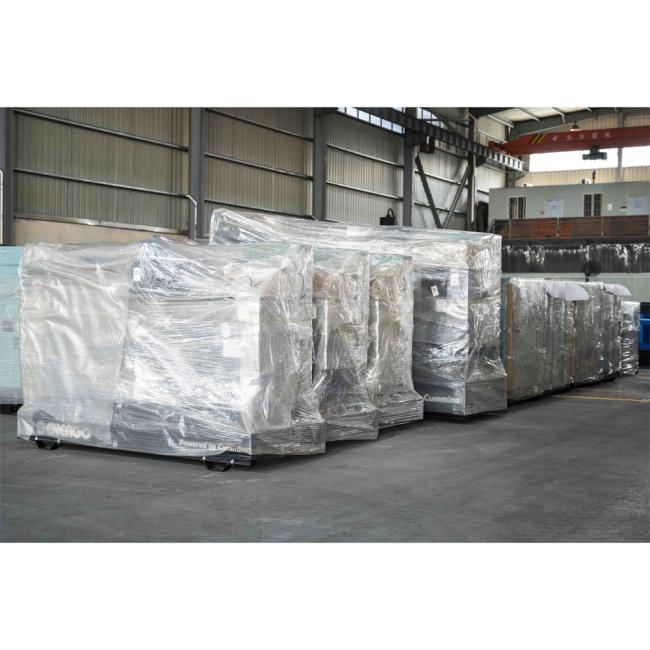

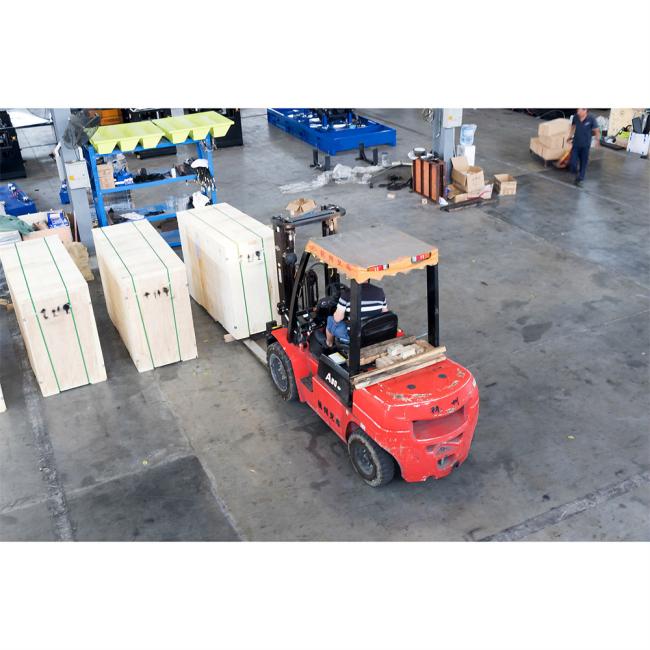

PACKAGE:
BOBIG products has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, we will provide the free easy-damageable spare parts, caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance.
Applications
This diesel generator is ideal for a variety of applications, such as:
- Industrial Use: It can be used as a backup power source for factories, ensuring continuous production during power outages.
- Commercial Buildings: Office buildings, shopping malls, and hotels can rely on it to maintain essential services like lighting, elevators, and security systems.
- Residential Areas: Provide reliable power to residential communities, especially in areas with unstable power grids.
Warranty and After - sales Service
We offer a comprehensive warranty for our diesel generators. Our professional after - sales service team is available 24/7 to provide technical support, maintenance, and repair services to ensure your peace of mind.
Why Choose Us
- Brand Reputation: Yuchai is a well - known and trusted brand in the diesel generator industry, with a long history of producing high - quality products.
- Quality Assurance: Our products are manufactured in strict accordance with international standards, and each generator undergoes rigorous quality inspections before leaving the factory.
- Customization Options: We understand that different customers have different needs. Our team can provide customized solutions based on your specific requirements.
1. What is your MOQ, payment method, delivery time?
Answer: Our MOQ is only 1 set. Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering.
Or 100% L/C,tradeassurance,paypal,wester union..Delivery period normally will be 10~15 working days after receiving customers' deposit.
2. Which port do you often use when export?
Answer: Fuzhou port,Fujian province or as customer request.
3. Is there any spare parts you can provide along with genertors to make the maintenance convenient?
Answer: We can provide regular engine's air filter, water filter, fuel filter, oil filter to customers for self-maintenance.
4.Can you offer parts to us if we need?
Answer: Yes,we can offer parts to you at any time,not limited in warranty time.usually the parts can be sent out during 3-5days.
5. For voltage,frequency,tank capacity,phase and color,can you made accord with our requests?
Answer: Yes,they can be made accord with your need.
6. If I want to be your products distributor in our country, what is your distribution policy?
Answer: Welcomes everybody join us and distribute products worldwide. We can issue authority certificates and sign agreement with you accordingly.
