ODM Ball Mill Jar 500ml High Purity 95 ZrO2 Zirconia Cylindrical Jar
High Purity 95 ZrO2 Zirconia Cylindrical Jar/Zirconium Oxide Ball Mill Pot with O-ring
Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. The abrasive pots are extensively applied on in the fields of Paint, Ink,Coating, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Each jar set includes abrasive pot, jar lid, rubber sealing gasket and different sizes of mixed zirconium oxide grinding balls.
| Jar Volume | OD (mm) | ID (mm) | Total Height (mm) |
| 50ml | 55 | 38 | 67 |
| 100ml | 65 | 50 | 75 |
| 250ml | 92 | 74 | 88 |
| 500ml | 100 | 84 | 118 |
| 1000ml | 128 | 108 | 150 |
| 2.0L | 158 | 138 | 162 |
| 3.0L | 158 | 138 | 220 |
Choice of Grinding Jars & Grinding Balls
In order to prevent excessive abrasion, the hardness of the abrasive pots used and of the grinding balls must be higher than that of the material used. Normally, abrasive pots and grinding balls of the same material should be chosen.
2. Highly wear resistant to acid and solvents
3. High cost-effective, low wear and long lifetime
4. Highly polished, smooth, easy to clean, low abrasion to the equipment
5. High mechanical strength, good toughness, impact resistance, no broken beads

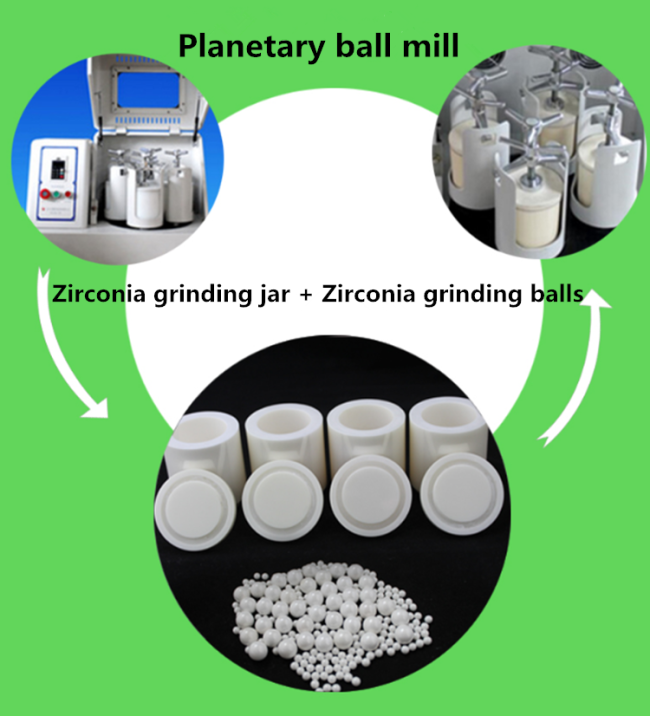

6. Mainly used for lab planetary ball mill machines
1.What's product your company supply?
A.We can supply yttrium stab.zirconia bead,cerium stab.zirconia bead,zirconia silicate bead,high alumina ball, agate ball, ball mill abrasive pot, tungsten carbide ball, zirconium powder,ceramic structual elements etc.
2. Q: What is your MOQ?
A: 1KG. We accept smaller quantity but price is higher.
3. Q: Can you provide free samples?
A: Yes, the buyers just afford shipping cost .
4. Q: What is your production time for bulk order?
A: 7~30 days, according to order quantity.
5. Q: What is your normal package?
A: Woven bag or barrel ,drum,carton box and pallet.
6. Q: What is your payment term?
A: T/T 30%-70% Deposit, balance against copy of B/L.
L/C at sight,Western Union, paypal,Visa,etc
