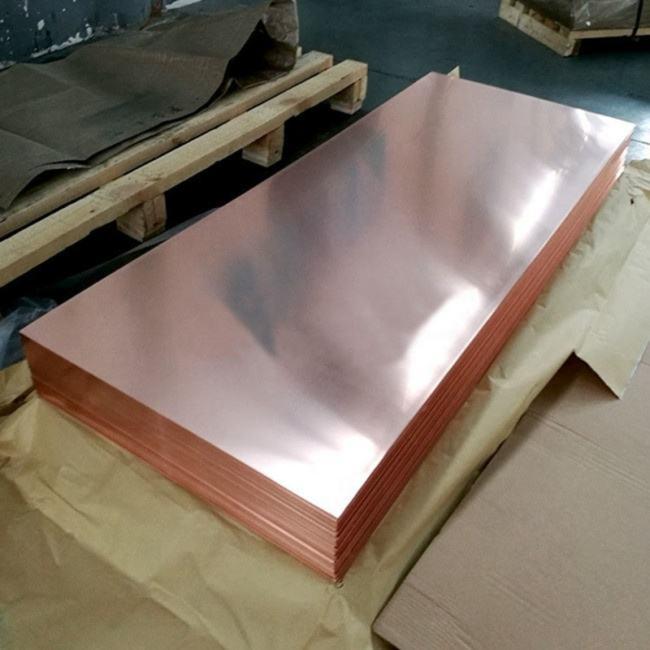

99.9% Pure Brass Plates C10200 C10300 C11000 C12000 T1 T2 Red Copper Sheets

Standard


Material


T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,
C10910,C10920,TP1,TP2,C10930,C11000,C11300,C11400,C11500,
C11600,C12000,C12200,C12300,TU1,TU2,C12500,C14200,C14420,
C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,
C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,
C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,
C70620,C71000,C71500,C71520,C71640,C72200,etc


Thickness:0.1mm~500mm
Width:4mm~2500mm
Length:1m~12m or as required.

Hardness


1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc

Surface


mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required

Singapore,Indonesia,Ukraine,Korea,Thailand,Viet Nam,Saudi Arabia,Brazil,Spain,Canada,
USA,Egypt,India,Kuwait,Dubai,Oman,Kuwait,Peru,Mexico,Iraq,
Russia,Malaysia,etc

Application


1. Pancake Coil for ACR, General Engineering Applications
2. LWC Coil for ACR, General Engineering Applications
3. Straight Copper Tubes for ACR and Refrigeration
4. Inner-grooved copper tube for ACR and Refrigeration
5. Copper Pipe for Transportation System of water, gas and oil
6.PE-coated copper tube for water/gas/oil transportation system
7.Semi-finished Copper tube for industrial applications

C11000
Cu≥99.90

It has good electrical conductivity, heat conduction, corrosion resistance and processing properties. It can be welded and brazed.
The impurities and trace amount of oxygen only have very few effect on electrical and thermal conductivity. But the trace oxygen is easy to cause "hydrogen disease", so it can’t be processed and used in high temperature (such as > 370℃).

Widely used for electric, heat conduction, corrosion resistance equipment. Such as: wire, cable, conductive screw, blasting
detonator, chemical evaporator, storage device and a variety of pipes etc.

C10200
Cu≥99.97

C10300
Cu≥99.95

High purity, excellent electrical and thermal conductivity, barely no "hydrogen disease", good processing, welding, corrosion
resistance and cold resistance performance.

C12000,C12200
Cu≥99.90

Good welding and cold bending performance. It can be processed and used in reducing atmosphere, but not in oxidizing atmosphere.
C12000 has less residual phosphorus than C12200, so its thermal conductivity are higher than C12200.

Mainly used for pipe applications, such as gasoline or gas conveying pipe, drain pipe, condensate pipe, mine pipe, condenser, evaporator, heat exchanger, train parts. It also can be processed to plate, strip, tape and rod.
