Hollow Thin Wall Copper Brass Metals Tube H59 H62 Material For Industrial
Price:
Negotiable
MOQ:
1 TON
Delivery Time:
10 days
Brand:
Antai
Product Description

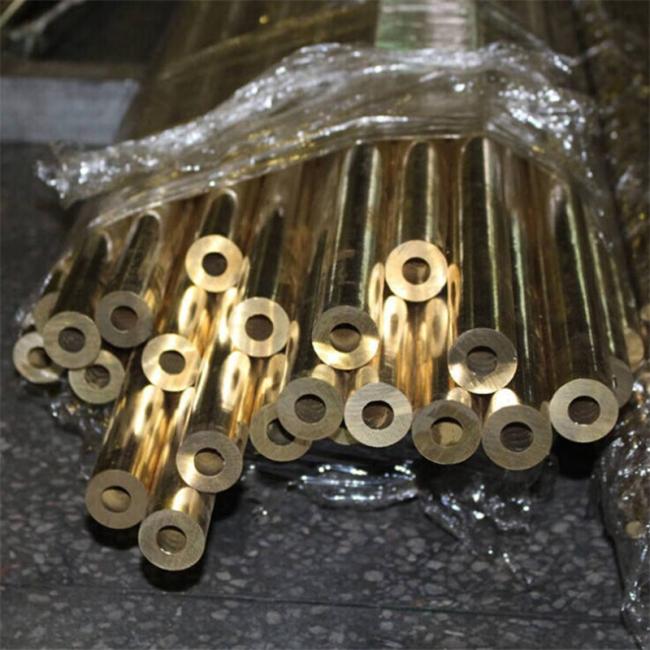

Hollow Copper Tube Thin Wall Copper Tube H59 H62 Brass Brass Tube/Pipe
| Material |
ASTM :Copper (C10200,C11000,C10100,C10200, C12000,)C11600, C27000,C27200,C27400,C2800,C31400,C33000, C35600,C37100,C36000,C35300,C37100,C37700, C37710,C37000,C68700,C41100,C44300, C61900,C63010,C62300,C63000,C63280,C63020, C17200,C17000,C17500,C17510,C18200,C18100, C18200,C16200,C19400,C14500) C70600, |
| Specifications | thickness 1mm to 220mm ,diameter 6mm to 2500mm or as customer required |
| Price Term | EX-Work, FOB, CFR, CIF |
| Application | The copper tubes are made of pure electrolysis copper. They are precise in size and smooth on surface. Besides, they are of good heat conductibility. Thus, they are widely used for heat exchangers, radiators, coolers, electro-heat-up pipe, Air conditioner and refrigerators. The straight pipes can be used for oil transportation, brake pipes, water pipes and gas pipes for construction. |
| Delivery Time | According to customer' s quantity. |
| Alloy | Chemical Composition(%) | |||||
| QB | JIS/UNS | Cu | Pb | Zn | Fe | Total Impurity |
| H62 | C2800 | 60.5~63.5 | ≤0.08 | REM | ≤0.15 | ≤0.5 |
| H65 | C2680 | 63.5~68.0 | ≤0.03 | REM | ≤0.1 | ≤0.3 |
| H70 | C2600 | 68.5~71.5 | ≤0.03 | REM | ≤0.5 | ≤0.1 |
| H80 | C2400 | 79~81 | ≤0.03 | REM | ≤0.5 | ≤0.1 |
| H90 | C2200 | 88.0~91.0 | ≤0.03 | REM | ≤0.1 | ≤0.1 |
| H96 | C2100 | 95.0~97.0 | ≤0.03 | REM | ≤0.1 | ≤0.2 |
| Brass Alloy | Tensile Strength (N/mm) | Elongation(%) | Hardness (HV) | ||||||||
| Soft | 1/2H | H | Soft | 1/2H | H | Soft | 1/4H | 1/2H | 3/4H | H | |
| C2100 (H96) | ≥205 | 270-345 | ≥280 | ≥33 | ≥18 | — | ≤65 | 65~80 | 80-100 | — | ≥100 |
| C2200 (H90) | ≥225 | 295-365 | ≥320 | ≥35 | ≥20 | — | ≤70 | 70~95 | 95-120 | — | ≥120 |
| C2300 (H85) | ≥245 | 310-385 | ≥340 | ≥40 | ≥23 | — | ≤70 | 70~95 | 95-120 | — | ≥120 |
| C2400 (H80) | ≥255 | 320-405 | ≥375 | ≥44 | ≥25 | — | ≤80 | 75-105 | 100-130 | — | ≥125 |
| C2600 (H70) | ≥295 | 370-440 | 430-510 | ≥5 | ≥30 | ≥14 | ≤90 | 90-105 | 105-130 | 130-145 | 145-160 |
| C2680 (H65) | ≥295 | 370-440 | 430-510 | ≥45 | ≥30 | ≥14 | ≤90 | 90-105 | 105-130 | 130-145 | 145-160 |
| C2720 (H63) | ≥295 | 370-440 | 430-510 | ≥45 | ≥30 | ≥14 | ≤90 | 90-105 | 105-130 | 130-145 | 145-160 |
| C2800 (H62) | ≥320 | 410-490 | ≥450 | ≥35 | ≥15 | — | — | 85-105 | 105-130 | — | ≥130 |
