Thick Wall Copper Brass Metals Tube CuZn35 CuZn37 C43400 C43400 Material
Price:
Negotiable
MOQ:
1 TON
Delivery Time:
10 days
Brand:
Antai
Product Description

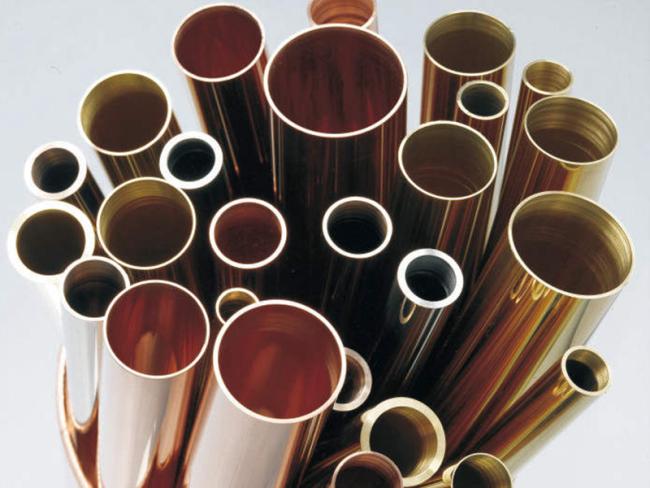

CuZn35 CuZn37 C43400 C43400 Brass Tube Thick Wall Induction Soldering Copper Pipes
| Standard | AiSi, ASTM, bs, DIN, GB, JIS,etc |
| Certification | CE,ISO 9001, etc |
| Cu (Min) | 99.99% |
| Alloy Or Not | Non-Alloy |
| Elongation (≥ %) | 40% |
| Wall Thickness | 0.3mm~80mm,According to customer requirements |
| Outside Diameter | 2mm~610mm,According to customer requirements |
| Model Number | C1100 C1200, ETC |
| Application | Air Condition Or Refrigerator,etc |
| Processing Service | Bending, Decoiling, Welding, Punching, Cutting |
| Type | pancake coil cooper pipe, straight cooper pipe and capillary |
| MOQ | 1000 KG |
| Package | Standard Seaworthy Package,According to customer needs |
| Sample | Available |
| Payment Term | T/T,D/P,L/C,/D/A/,Western Union,MoneyGram,according to customer |
| Delivery Time | within 7 days,according to the quantity ordered by the customer |
| Alloy | Chemical Composition(%) | |||||
| QB | JIS/UNS | Cu | Pb | Zn | Fe | Total Impurity |
| H62 | C2800 | 60.5~63.5 | ≤0.08 | REM | ≤0.15 | ≤0.5 |
| H65 | C2680 | 63.5~68.0 | ≤0.03 | REM | ≤0.1 | ≤0.3 |
| H70 | C2600 | 68.5~71.5 | ≤0.03 | REM | ≤0.5 | ≤0.1 |
| H80 | C2400 | 79~81 | ≤0.03 | REM | ≤0.5 | ≤0.1 |
| H90 | C2200 | 88.0~91.0 | ≤0.03 | REM | ≤0.1 | ≤0.1 |
| H96 | C2100 | 95.0~97.0 | ≤0.03 | REM | ≤0.1 | ≤0.2 |
| Brass Alloy | Tensile Strength (N/mm) | Elongation(%) | Hardness (HV) | ||||||||
| Soft | 1/2H | H | Soft | 1/2H | H | Soft | 1/4H | 1/2H | 3/4H | H | |
| C2100 (H96) | ≥205 | 270-345 | ≥280 | ≥33 | ≥18 | — | ≤65 | 65~80 | 80-100 | — | ≥100 |
| C2200 (H90) | ≥225 | 295-365 | ≥320 | ≥35 | ≥20 | — | ≤70 | 70~95 | 95-120 | — | ≥120 |
| C2300 (H85) | ≥245 | 310-385 | ≥340 | ≥40 | ≥23 | — | ≤70 | 70~95 | 95-120 | — | ≥120 |
| C2400 (H80) | ≥255 | 320-405 | ≥375 | ≥44 | ≥25 | — | ≤80 | 75-105 | 100-130 | — | ≥125 |
| C2600 (H70) | ≥295 | 370-440 | 430-510 | ≥5 | ≥30 | ≥14 | ≤90 | 90-105 | 105-130 | 130-145 | 145-160 |
| C2680 (H65) | ≥295 | 370-440 | 430-510 | ≥45 | ≥30 | ≥14 | ≤90 | 90-105 | 105-130 | 130-145 | 145-160 |
| C2720 (H63) | ≥295 | 370-440 | 430-510 | ≥45 | ≥30 | ≥14 | ≤90 | 90-105 | 105-130 | 130-145 | 145-160 |
| C2800 (H62) | ≥320 | 410-490 | ≥450 | ≥35 | ≥15 | — | — | 85-105 | 105-130 | — | ≥130 |
