TS220C Dual Sensor Gimbal Payload EO MWIR IR With Laser Range Finder
The TS220C is a gyro-stabilized multiple spectral aviation electro-optic system featuring a 30X EO sensor, cooled MWIR, 360° continuous rotation servo motor, and high-precision visual axis stabilization. With a total weight of approximately 5.5kg, this lightweight system incorporates mature pan-tilt servo technology with high stabilization accuracy. It includes character overlay, customization, and display functions, and can be mounted on UAVs, ships, and vehicles for maritime and aerial applications.
The TS220C dual sensor gimbal payload integrates laser rangefinder and laser irradiation functions, making it widely suitable for marine surveillance operations.
System Functions
- Provides infrared video and imagery for detection areas
- High-precision visual axis stabilization
- Detection and recognition capabilities for ground targets
- Supports search, tracking, lock, and guiding operational modes
- Character overlay, customization, and display functions
- Self-check and fault diagnosis capabilities
- Target position support
- Comprehensive self-inspection and fault diagnosis
Technical Specifications
EO Sensor
| Parameter | Specification |
|---|---|
| Wavelength | 0.4μm～0.9μm |
| Resolution | 1920x1080 |
| Focal Length | 5.9mm～265.5mm (45X) |
| Field of View | 56.3°～1.9° |
| Video Output | HD-SDI (1080P 30Hz) |
| Detection Distance | People: Detection 6.6km; Recognition 1.6km Vehicle: Detection 15.2km; Recognition 9.9km |
IR Sensor
| Parameter | Specification |
|---|---|
| IR Type | MWIR (cooled) |
| Wavelength | 3~5μm |
| Resolution | 640x512 |
| Pixel Size | 15μm |
| NETD | 25mk |
| Focus Length | 18mm~275mm/F5.5, continuous zoom |
| Field of View | 29.8º~2°(±5%) |
| Detection Distance | People: Detection 3km; Recognition 1km Vehicle: Detection 15km; Recognition 6km |
Laser Rangefinder (LRF)
| Parameter | Specification |
|---|---|
| Wavelength | 1064nm±10nm |
| Energy | ≥25mj |
| Ranging Distance | ≥8Km |
| Ranging Accuracy | ≤±2m |
| Ranging Frequency | Single ,1HZ, 5HZ |
Servo System
| Parameter | Specification |
|---|---|
| Rotating Limits | nx360° continuous rotation, Pitch: -110° ~+10° |
| Angular Accuracy | ≤2mrad |
| Stable Accuracy | ≤100μrad (1σ) (2°/1Hz, 1°/2Hz Swing) |
| Maximum Angular Speed | ≥60°/s |
| Maximum Angular Acceleration | ≥90°/S² |
Tracking Functions
| Parameter | Specification |
|---|---|
| Tracking Rate | 30pixels/frame |
| Minimum Target Contrast | 8% |
| Minimum Target Imaging | 4x3 pixels |
| Features | Anti-occlusion and no loss |
Interface
| Parameter | Specification |
|---|---|
| Communication Interface | RS422 x2 (TTL optional) |
| Video | ethernet |
Mechanical Drawing
Company Profile
Chengdu HONPHO Technology Co., Ltd. was established in March 2018 as a national high-tech enterprise specializing in R&D, intelligent manufacturing, and service of high-end photoelectric systems. HONPHO's main products are spherical photoelectric payload systems, widely deployed on UAVs, unmanned ships, unmanned vehicles, helicopters, and low-speed fixed-wing aircraft, particularly for reconnaissance and strike UAVs and armed helicopters.
The company occupies nearly 5,000 square meters of space to support R&D, production, operations, and office needs. With over 100 employees, including 2 national senior experts, 3 doctors, 21 masters, 10 technical experts with senior titles, and 4 researchers, HONPHO has won more than 10 national and national defense science and technology progress awards and holds over 20 intellectual property rights. The company is committed to becoming a world-renowned high-tech enterprise in photoelectric systems.

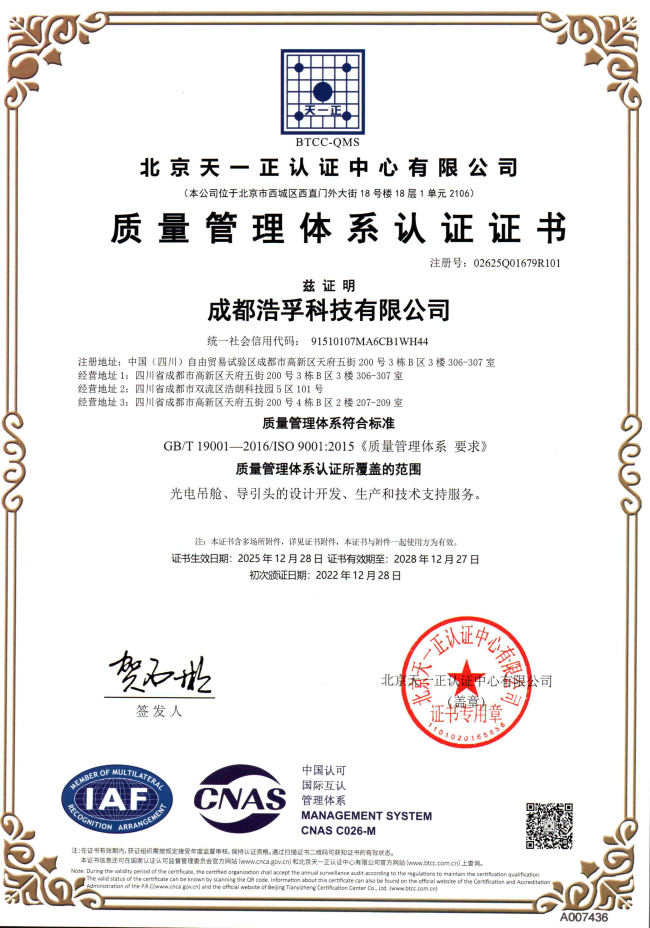

Certificate of HONPHO
