TS240C Dual Sensor UAV Gimbal Camera with 360° Continuous Rotation, Laser Range Finder, and High-Precision Stabilization for Precision Surveillance
Price:
Negotiation
MOQ:
1
Delivery Time:
Negotiable
Brand:
HONPHO
Product Description
TS240C Dual Sensor UAV Gimbal Camera with Laser Range Finder
The TS240C is a gyro-stabilized multi-spectral aviation electro-optic system featuring 15X EO sensor, cooled MWIR, 360° continuous rotation servo motor, and high-precision visual axis stabilization. With a total weight of approximately 10kg, this lightweight system incorporates mature pan-tilt servo technology with high stabilization accuracy.
This dual sensor gimbal payload integrates laser rangefinder and laser irradiation functions, making it widely suitable for marine surveillance operations and precision aerial applications.
System Functions
- Provides infrared video and imagery for detection areas
- High-precision visual axis stabilization
- Detection and recognition capabilities for ground targets
- Supports search, tracking, lock, and guiding operational modes
- Character overlay, customization, and display functions
- Self-check and fault diagnosis capabilities
- Target position support
- Comprehensive self-inspection and fault diagnosis
Technical Specifications
Visible Camera (EO)
| Parameter | Specification |
|---|---|
| Wavelength | 0.4μm～0.9μm |
| Resolution | 1920x1080 |
| Focal Length | 10mm～150mm (15X) |
| Field of View | 35°～2.3° |
| Video Output | HD-SDI (1080P 30Hz) |
| Detection Distance | People: Detection 6.6km; Recognition 1.6km Vehicle: Detection 15.2km; Recognition 9.9km |
Thermal Camera (IR)
| Parameter | Specification |
|---|---|
| IR Type | MWIR (cooled) |
| Wavelength | 3~5μm |
| Resolution | 640x512 |
| Pixel Size | 15μm |
| NETD | 25mk |
| Focus Length | 19mm~275mm/F5.5 |
| Field of View | 28º~2.05° |
| Detection Distance | People: Detection 3km; Recognition 1km Vehicle: Detection 15km; Recognition 6km |
Laser Designator
| Parameter | Specification |
|---|---|
| Wavelength | 1064nm |
| Energy | 60mj |
| Ranging Distance | 180m~10km |
| Ranging Accuracy | 2m |
| Ranging Frequency | 1~5HZ |
Servo
| Parameter | Specification |
|---|---|
| Rotating Limits | nx360° continuous rotation, Pitch: -120° ~+90° |
| Angular Accuracy | ≤2mrad |
| Stabilization Accuracy | ≤100μrad (1σ) (2°/1Hz, 1°/2Hz Swing) |
| Maximum Angular Speed | ≥60°/s |
| Maximum Angular Acceleration | ≥90°/S² |
Tracking Functions
| Parameter | Specification |
|---|---|
| Motion Speed | 30pixel/frame |
| Target Imaging Contrast | 8% |
| Minimum Target Imaging Pixel | 4x3 pixels |
| Support | Anti-occlusion without loss of function |
Interface
| Parameter | Specification |
|---|---|
| Communication | RS422 x2 |
| Video | HDSDI x1 |
Manufacturer Information
Chengdu HONPHO Technology Co., Ltd.
Established in March 2018 as a national high-tech enterprise specializing in R&D, intelligent manufacturing, and service of high-end photoelectric systems. HONPHO's main products are spherical photoelectric payload systems, widely deployed on UAVs, unmanned ships, unmanned vehicles, helicopters, and low-speed fixed-wing aircraft, particularly for reconnaissance and strike UAVs and armed helicopters.
The company occupies nearly 5,000 square meters of space to support R&D, production, operations, and office needs. With over 100 employees, including 2 national senior experts, 3 doctors, 21 masters, 10 technical experts with senior titles, and 4 researchers, HONPHO has won more than 10 national and national defense science and technology progress awards and holds over 20 intellectual property rights.

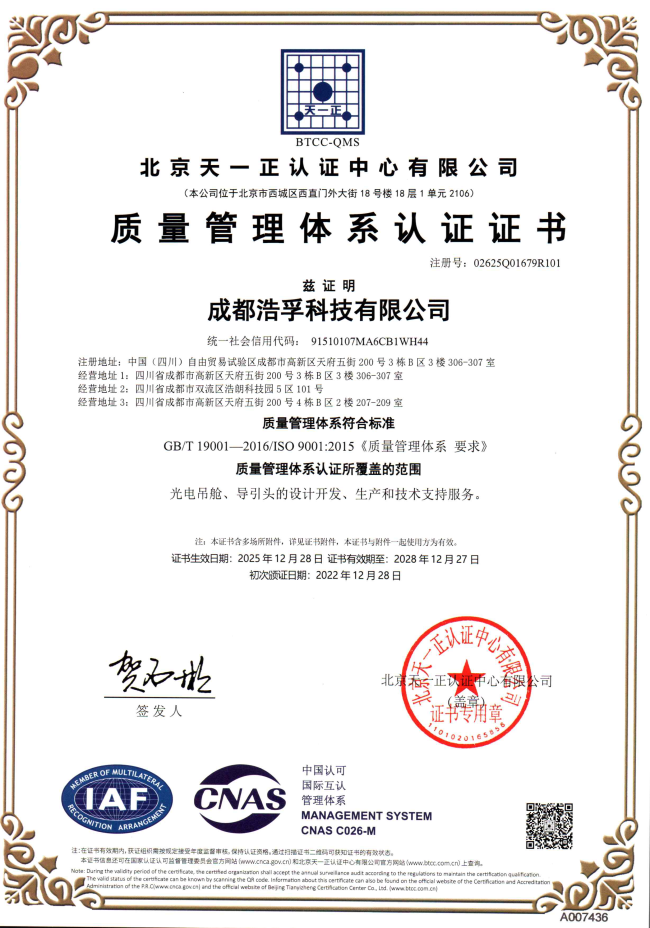

Certification
