Accurate Positioning Heavy Duty Cylindrical Grinding Machine Manual
Price:
USD 2000-50500
MOQ:
1 set
Delivery Time:
30-45days
Product Description

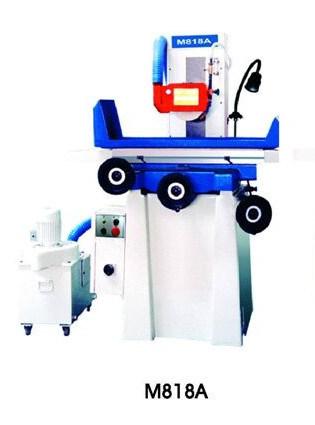

High Precision Manual Surface Grinder Machine
Company Info.
Basic Info.
Model NO.
M818A
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max. Width to Be Ground(mm)
220
Max. Length to Be Ground(mm)
470
Max. Height to Be Ground(mm)
350
Permanent Magnetic Chuck Size(mm)
200X400
Max.Load Capacity (Include Permanent Mag
128kg
Transport Package
Carton or Wood Case
Specification
CE ISO
Trademark
GNG MACHINE
Origin
China
HS Code
84595900
Production Capacity
1000 Sets/Month
Product Description
| M SG manual surface grinder | |||
| Item/Model | unit | M818A | |
| max. width to be ground | mm | 220 | |
| max. length to be ground | mm | 470 | |
| max. height to be ground | mm | 350 | |
| table size | mm | 210x450x | |
| permanent magnetic chuck size(optional) | mm | 200x400 | |
| max.longitudinal travel | mm | 500 | |
| max.cross travel | mm | 240 | |
| max.distance from spindle center to table surface | mm | 450 | |
| feed of vertical handwheel | per rev. | mm | 1 |
| per div. | mm | 0.005 | |
| grinding wheel size(ODxWxID) | mm | 200x13x31.76 | |
| spindle speed | r/min | 3450(60Hz),2850(51Hz) | |
| power of spindle head | kw | standard 1.5(build in spindle:1.2KW) | |
| max.load capacity (include permanent magnetic chuck) | kg | 128 | |
| machine weight | kg | 920 | |
package dimension(LxWxH)(mm):1153x1413x1950
package size(dismantle table(LxWxH)(mm):1400x1120x1980
