3 Inch 10 Inch Self Floating Dredge Hose Floats Sand Slurry Coral Mud Transfer Thermoplastic
Self floating rubber hose
Floating tubes are a very cheap solution. Worn hose components can be easily replaced by pulling the rubber float on the new hose component. However, the steel tubing makes this floating line less flexible and reduces its applicability in rough seas. Therefore, these hoses must be used with swim hoses. Floating pipes are a more flexible yet very robust solution for transporting manure on land.For better wear resistance, the float tube is also available in BoneCrusher? Version with wear-resistant steel rings embedded in the rubber.
The main features are
* Low initial cost
* High performance
* Easy replacement
* Optimal geometric design
* High wear resistance
Technical parameters:
| Item | Standard | Test result | |
| Breaking Strength Mpa | Inner layer≥18 | 21.30 | |
| Out layer≥10 | 12.92 | ||
| Breaking Elongation% | Inner Layer ≥450 | 650.11 | |
| Out Layer≥450 | 574.95 | ||
| Aging Coefficient | Strength％ | +25 〜-25 | -3 |
| Elongation% | +10〜-30 | -1 | |
| Adhesive force kn/m | Coil cloth and inner rubber layer | 6 | 6.8 |
| Coil cloth and coil cloth | 6 | 7.3 | |
| Coil cloth and out rubber layer | 6 | 6.2 | |
| Wear loss cm3/1.61km | Inner Rubber W0.3 | 0.24 | |

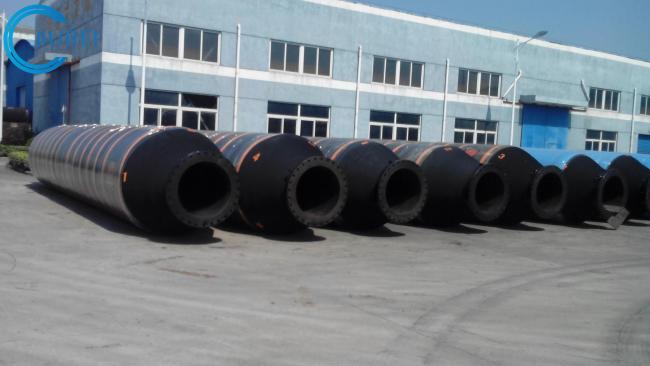

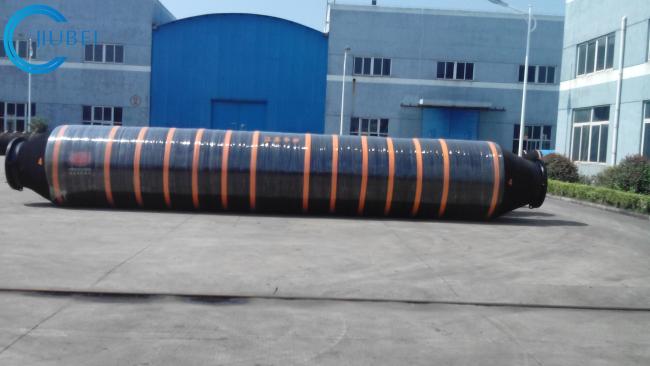

Detail images:

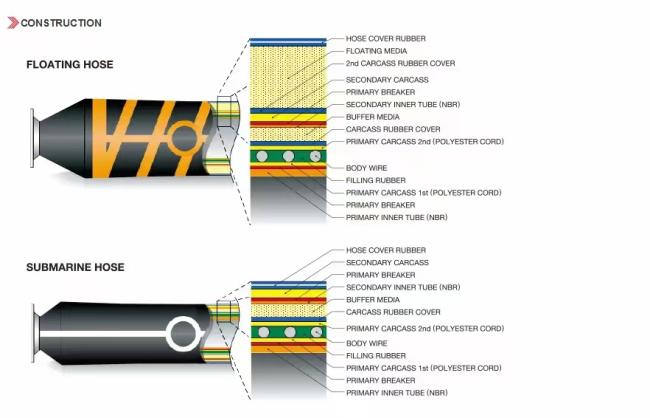

Structure of the self floating rubber hose:
