6 8 Inch Heavy Duty Rubber Discharge Hose For Pool Abrasion Resistant Natural Marine
Price:
usd50-500/unit
MOQ:
1unit
Delivery Time:
7working days
Brand:
JiuBei
Product Description

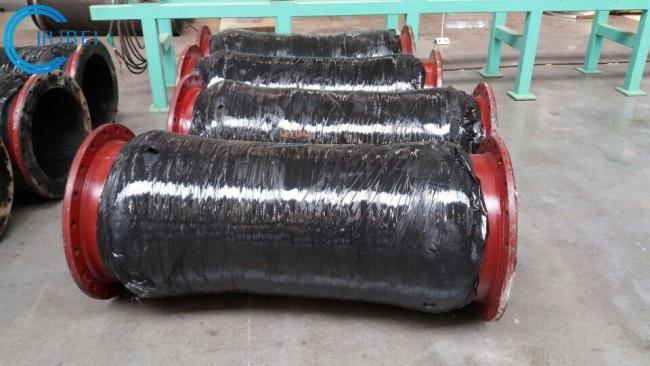

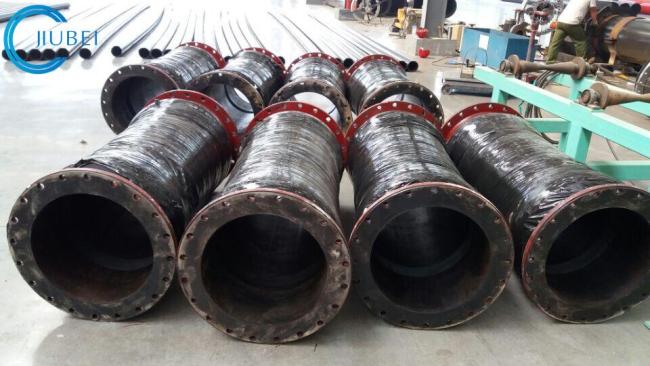

Sand/slurry dredging rubber discharge hose
Used for port ,dock,discharge seawater,silt,sand,flood,etc.Particularly suited to the work Of dredging construction for dock and port,Building Project and so no.The suction hose has good stiffness,can not be abnormal abrasion,the arch and eddy of some part place of inner rubber that is formed by the bend of the storm and tide.
Inner layer: NR,BR and SBR compound
synthetic rubber;
Reinforcement: high tensile strength fabrics
with helix steel wire；
Cover:NR+CR；
Ideal working temperature: -20 to 70℃；
Safety factor: 5:1
Dimension:
| I.D | W.P. | B.P. | Length | Reference Thickness | |
| mm | Tolerance(mm) | bar | bar | m | mm |
| 300 | ±2 | 4~12 | 36 | 1~3 | 34~37 |
| 450 | ±2 | 4~12 | 36 | 1~3 | 34~37 |
| 560 | ±3 | 4~12 | 36 | 2~3 | 40~45 |
| 600 | ±3 | 4~12 | 36 | 2~3 | 40~45 |
| 700 | ±3 | 8~15 | 45 | 2~3 | 40~45 |
| 800 | ±4 | 12~25 | 55 | 2~3 | 50~52 |
| 900 | ±4 | 15~25 | 75 | 2~3 | 55~58 |
| 1000 | ±5 | 20~25 | 75 | 3~5 | 75 |
| 1100 | ±5 | 25~30 | 80 | 3~5 | 90 |
| Customer made acceptable. | |||||
Inspection of rubber discharge hose:
