12inch Hdpe Pipe Dock Floats Discharge Sand Slurry Sea Dredging High Buoyancy

Price Negotiable

Price: USD50~500/pair

MOQ: 10 pairs

Delivery Time: 10days

Brand: JiuBei

Product Description

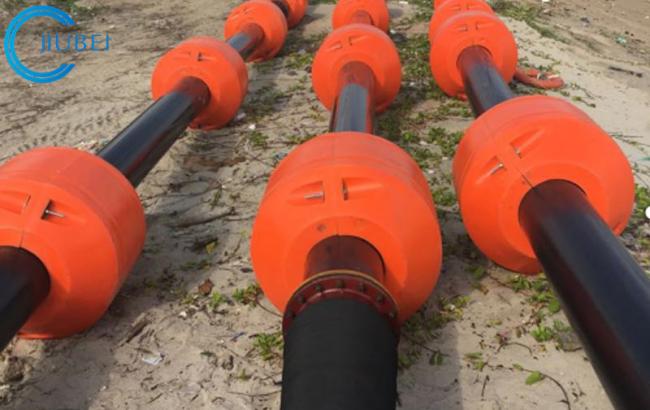

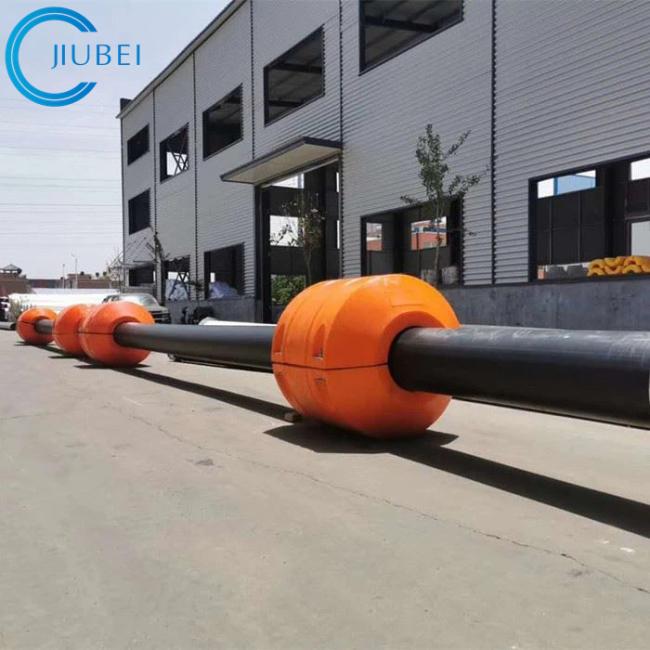

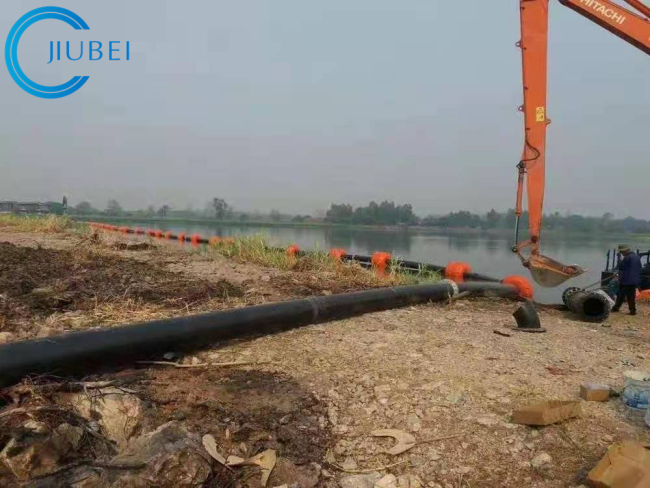

HDPE dredge sand discharge slurry pipe for sea dredging

High bearing capacity, light weight, strong wear resistance, easy installation and handling, low transportation and transfer cost, stable and durable cylinder, with a buoyancy of more than 350kg per square meter.

The service life of this product is more than 15 years. Except for strong natural force and artificial improper use, it does not need to spend any maintenance and repair costs.

PE Float Dimension:

Float I.D. (mm)	Float O.D.(mm)	Float Length(mm)	Thickness of Hull(mm)	Floater Buoyancy (kg)
110	500	500	7	98
125	500	800	7	150
160	500	800	7	145
220	600	700	7	180
250	600	700	7	175
280	700	900	7	340
310	900	1000	8	550
320	1000	1000	9	650
350	950	1000	9	600
390	1000	1000	9	600
400	1100	1100	9	900
450	1200	1200	11	1100
460	1300	1300	12	1400
495	1300	1300	12	1400
520	1300	1450	12	1500
550	1300	1500	12	1750
560	1400	1500	12	1900
600	1400	1600	13	2100
620	1450	1700	13	2400
670	1500	1860	14	2800
720	1500	1860	14	2800
735	1500	1800	14	2700
760	1800	2050	15	3100
800	1800	2160	15	3300
890	2000	2400	15	4600
940	2040	2500	16	4900
1040	2400	2600	16	7000
1140	2300	2550	16	7000
