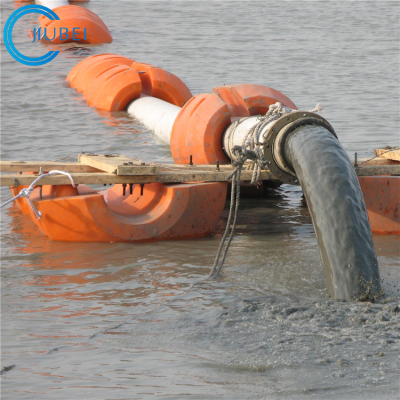

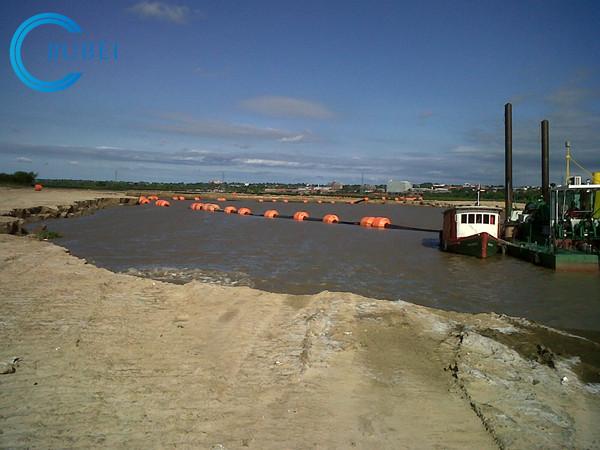

Hose UHMWPE Pipe Diameter 1000MM Sand Dredging Pipelines Petroleum Transport
Sand Dredging Pipelines Petroleum Transport UHMWPE Pipes
Advantage:
Our HDPE water supply and drain pipes are manufactured for excellent performance and long life.
• Its butt joints eliminate potential leak points, common with ductile iron 10 to 20 feet long, with a zero leak rate.
• Highly resistant to corrosion and weathering, recent studies conclude that it will last at least 50 years.
• Lightweight and flexible for easy installation, eliminating the need for accessories when changing orientation and making it ideal for use in earthquake-prone areas.
• High strength walls give it the highest PE pressure levels, excellent resistance to SCG and increased resistance to rapid crack growth.
• The labor stress level of high performance PE plastic makes it a superior choice over ductile iron or steel pipes, especially for large diameter pipes.
UHMWPE Pipe Specification
O.D. | 0.4MPa | 0.6MPa | 0.8MPa | 1MPa | 1.25MPa | 1.65MPa | 2.0MPa | |
Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | ||
| 110 | 4.7 | 6.0 | 7.4 | 9.2 | 11.4 | |||
| 125 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | |||
| 140 | 6.0 | 7.7 | 9.5 | 11.8 | 14.6 | |||
| 160 | 5.2 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | ||
| 180 | 5.9 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||
| 219 | 6.5 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | ||
| 225 | 4.9 | 7.3 | 9.7 | 11.9 | 14.8 | 18.4 | 22.7 | |
| 250 | 5.5 | 8.1 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | |
| 280 | 6.2 | 9.1 | 12.0 | 15.0 | 18.7 | 23.2 | 28.6 | |
| 315 | 6.9 | 10.2 | 13.5 | 16.9 | 21.1 | 26.1 | 32.2 | |
| 350 | 7.8 | 11.5 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | |
| 400 | 8.8 | 13.0 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | |
| 450 | 9.8 | 14.6 | 19.1 | 13.9 | 29.7 | 36.8 | ||
| 500 | 11.0 | 16.2 | 21.4 | 26.7 | 33.2 | 41.2 | ||
| 560 | 12.3 | 18.2 | 24.1 | 30.0 | 37.4 | |||
| 630 | 13.8 | 20.5 | 27.2 | 33.9 | 42.1 | |||
| 700 | 15.3 | 22.7 | 30.6 | 38.1 | ||||
| 800 | 18.0 | 26.0 | 38.1 | |||||
| 900 | 20.0 | 30.0 | 42.1 | |||||
| 1000 | 22.0 | 33.0 |
Lower Coefficient of Friction
The UHMWPE material is regarded as the ideal cost/performance abrasive resistant material in the tribology field. With good friction coefficient of 0.07-0.11, and good self lubrication, the UHMWPE material will be difficult to have sea growth.
| Material | No Lubrication | Water Lubrication | Oil Lubrication |
| UHMWPE | 0.1-0.22 | 0.05-0.1 | 0.05-0.08 |
| PTFE | 0.04-0.25 | 0.04-0.08 | 0.04-0.05 |
| POM | 0.15-0.35 | 0.1-0.20 | 0.05-0.10 |
| Nylon 66 | 0.15-0.40 | 0.14-0.19 | 0.02-0.11 |
