Braided Armoured Hose Suppliers Floating Hose Steel Flange For Drilling Industry
Armored Hose / Floating Hose With Steel Flange
Specifications
1)-30~121Degrees Celsius
2)Inner diameter: 2'~4'
3)Pressure: 5000psi~20000psi
4)the only one through API 16C in China
(1) Applicability
Commonly used in drilling,cementing,work over service as flexible connection for choke and kill manifold to transport water base mud or oil base mud,washing fluid at high pressure in large volumes and hydraulic control pipe line for BOP control equipments.
(2) Operating Temperature
-30°C~+121°C
(3) Tube
Principally compounded rubber, featuring oil-resistant, abrasion-resistant, acid&alkali-resistant and corrosion-resistant nitrile butadiene rubber.
(4) Reinforcement
2~8 layers spiraled by high-strength steel wire.
(5) Cover
Featuring oil-resistant,low temperature,weather proof and anti-ageing neoprene rubber.
(6) Outer protective
Stainless steel armoured
(7) Fittings
Swaged fitting with API thread, and can be connected with hammer union hubs,flanges or clamp,integral type union joint and flang joint.It also can be upon customer's requirement
(8) Standard
API Spec 16C(the only one through the authentication)
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||

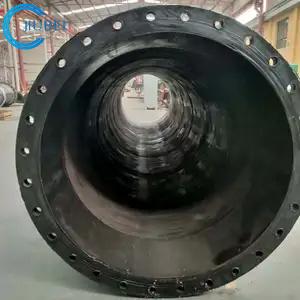

Detail images:

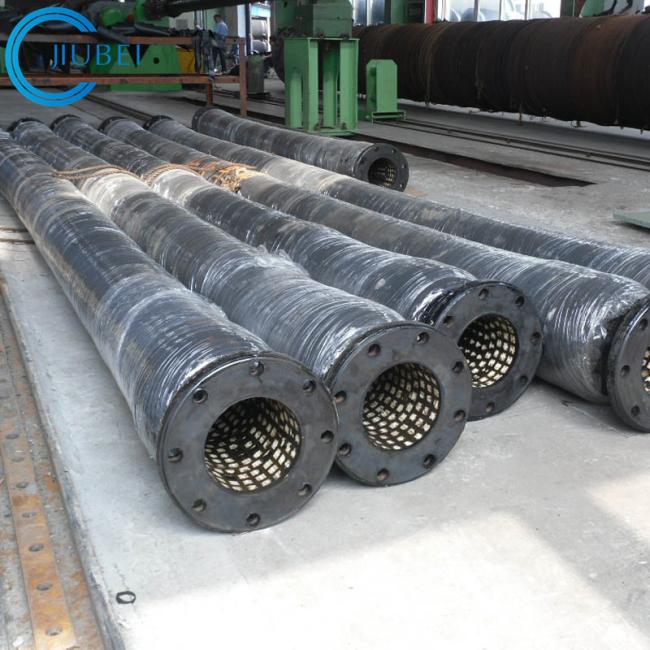

Inspection of heavy duty armored rubber hose:
