16 Inch 3 Inch Armoured Hose Marine Floating Dredging Hose Wear Resistance Flexible
Marine floating dredging hose
Our armored hoses are reinforced with HB steel rings and are suitable for dredging operations that involve highly abrasive materials such as cape rock, coral, limestone and other damaging materials. The flexibility and strength of armored hoses are absolutely necessary for dredging projects in order to minimize downtime.
Lining
The lining of these armored dredger pipes consists of abrasion-resistant synthetic rubber reinforced with high-strength protective layers.
Reinforcement
The body of the reinforced tubes is made of rubber with high resistance to fatigue and the integrated slip rings are made of material > 450 HB.
cover
The outer cover consists of abrasion, weather, sea water and oil resistant synthetic rubber.The rubber hose coating includes reinforcement layers coated in either black with a bright orange spiral stripe or heavy-duty bright orange polyurethane.
1. Ideal operating temperature: -25ºC to 80ºC
2. Safety factor: 3:1
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||

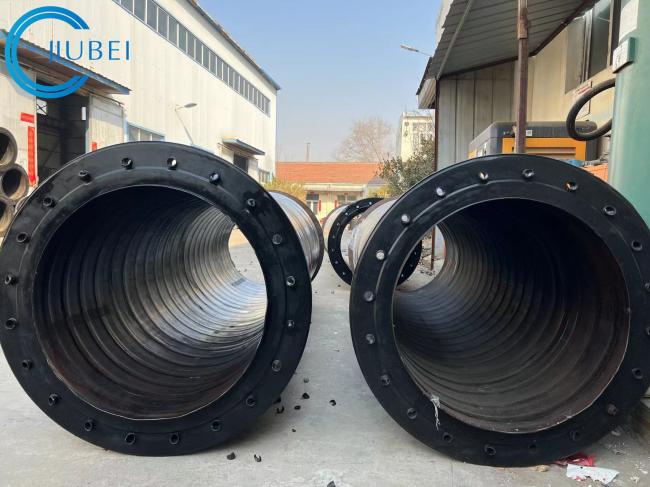

Detail images:

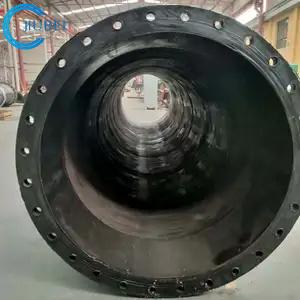

Inspection of heavy duty armored rubber hose:
