Anti Corrosion Uhmwpe Lined Tubing Mine Tailing Discharging

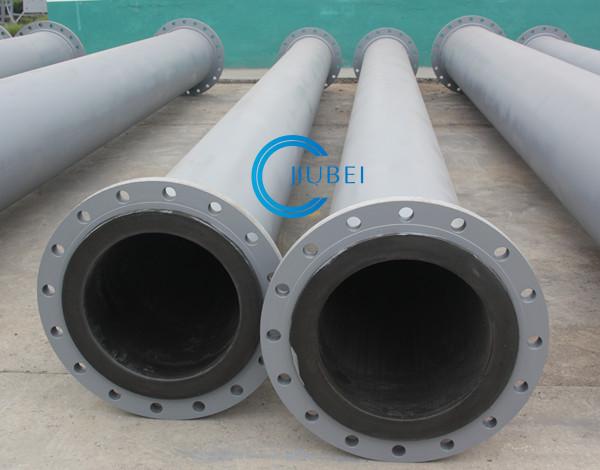

Anti corrosion UHMWPE pipe lined steel pipe for mine tailing discharging
UHMWPE has the following impressive values: up to 15 times more abrasion resistance than steel, while being 8 times lighter than steel and 5 times lower coefficient of friction than steel, while offering only 1/10 the stress loss of steel pipe. UHMWPE pipe is ideal for conveyance of pulverized coal and ash in power plants, power lines, transportation of overburden and sludge in mines, high-pressure conveyance of pulverized coal and coal slurry water
in coal processing plants in the coal industry, and transportation of sludge and corrosive liquids containing slag in other industries.
UHMWPE material weighs 1/8th the weight of mild steel but has high tensile strength. Unlike steel, UHMWPE is an economical alternative to metals and ceramics because it is self-lubricating, durable, and resistant to abrasion and corrosion. UHMWPE is suitable for piping applications that require high abrasion resistance combined with low friction.Ultra high molecular weight PE
has been a proven material in the paper, transport, machinery and fishing industries for many years.
Specaifications:
O.D. | 0.4MPa | 0.6MPa | 0.8MPa | 1MPa | 1.25MPa | 1.65MPa | 2.0MPa | |
Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | Thickness | ||
| 110 | 4.7 | 6.0 | 7.4 | 9.2 | 11.4 | |||
| 125 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | |||
| 140 | 6.0 | 7.7 | 9.5 | 11.8 | 14.6 | |||
| 160 | 5.2 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | ||
| 180 | 5.9 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||
| 219 | 6.5 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | ||
| 225 | 4.9 | 7.3 | 9.7 | 11.9 | 14.8 | 18.4 | 22.7 | |
| 250 | 5.5 | 8.1 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | |
| 280 | 6.2 | 9.1 | 12.0 | 15.0 | 18.7 | 23.2 | 28.6 | |
| 315 | 6.9 | 10.2 | 13.5 | 16.9 | 21.1 | 26.1 | 32.2 | |
| 350 | 7.8 | 11.5 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | |
| 400 | 8.8 | 13.0 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | |
| 450 | 9.8 | 14.6 | 19.1 | 13.9 | 29.7 | 36.8 | ||
| 500 | 11.0 | 16.2 | 21.4 | 26.7 | 33.2 | 41.2 | ||
| 560 | 12.3 | 18.2 | 24.1 | 30.0 | 37.4 | |||
| 630 | 13.8 | 20.5 | 27.2 | 33.9 | 42.1 | |||
| 700 | 15.3 | 22.7 | 30.6 | 38.1 | ||||
| 800 | 18.0 | 26.0 | 38.1 | |||||
| 900 | 20.0 | 30.0 | 42.1 | |||||
| 1000 | 22.0 | 33.0 |
Technical parameters:
Detail images:
