Sand Dredging Mud Oil Water Mine UHMWPE Pipe
Ultra High Molecular Weight Polyethylene (UHMWPE) pipe is a kind of thermoplastic engineering plastic pipe with a molecular weight of over 2.5 million viscosity. UHMWPE is called "excellent plastic", a new material star. It will manifest a strong life and play an important role in many fields.
Main Attribute:
1.extremely high wear resistance;
2. Very high impact strength;
3. good self-lubricating;
4. not easy to dirty;
5. Good corrosion resistance;
6 .High tensile strength and tensile strength;
7. Unique low temperature resistance;
8. long service life;
9. easy installation.
areas of application:

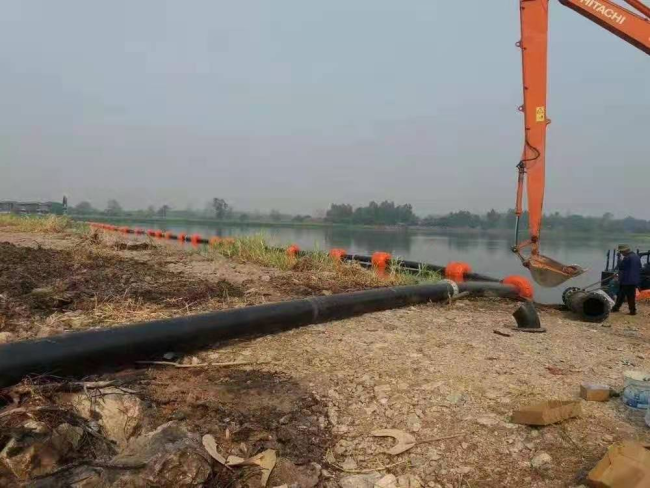

1.For transporting sand, mud and river mud, port, dredging sea water;
2. Transporting scum and sludge in metallurgical mines and mining industry;
3. Transporting powdered coal ash and slag in thermal power plants 4. Transporting crushed coal and coal water slurry of coal processing plants;
5. Transporting sludge, corrosive substances containing slag in the chemical industry;
6 .To transport crude oil, oil and food.
|
O.D. DN(mm) |
0.4MPa | 0.6MPa | 0.8MPa | 1MPa | 1.25MPa | 1.65MPa | 2.0MPa | |
|
Thickness mm |
Thickness mm |
Thickness mm |
Thickness mm |
Thickness mm |
Thickness mm |
Thickness mm |
||
| 110 | 4.7 | 6.0 | 7.4 | 9.2 | 11.4 | |||
| 125 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | |||
| 140 | 6.0 | 7.7 | 9.5 | 11.8 | 14.6 | |||
| 160 | 5.2 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | ||
| 180 | 5.9 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | ||
| 219 | 6.5 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | ||
| 225 | 4.9 | 7.3 | 9.7 | 11.9 | 14.8 | 18.4 | 22.7 | |
| 250 | 5.5 | 8.1 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | |
| 280 | 6.2 | 9.1 | 12.0 | 15.0 | 18.7 | 23.2 | 28.6 | |
| 315 | 6.9 | 10.2 | 13.5 | 16.9 | 21.1 | 26.1 | 32.2 | |
| 350 | 7.8 | 11.5 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | |
| 400 | 8.8 | 13.0 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | |
| 450 | 9.8 | 14.6 | 19.1 | 13.9 | 29.7 | 36.8 | ||
| 500 | 11.0 | 16.2 | 21.4 | 26.7 | 33.2 | 41.2 | ||
| 560 | 12.3 | 18.2 | 24.1 | 30.0 | 37.4 | |||
| 630 | 13.8 | 20.5 | 27.2 | 33.9 | 42.1 | |||
| 700 | 15.3 | 22.7 | 30.6 | 38.1 | ||||
| 800 | 18.0 | 26.0 | 38.1 | |||||
| 900 | 20.0 | 30.0 | 42.1 | |||||
| 1000 | 22.0 | 33.0 |

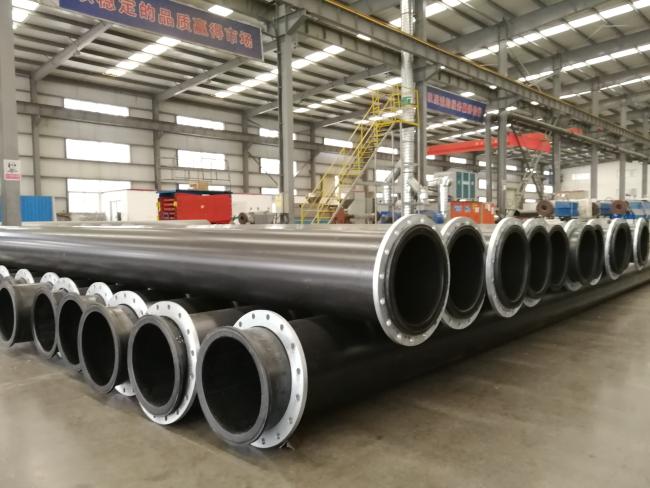

Detail images:
