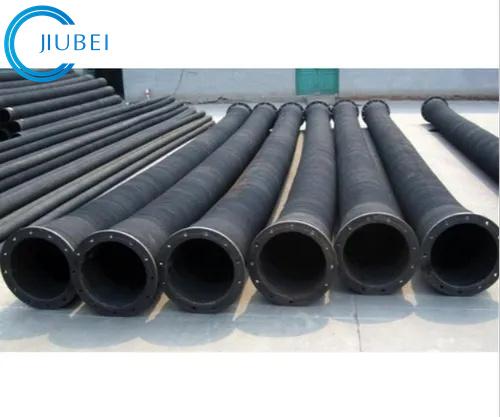

8 Inch Dredging Rubber Suction Hose For Sale Floating Sand Mud Oil Water Mining Discharge Flexible
Dredging Floating Sand Mud Oil Water Mining Drilling Rubber Suction Discharge Flexible Hose
Dredging Rubber Hose for mining work:
1. Tube: Black abrasion resistant Natural Rubber
2. Reinforcement: Multiple plies of polyester fabric with a spring steel helix wire.
3. Cover: Neoprene
Suction hose is used with dredger for silt/gravels conveyance. It sucks up the mixture of silt and water using negative pressure. Mostly used with these hoses are the rubber flange/steel backing flange and the Double Action flange. They can be supplied in any size, and depending on application, with 100% vacuum capability and high implosion pressures. For use with gimbals and in the ladder of cutter dredgers we can equip them with small bending radius suction hoses.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||
