Multipurpose Composite Flexible Hose For Chemical Oil Industrial Fluid Transfer
Price:
10
MOQ:
1
Delivery Time:
5-8days
Brand:
Jiubei
Product Description

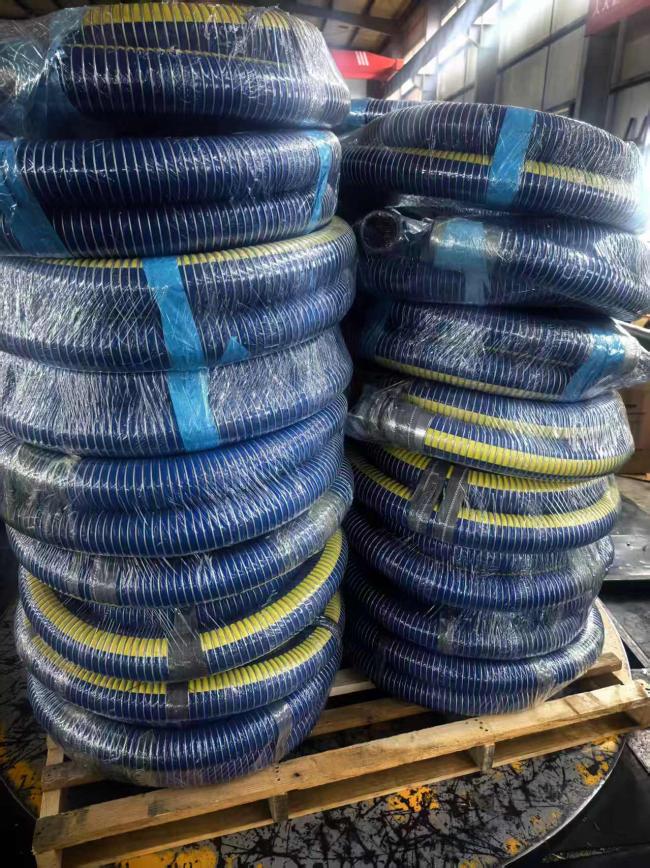

Multipurpose Composite Flexible Hose for Chemical Oil Industrial Fluid Transfer
Our Multipurpose Composite Flexible Hose is designed for safe and efficient transfer of a wide range of liquids, including chemicals, petroleum products, solvents, acids, and industrial fluids.
It is widely used in chemical plants, oil & gas terminals, tank trucks, marine operations, and industrial loading & unloading systems.
This composite hose is constructed with multiple layers of thermoplastic films, reinforced fabric plies, and an external wear-resistant helix, providing excellent flexibility, high strength, and long service life even under harsh working conditions.
Key Features
- Suitable for multiple chemicals and industrial fluids
- Excellent flexibility and bend radius, easy installation
- Lightweight design, easier handling than rubber hoses
- High resistance to corrosion, abrasion, and aging
- Anti-static option available for hazardous media
- Customizable inner liner, diameter, length, and end fittings
Typical Applications:
- Chemical and petrochemical transfer
- Oil, fuel, and lubricant loading & unloading
- Tank truck, railcar, and ship transfer systems
- Industrial fluid handling and process pipelines
Applications
Composite hoses provide essential flexible connections to compensate for vibration, movement, or misalignment in fluid transfer systems. Ideal for delivery and suction of fuels, oils, and lubricants on tank trucks, railcars, or fixed deposits.
All hoses can be manufactured according to customer working conditions, including temperature range, pressure requirements, and transferred media.
OEM and custom solutions are available.
OEM and custom solutions are available.
Technical Parameters
| I.D (MM/IN) | Max. WP. (psi/Mpa) | Blasting Pressure (psi/Mpa) | Reference Weight (kg/m) | Bending Radius (mm) |
|---|---|---|---|---|
| 25/1 | 150/1.03 | 600/4.2 | 0.9 | 100 |
| 38/1.5 | 150/1.03 | 600/4.2 | 1.5 | 110 |
| 51/2 | 150/1.03 | 600/4.2 | 1.8 | 125 |
| 65/2.5 | 150/1.03 | 600/4.2 | 2.5 | 150 |
| 76/3 | 150/1.03 | 600/4.2 | 2.3 | 200 |
| 100/4 | 150/1.03 | 600/4.2 | 9.9 | 500 |
| 150/6 | 150/1.03 | 880/6.06 | 1.2 | 100 |
| 25/1 | 220/1.516 | 880/6.06 | 2.0 | 120 |
| 38/1.5 | 220/1.516 | 880/6.06 | 2.2 | 180 |
| 51/2 | 220/1.516 | 880/6.06 | 2.5 | 260 |
| 65/2.5 | 220/1.516 | 880/6.06 | 3.0 | 260 |
| 76/3 | 220/1.516 | 880/6.06 | 5.0 | 400 |
| 100/4 | 220/1.516 | 880/6.06 | 14 | 600 |
| 152/6 | 220/1.516 | 880/6.06 | 22 | 800 |
| 202/8 | 220/1.516 | 880/6.06 | 27 | 1100 |
| 252/10 | 220/1.516 | 880/6.06 |
