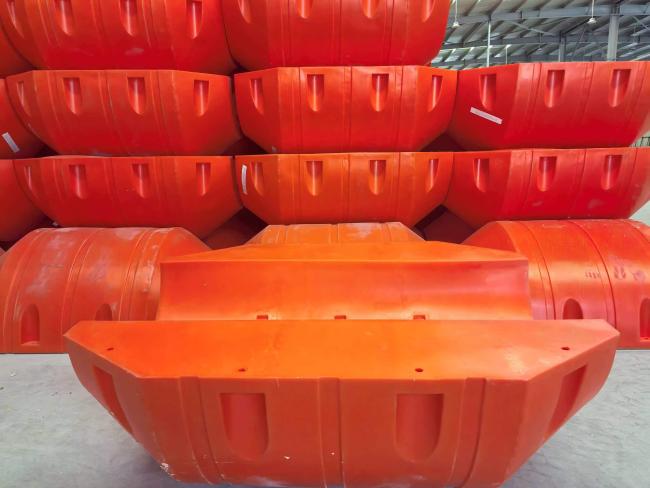

UV Resistant high density foam filling impact resistant HDPE dredging pipe floater
Our PE pipe floats are manufactured from premium HDPE raw materials with integrated molding technology. With superior waterproof, anti-corrosion and weather-resistant properties, they can withstand harsh conditions such as strong sunlight, salt water and extreme temperature changes. The solid and seamless structure provides stable buoyancy, high compression resistance and long service life. Easy to assemble and fix on pipes, they effectively support and suspend pipelines on the water surface. Widely applicable in sewage discharge pipelines, marine water supply systems, fish farm floating facilities, lake and river regulation projects. Eco-friendly, non-toxic and crack-resistant, ideal for long-distance floating pipe systems.
|
No. |
Structure Name |
Material |
|
1 |
Hull |
Polyethylene |
|
2 |
Polyurethane hard Foam Core |
Closed-cell hard foam |
|
3 |
Bolts&Nuts |
Galvanized Steel |
Polyethylene Hull Mechanical Strength
|
No. |
Item |
Performance |
|
|
1 |
Tensile Strength Mpa≥ |
12 |
|
|
2 |
Elongation at break %≥ |
10 |
|
|
3 |
Impact Strength KJ/㎡ |
31 |
|
|
4 |
Bending Strength Mpa≥ |
15.7 |
|
|
5 |
Weather Resistance (total 3.5GJ/㎡ aging capacity) |
Elongation at break %≥ |
10 |
|
6 |
OIT 200℃ mm≥ |
10 |
|
