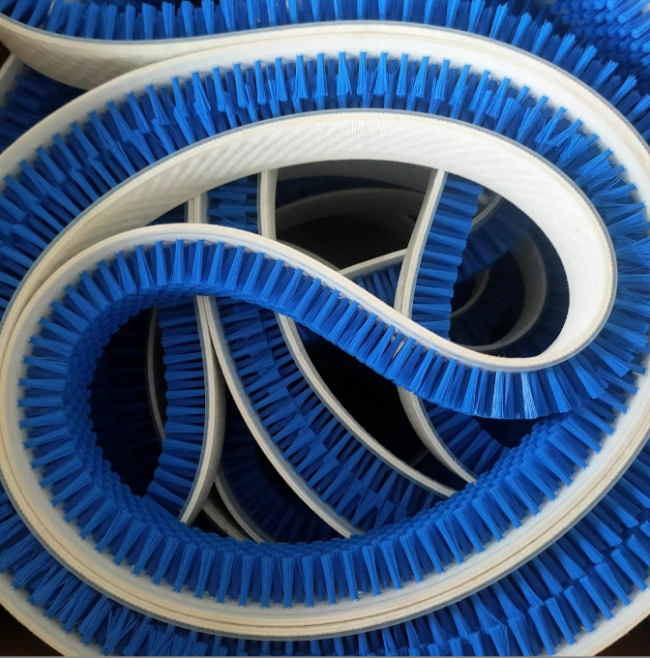

Industrial Custom Belt Brushes Nylon/PP Bristle Cleaning And Dust Removal Conveyor Belt Brush For Transmission And Transportation

Conveyor belt brush

Belt brushes are particularly suitable for dry cleaning and conveying delicate parts. Compared to the progression of the product, lateral brushing ensures a high degree of micro-machining and enables higher processing speeds. They are an ideal solution when space is limited; they are available in both open and unlimited versions.

Belt brushes: They ensure the safe transport of heavy or precision manufactured goods; they excel at cleaning, and due to their extended surface area, they achieve effectiveness even under critical conditions with gentle pressure.

Toothed belt brushes: They share the same qualitative standards and applications as belt brushes and V-belt brushes, but with more toothed features, allowing for synchronization due to the belt's inherent construction. A variety of widths and filler densities are available to suit your application.

Common Types and Categories

Based on installation location and function, they are mainly divided into the following categories:

1.Conveyor Belt Scraper Brush

• Location: Usually installed on the return section (bottom) of the conveyor belt, close to the inner surface of the conveyor belt.
• Function: Primarily removes debris and shavings adhering to the back of the conveyor belt, preventing their accumulation and damage to rollers and idlers, thus extending equipment life.
• Characteristics: Mostly strip-shaped brushes; the bristles are usually relatively stiff and wear-resistant.

2.Conveyor Belt Surface Cleaning Brush

• Location: Installed above or below the conveyor belt's carrying surface.
• Function: Cleans the conveyor belt surface that comes into contact with products, ensuring hygiene and preventing contamination of the next product.
• Features: Typically a roller brush; bristle material is selected based on cleaning requirements.

3.Product Distributor/Guide Brush

• Location: Installed on either side of the conveyor belt or at the distribution inlet.
• Function: Gently guides products to one side or keeps them in the center of the conveyor belt by rotating.
• Features: Bristles are typically soft and flexible to avoid scratching products.

Examples of Application Industries

• Food and Beverage: Cleaning biscuit crumbs and breadcrumbs; brushing off dirt from fruits and vegetables; applying sauces.
• Express Logistics: Sweeping dust and debris from sorting lines to keep packages clean.
• Wood Processing: Removing sawdust from wood planks and performing preliminary sanding.
• Mining/Metallurgy: Removing adhering substances from conveyor belts carrying ore and coal.
• Textile Industry: Brushing fabric fibers and removing surface lint.
• Packaging Industry: Cleaning bottles and cans before filling and labeling.
