Carbon Steel Pipe Q345B ST52 Cold Drawn Honed Cylinder Steel Tube Carbon Pipe
Carbon Steel Pipe Q345B ST52 Cold Drawn Honed Cylinder Steel Tube Carbon Pipe
Product description
Honing the cylinder pipe
The surface quality is good, the surface is cross mesh, which is conducive to the storage of lubricating oil and the maintenance of oil film. It has a higher surface support ratio (the actual contact area of the hole and the shaft and the ratio of the matching area between the two), so it can bear larger load and wear resistance, thus improving the service life of the product.
Product parameter
|
Product Name
|
Honing Tube
|
|
Standard
|
DIN2391, EN10305, ASTM A519, GB/T 3639-200
|
|
Material
|
20#, 45#, Q345 27simn 304 316 321 310 2205
|
|
Size
|
OD: 5-1500mm WT: 0.5-50 Length: 3-9m
|
|
Test
|
Tensile Test, Hydraulic Test, Eddy Current Test etc
|
|
Application
|
hydraulic cylinder, swivel crane, injection machine and so on
|
|
Conservation
|
anti rust oiled inside and outside surface, plastic caps in both ends
|
|
Package
|
bundle with steel strip and knitting strip, or wooden case
|
| Steel Grade | C | SI | Mn | P | S | Cr | Ni | Cu |
| 20# | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 | 0.250 | 0.250 | / |
| 45# | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 0.035 | 0.035 | 0.250 | 0.300 | / |
| Q345B | ≤0.2 | ≤0.5 | 1.00-1.60 | 0.030 | 0.030 | 0.300 | 0.250 | 0.08 |
| Q345D | ≤0.2 | ≤0.5 | 1.00-1.60 | 0.030 | 0.030 | 0.250 | 0.250 | 0.15 |
| 25Mn | 0.22-0.29 | 0.17-0.37 | 0.70-1.00 | 0.035 | 0.035 | / | / | / |
| 27SiMn | 0.22-0.32 | 1.10-1.40 | 1.10-1.40 | 0.035 | 0.035 | 0.300 | 0.300 | / |
| E355 | ≤0.2 | ≤0.55 | ≤1.6 | 0.025 | 0.025 | 0.250 | 0.250 | / |
| SAE1026 | 0.22-0.28 | 0.15-0.35 | 0.60-0.90 | 0.040 | 0.050 | / | / | / |
| Steel Grade | Rm Mpa | ReH Mpa | Elonggation | cold finished Rm Mpa | cold finished Elonggation |
| 20# | ≥520 | ≥375 | ≥15 | ≥550 | ≥8 |
| 45# | ≥600 | ≥520 | ≥10 | ≥640 | ≥5 |
| 16Mn(Q345B /D) | ≥600 | ≥520 | ≥14 | ≥640 | ≥5 |
| 25Mn | ≥600 | ≥510 | ≥15 | ≥640 | ≥5 |
| 27SiMn | ≥760 | ≥610 | ≥10 | ≥800 | ≥5 |
| St45 | ≥520 | ≥375 | ≥15 | ≥550 | ≥5 |
| E355(st52) | ≥600 | ≥520 | ≥14 | ≥640 | ≥5 |
| SAE1026 | ≥600 | ≥510 | ≥15 | ≥640 | ≥5 |
| Working method | range | ID | H8 | H9 | H10 |
| cold drawn | 25-250 | 30-50 | +0.0390 | +0.0620 | +0.1000 |
| cold rolling | 25-150 | 50-80 | +0.0460 | +0.0740 | +0.1200 |
| cold drawn-honed | 40-250 | 80-120 | +0.0540 | +0.0870 | +0.1400 |
| cold drawn-SRB | 50-250 | 120-180 | +0.0630 | +0.1000 | +0.1600 |
| cold drawn -polished | 40-250 | 180-250 | +0.0720 | +0.1150 | +0.1850 |
| cold drawn-polish-SRB | 50-250 | as required | as required | as required | as required |
Product advantage
Cylinder pipe features
1. Smaller outside diameter.
2. Cold drawing products have high precision and good surface quality.
3. The cross area of the steel pipe is more complex.
4. The steel pipe has better performance and the metal is relatively dense

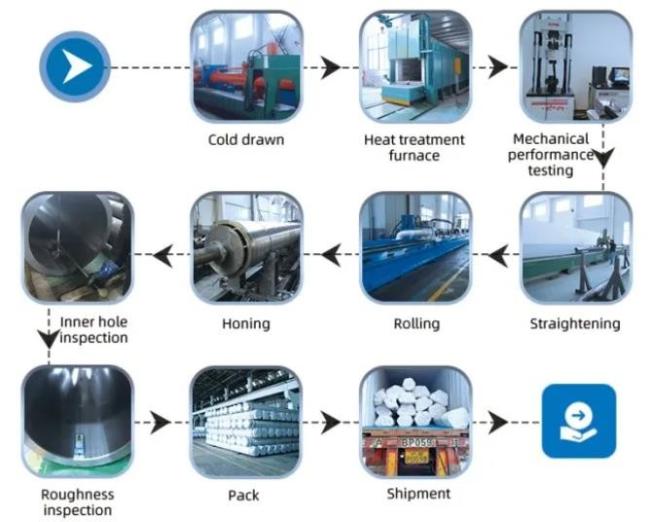

Processing flow
Product application
Honed tubes are widely used in hydraulic cylinders, cylinders, hydraulic machinery, engineering machinery, petroleum machinery, agricultural machinery, filling machinery, mining machinery and other fields.
.
FAQ
Q1.What is your terms of payment?
Q2: What is the terms of trade?
A: EXW, FOB, CIF, CFR.
Q3: What is the terms of packing?
A: Generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers'
requirement.
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after received your deposit. For productiong period, it usually takes about 15-30 days afer receiving the deposit.
Q5: Could you produce according to the samples?
A: Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
