Galvanized Aluzinc Steel Coil Galvalume Hot Dipped DX51D Z275 Z350
DX51D Z275 Z350 Hot Dipped Galvanized Steel Coil Galvalume Steel Coil Aluzinc AZ150 Steel Galvanized Sheet
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
| Material | SGCC/ CGCC/ DX51D+Z |
Thickness(mm) |
Hot Rolled Thickness:0.12 ~ 3.00 mm Cold Rolled Thickness:1.20 ~ 4.60 mm |
| Width(mm) | 600mm-2200mm, As Your RequestRegular width 1000mm, 1250mm, 1500mm |
| Tolerance | Thickness: ±0.01 mmWidth: ±2 mm |
| Coil ID | 508-610mm or as per your request |
| Coil Weight | 3~5 Tons or as per your request |
| Zinc Coating | 30g - 275g / m2 |
| Spangle | Big spangle,Regular spangle,Mini spangle,Zero spangle |
| Surface Treatment | Coated,Galvanized,Clean, Blasting and Painting according to customer requirement |

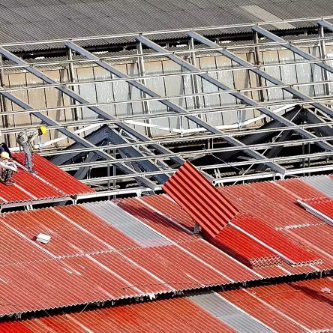

CGI is lightweight and easily transported. It was and still is widely used especially in rural and military buildings such as sheds and water tanks. Its unique properties were used in the development of countries like Australia from the 1840s, and it is still helping developing countries today.
Corrugated iron is equivalent to tin roof.
Hot-dip galvanization is a form of galvanization. It is the process of coating iron and steel with zinc, which alloys with the surface of the base metal when immersing the metal in a bath of molten zinc at a temperature of around 840 °F (449 °C).
Galvanized steel is widely used in applications where corrosion resistance is needed without the cost of stainless steel, and is considered superior in terms of cost and life-cycle. It can be identified by the crystallization patterning on the surface.
Packing&Delivery
1) 20ft container: 26tons (Can load 5.8M Max)
2) 40ft container: 26tons (Can load 11.8M Max)
3) more than 100tons:can pack by bulk vessel
4) as your requirement.
