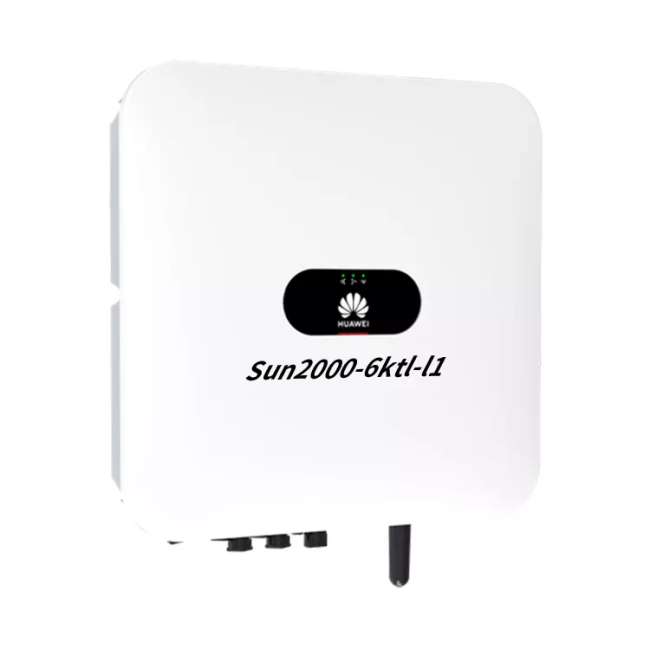

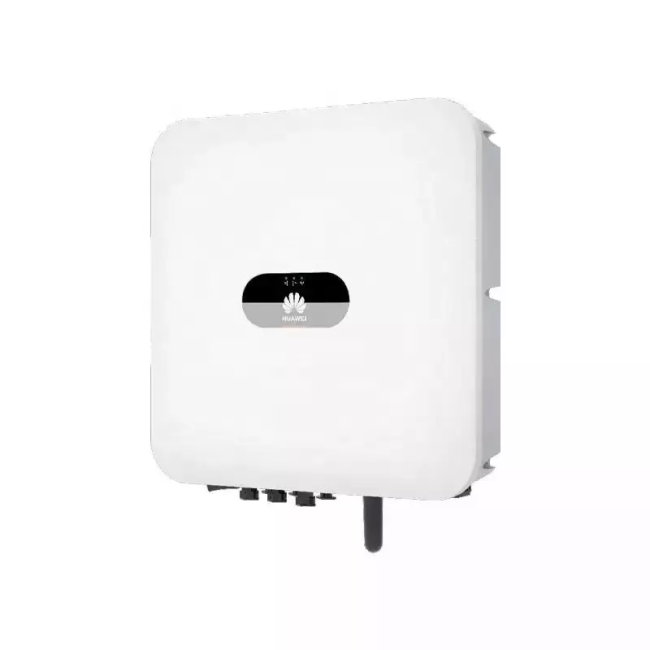

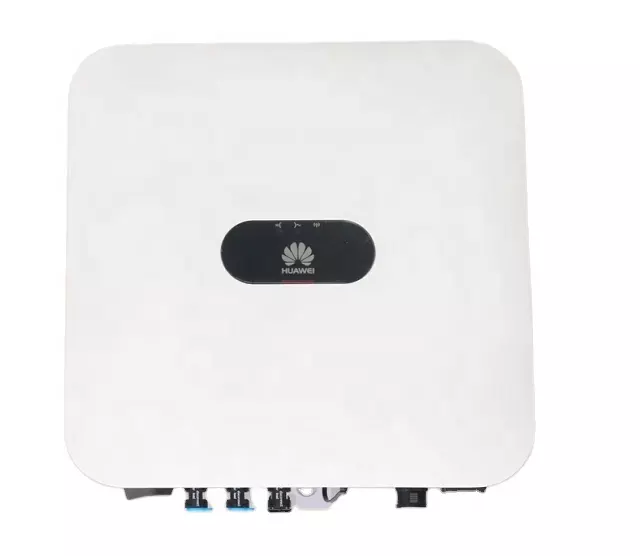

Huawei 5KW SUN2000-5KTL-L1 with Single phase SUN2000-3/4/5/6KTL-L1 Grid Tied PV inverter 5000w On grid solar inverter
Price:
$789.00/pieces 1-4 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Huawei
Product Description
Product Description

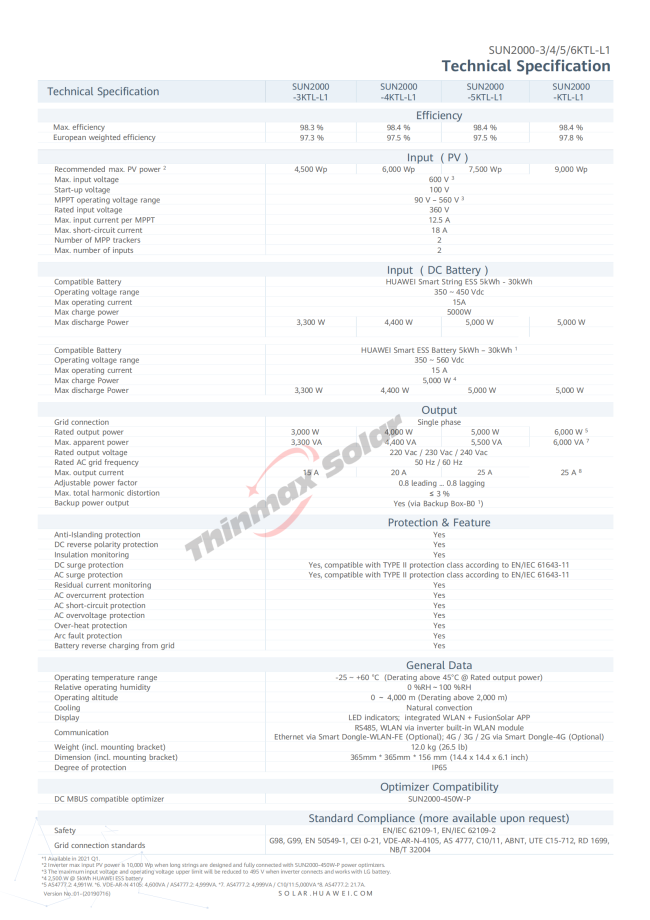

Specification
Efficiency | ||||||||
Maximum efficiency | 98.3 % | 98.4 % | 98.4 % | 98.4 % | ||||
The input | ||||||||
Recommended max. PV power 1 | 4,500 Wp | 6,000Wp | 7,500 Wp | 9,000Wp | ||||
Max. input voltage | 600 V 3 | |||||||
Start-up voltage | 100 V | |||||||
MPPT operating voltage range | 360 V | |||||||
Max. input current per MPPT | 12.5 A | |||||||
Max. short-circuit current | 18 A | |||||||
Number of MPP trackers | 2 | |||||||
Max. number of inputs | 2 | |||||||
Input (DC Battery) | ||||||||
Compatible Battery | HUAWEI Smart ESS Battery 5kWh – 30kWh 1 | |||||||
Operating voltage range | 350 ~ 560 Vdc | |||||||
Max operating current | 15 A | |||||||
Max charge power | 5,000 W | |||||||
Max discharge Power | 3,300 W | 4,400 W | 5,000 W | 5,000 W | ||||
The output | ||||||||
Grid connection | Single phase | |||||||
Rated output | 3,000 W | 4,000W | 4,991 W | 6,000W | ||||
Maximum apparent power | 3,300 VA | 4,400VA | 4,999 VA | 6,000VA | ||||
Rated output voltage | 220 Vac / 230 Vac / 240 Vac | |||||||
Maximum active power | 5,000W | 6,000W | 8,000W | 10,000W | ||||
Output voltage frequency | 50HZ/60HZ | |||||||
Maximum output current | 15 A | 20 A | 21.7 A | 27.3 A | ||||
Adjustable power facto | 0.8 leading ... 0.8 lagging | |||||||
Max. total harmonic distortion | <3% | |||||||
Backup power output | Yes (via Backup Box-5000 1) | |||||||
Features & Protections | ||||||||
Anti-Islanding protection | Yes | |||||||
DC reverse polarity protection | Yes | |||||||
Insulation monitoring | Yes | |||||||
DC surge protection | Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 | |||||||
AC surge protection | Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 | |||||||
Residual current monitoring | Yes | |||||||
AC overcurrent protection | Yes | |||||||
AC short-circuit protection | Yes | |||||||
AC overvoltage protection | Yes | |||||||
Over-heat protection | Yes | |||||||
Arc fault protection | Yes | |||||||
Battery reverse charging from grid | Yes | |||||||
Battery reverse charging from grid | Yes | |||||||
Nighttime Power Consumption | Yes | |||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
With more than 10 years experience of dealing with solar system. Thinmax provides high quality pre-sale and after-sale service for our customers. We also have factory and professional technicians so we can provide customized product services for customers too.
FAQ
Q1: What is the delivery time?
A1: It's according to the model. We will ship the items within 3 days if the items in stock.
Q2: What ways of payment do you accept.
A2: We can accept LC, Paypal, Credit card, etc.
Q3: Will you provide shipping sevice?
A3: Yes. We will choose the best shipping way and shipping company for the customers according to the demands.
Q3: What if we have problems after sale?
A4: Don't worry. We have professional technicians ready for our customers who can take care of the problems.
Q5: What is the minimum quantity?
A5: We can send a sample to you. If you are satisfied with our products and service. Please place larger quantity to us.
Q6: Are the inverters original?
A6: Yes. Of course. If it's not. We will return all money back to you.
