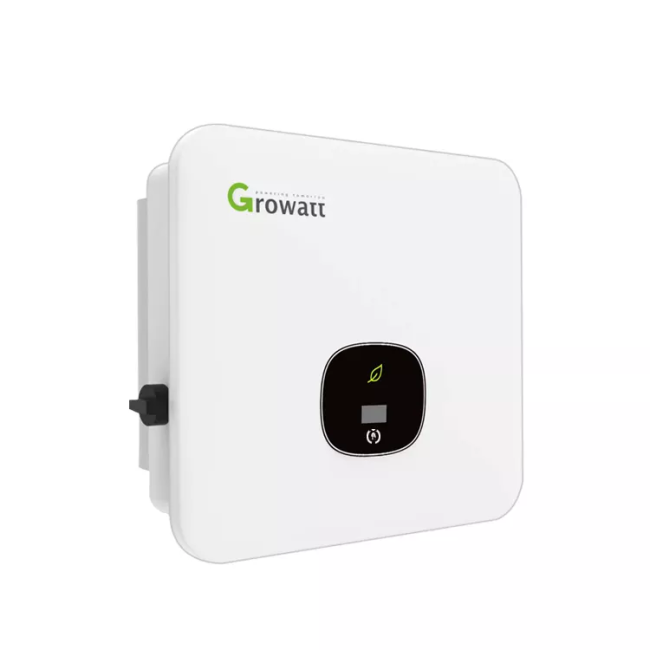

Growatt MOD 6000TL3-X 6KW Three phase on grid PV Inverter Grid tie Renewable Energy solar inverter
Price:
$742.00/pieces 1-4 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Growatt
Product Description
Product Description
Specification

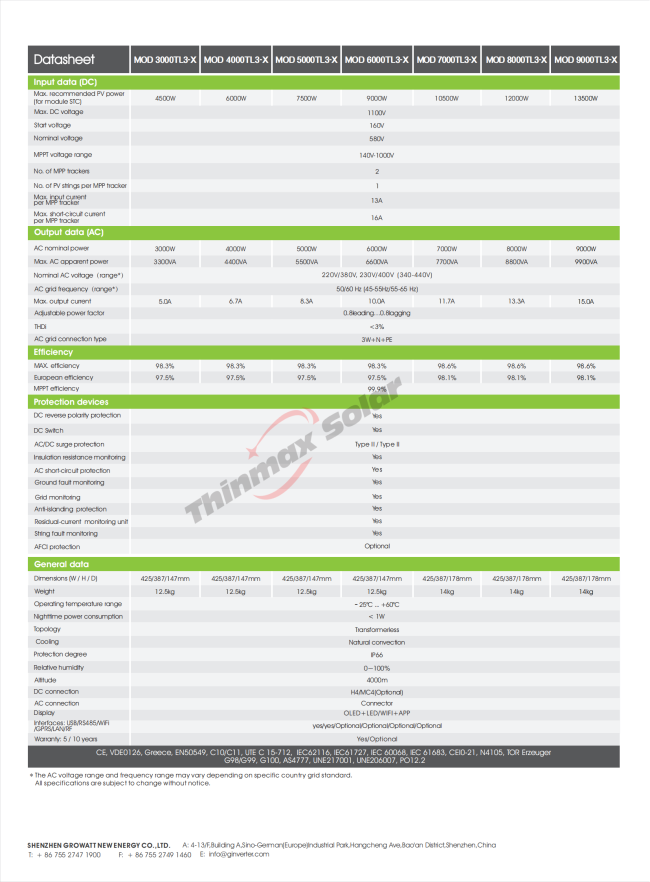

Datasheet | MOD 3000TL3-X | MOD 5000TL3-X | MOD 8000TL3-X | MOD 9000TL3-X | ||||
Input data (DC) | ||||||||
Max. recommended PV power (for module STC) | 4500W | 7500W | 12000W | 13500W | ||||
Max. DC voltage | 1100V | |||||||
Start voltage | 160V | |||||||
Nominal voltage | 580V | |||||||
MPPT voltage range | 140V-1000V | |||||||
No. of PV strings per MPP tracker | 1 | |||||||
Max. short-circuit current per MPP tracker | 16A | |||||||
Output data (AC) | ||||||||
AC nominal power | 3000W | 5000W | 8000W | 9000W | ||||
Max. AC apparent power | 3300VA | 5500VA | 8800VA | 9900VA | ||||
Nominal AC voltage（range*） | 220V/380V, 230V/400V (340-440V) | |||||||
AC grid frequency（range*） | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||
Max. output current | 5.0A | 8.3A | 13.3A | 15.0A | ||||
AC grid connection type | 3W+N+PE | |||||||
Efficiency | ||||||||
MAX. efficiency | 98.3% | 98.3% | 98.6% | 98.6% | ||||
European efficiency | 97.5% | 97.5% | 98.1% | 98.1% | ||||
MPPT efficiency | 99.9% | |||||||
General data | ||||||||
Dimensions (W / H / D) | 425/387/147mm | 425/387/178mm | ||||||
Weight | 12.5kg | 14kg | ||||||
DC connection | H4/MC4(Optional) | |||||||
AC connection | Connector | |||||||
Display | OLED+LED/WIFI+APP | |||||||
Warranty: 5 / 10 years | Yes/Optional | |||||||
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, TOR Erzeuger G98/G99, G100, AS4777, UNE217001, UNE206007, PO12.2 | ||||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
With more than 10 years experience of dealing with solar system. Thinmax provides high quality pre-sale and after-sale service for our customers. We also have factory and professional technicians so we can provide customized product services for customers too.
FAQ
Q1: What is the delivery time?
A1: It's according to the model. We will ship the items within 3 days if the items in stock.
Q2: What ways of payment do you accept.
A2: We can accept LC, Paypal, Credit card, etc.
Q3: Will you provide shipping sevice?
A3: Yes. We will choose the best shipping way and shipping company for the customers according to the demands.
Q3: What if we have problems after sale?
A4: Don't worry. We have professional technicians ready for our customers who can take care of the problems.
Q5: What is the minimum quantity?
A5: We can send a sample to you. If you are satisfied with our products and service. Please place larger quantity to us.
Q6: Are the inverters original?
A6: Yes. Of course. If it's not. We will return all money back to you.
