5.5KW On Off Grid Hybrid Solar Inverter Pure Sine Wave High Frequency
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
5-8 working days
Brand:
Purple Horn
Product Description

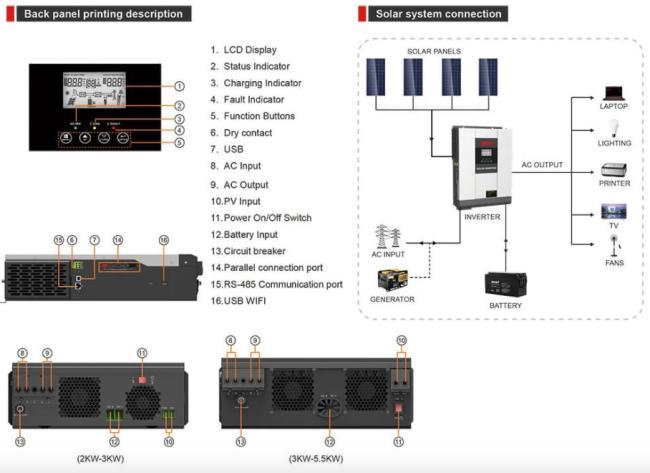

High Frequency On/Off Grid Hybrid Solar Inverter
PH1800 Plus Series (2-5.5KW)
PH1800 Plus series hybrid solar inverter, it can realize self-consumption and feed-in to the grid from solar energy with best solution according to your setting. During the daytime solar power can run your home appliances and if there is extra solar power it will feed-in to the grid or you can choose to save them on the battery to backup when power failure or nighttime.
Features:
- Pure sine wave output
- Self-consumption and Feed-in to the grid
- Programmable supply priority for PV, Battery or Grid
- User-adjustable battery charging current suits different types of batteries
- Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
- Monitoring software & Wifi Kit for real-time status display and control
- Parallel operation up to 3 units
| MODEL | PH18-2024 Plus | PH18-3024 Plus | PH18-3048 Plus | PH18-4048 Plus | PH18-5048 Plus | PH18-5548 Plus |
|---|---|---|---|---|---|---|
| Nominal Battery System Voltage | 24VDC | 48VDC | ||||
| INVERTER OUTPUT | ||||||
| Rated Power | 2000W | 3000W | 3000W | 4000W | 5000W | 5500W |
| Surge Power | 4000W | 6000W | 6000W | 8000W | 10000W | 11000W |
| Waveform | Pure Sine Wave | |||||
| AC Voltage Regulation (Batt.Mode) | 220VAC~240VAC(setting) | |||||
| Electric Current | 8.7A | 13A | 17.4A | 21.7A | 23.9A | |
| Inverter Efficiency(Peak) | 93% | |||||
| Transfer Time | 10ms(UPS /VDE4105 ) 20ms( APL) | |||||
| AC INPUT | ||||||
| Voltage | 230VAC | |||||
| Selectable Voltage Range | 170~280VAC(UPS), 90~280VAC(APL), 184~253VAC(VDE4105) | |||||
| Frequency Range | 50Hz / 60Hz (Auto Sensing) | |||||
| BATTERY | ||||||
| Normal Voltage | 24VDC | 48VDC | ||||
| Floating Charge Voltage | 27.4VDC | 54.8VDC | ||||
| Overcharge Protection | 30VDC | 60VDC | ||||
| SOLAR CHARGER & AC CHARGER | ||||||
| Maximum PV Array Open Circuit Voltage | 145VDC | |||||
| PV Array MPPT Voltage Range | 30~130VDC | 64~130VDC | ||||
| Standby Power Consumption | 2W | |||||
| Maximum PV Array Power | 2000W | 4000W | ||||
| Maximum Solar Charge Current | 80A | |||||
| Maximum Efficiency | 98% | |||||
| Maximum AC Charge Current | 60A | |||||
| Maximum Charge Current | 140A | |||||
| MECHANICAL SPECIFICATIONS | ||||||
| Machine Dimensions (W*H*D) | 272*355*100 mm | 297.5*468*125mm | ||||
| Net Weight(KG) | 7.4 | 10 | ||||
| Package Dimensions(W*H*D) | 570*405*246mm | 610*405*241mm | ||||
| Gross Weight(KG) | 10 | 12.6 | ||||
| OTHER | ||||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||||
| Operating Temperature | 0°C ~55°C | |||||
| Storage Temperature | -15°C ~60°C | |||||
