Purple Horn-30072-210, 210 Mono Flexible Solar Panel 300w 126cells 2000*850*2.5mm
Price:
Negotiable
MOQ:
Negotiatble
Delivery Time:
20days
Brand:
Purple Horn
Product Description
Mono 210 Purple Horn-30072-210,210 Mono Flexible Solar Panel
Optional Surface Material

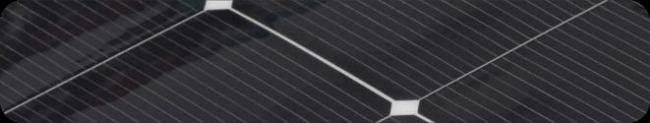

*Surface ETFE

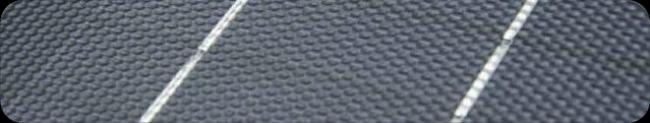

*Surface Frosted PET

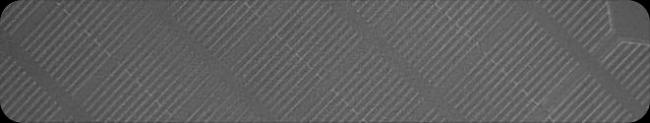

*Surface Clear PET
| Liectrical Parameters at(STC) | |
| Power(W) | 300W |
| Module Efficiency(%) | 17.64% |
| Voltage at Pmax(Vmp) | 72.00V |
| Current at Pmax(Imp) | 4.10A |
| Open Circuit Voltage(Voc) | 86.00V |
| Short Circuit Current(lsc) | 4.65A |
| Power Tolerance(W) | ±3% |
| Mechanical Parameters | |
| Solar Cell(Type/Size) | Mono(210mm) |
| Solar Cells Number | 126Pcs(9*14) |
| Dimension | 2000*850*2.5mm |
| Weight | 2KG |
| Cable | 4mm2/300mm |
| Connector | Original MC4/Compatible MC4 |
| Waterproof junction box | IP65/IP67 |
Characteristics
