MPC4 MACHINERY PROTECTION CARD 200-510-071-113

Price Negotiable

Price: $1000

MOQ: 1pc

Delivery Time: 5-7days

Brand: PROTECTION CARD

Product Description

MPC4 machinery protection card

Product Details:

Versions of the MPC4 card are available with a conformal coating (“varnish”) applied to the circuitry of the card for additional

environmental protection against chemicals, dust, moisture and temperature extremes.

In 2017, the MPC4 / IOC4T machinery protection card pairs were improved to (1) be RoHS compliant and (2) provide a reduced

buffered dynamic signal output impedance, which required a redesign of the underlying buffered “raw” dynamic signal output

circuitry. Accordingly, the different versions of the MPC4/IOC4T machinery protection card pairs in use are:

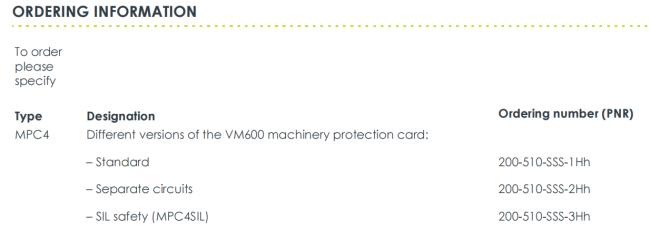

Later versions of the MPC4 (PNRs 200-510-SSS-115, 200-510-SSS-214 and 200-510-SSS-313 or later) and IOC4T (PNR 200-560-000-114 and 200-560-000-212 or later), which are RoHS compliant and have an output impedance of 50 Ω.
Earlier versions of the IOC4T (PNRs 200-510-SSS-114, 200-510-SSS-213 and 200-510-SSS-312 or earlier) and IOC4T (PNR 200-560-000-113 and 200-560-000-211 or earlier), which are not RoHS compliant and have an output impedance of 2000 Ω. “SSS” represents the firmware (embedded software) version and “Hh” the hardware version. “H” increments are for major modifications that can affect product interchangeability. “h” increments are for minor modifications that have no effect on interchangeability.
