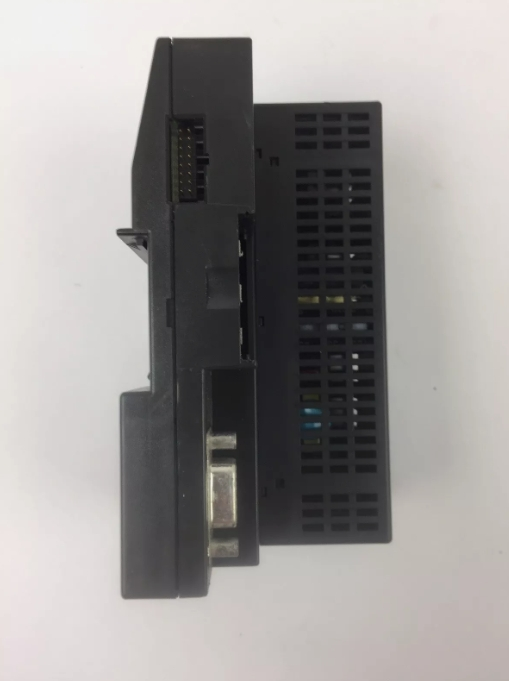

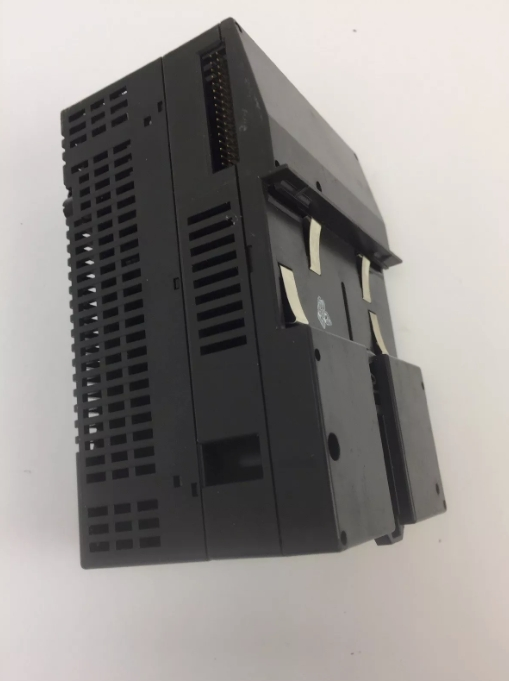

IC200PWR001 GE 24VDC Power Supply

IC200PWR001 GE 24VDC Power Supply​

IC200PWR001.pdf

Product Details:

24 V DC Power Supply IC200PWR001 provides backplane power for CPU, NIU, and I/O modules. When mounted on the CPU or NIU module, it

serves as the main power supply for the station and supplies up to 1.5 A output current through 3.3 V and 5 V outputs, with up to 0.25 A on the 3.3

V output. This is ample power for most installations. Refer to Appendix C for module backplane current consumption.

When mounted on a Power Supply Booster Carrier, IC200PWR001 can also be used as a supplemental power supply. Refer to chapter 4, the

section Power Supply Booster Carrier.
