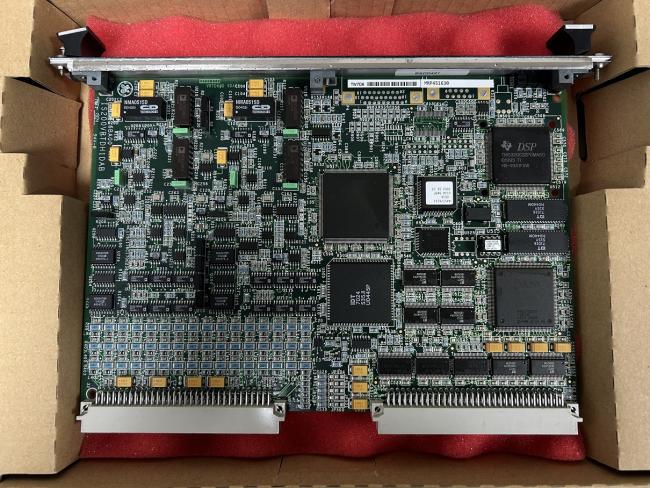

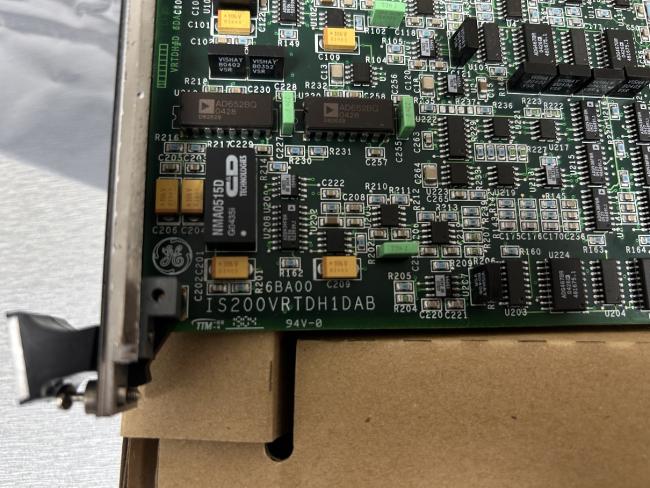

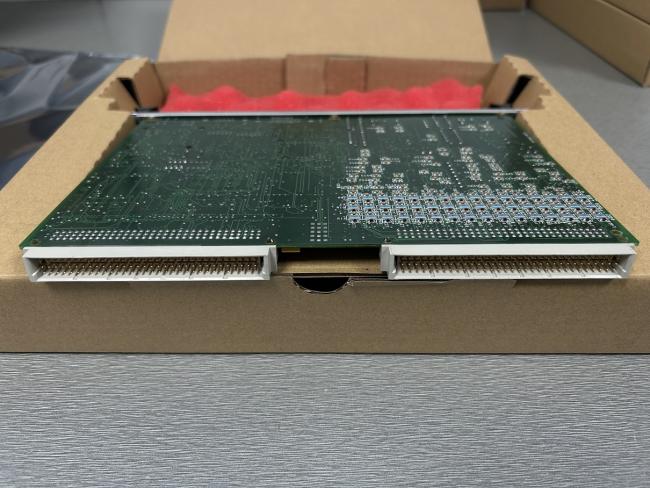

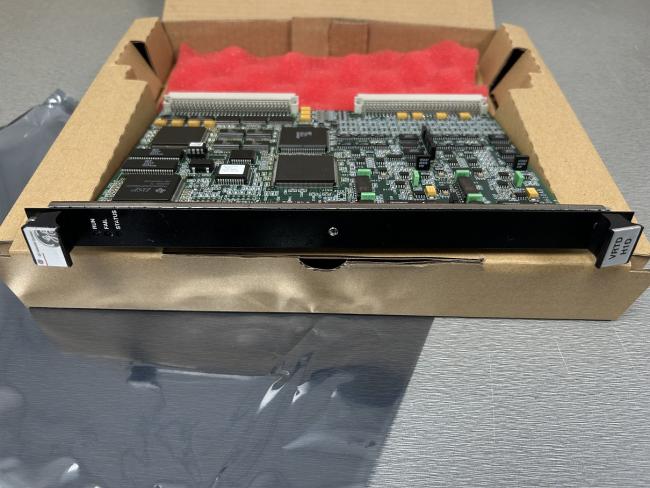

IS200VRTDH1DAB GE Resistance Temperature Device

Product Details:

Part No.: IS200VRTDH1DAB
Number of channels: 16 channels
Span: 0.3532 to 4.054 V
Common mode voltage range: 5 V
Maximum lead resistance: 15 ohm maximum
Fast scan: 40 ms (25 Hz)
Power consumption: Less than 12 W
Product Type: Resistance Temperature Device
Series: Mark VI

IS200VRTDH1DAB is a resistance temperature device developed by GE. It is a part of the Mark VI control system. The RTD processor board (VRTD) and its associated terminal boards form an integrated system for accurate temperature sensing and monitoring. The precise wiring, use of specialized cables, and collaborative processing ensure reliable temperature data collection and transmission within the broader control system.
